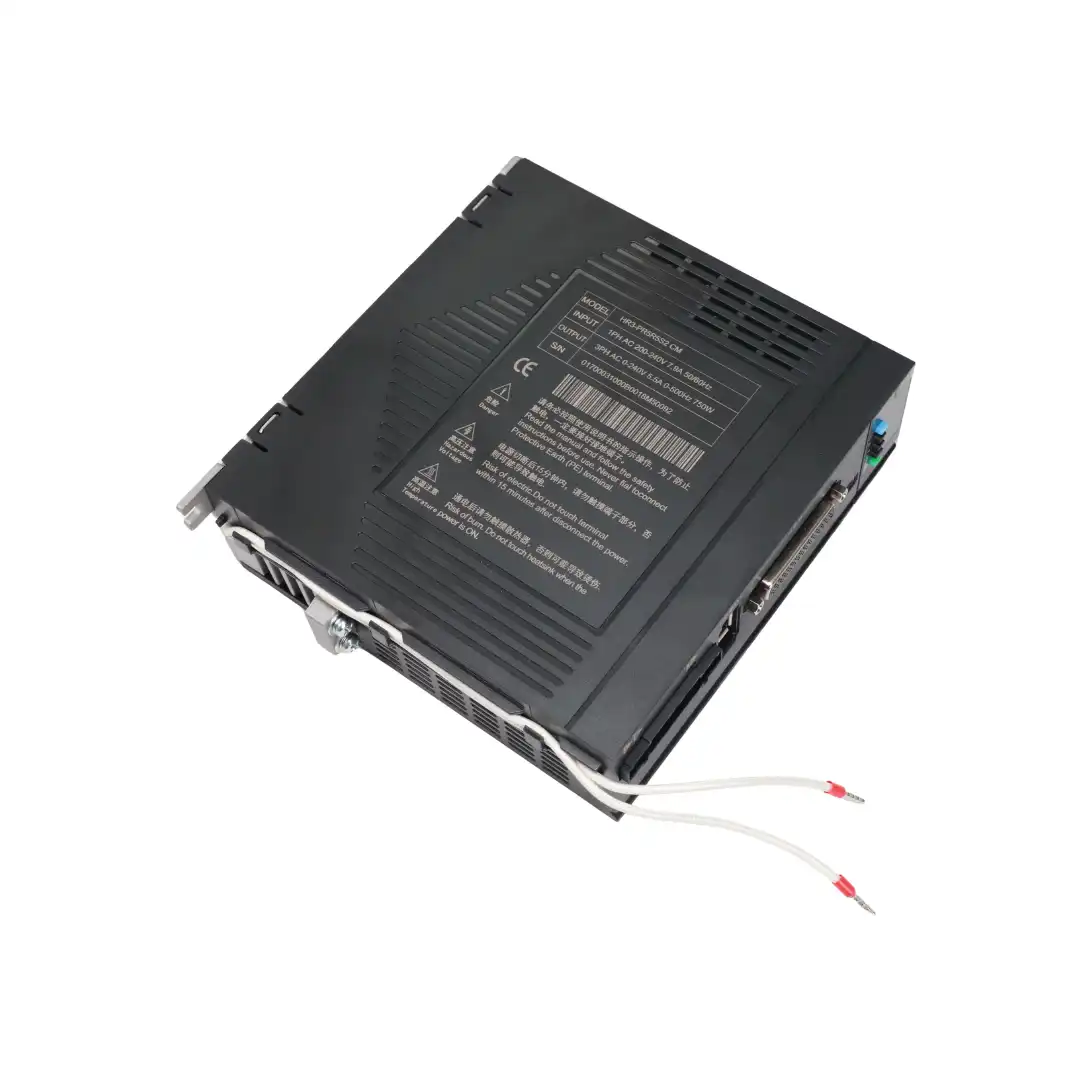

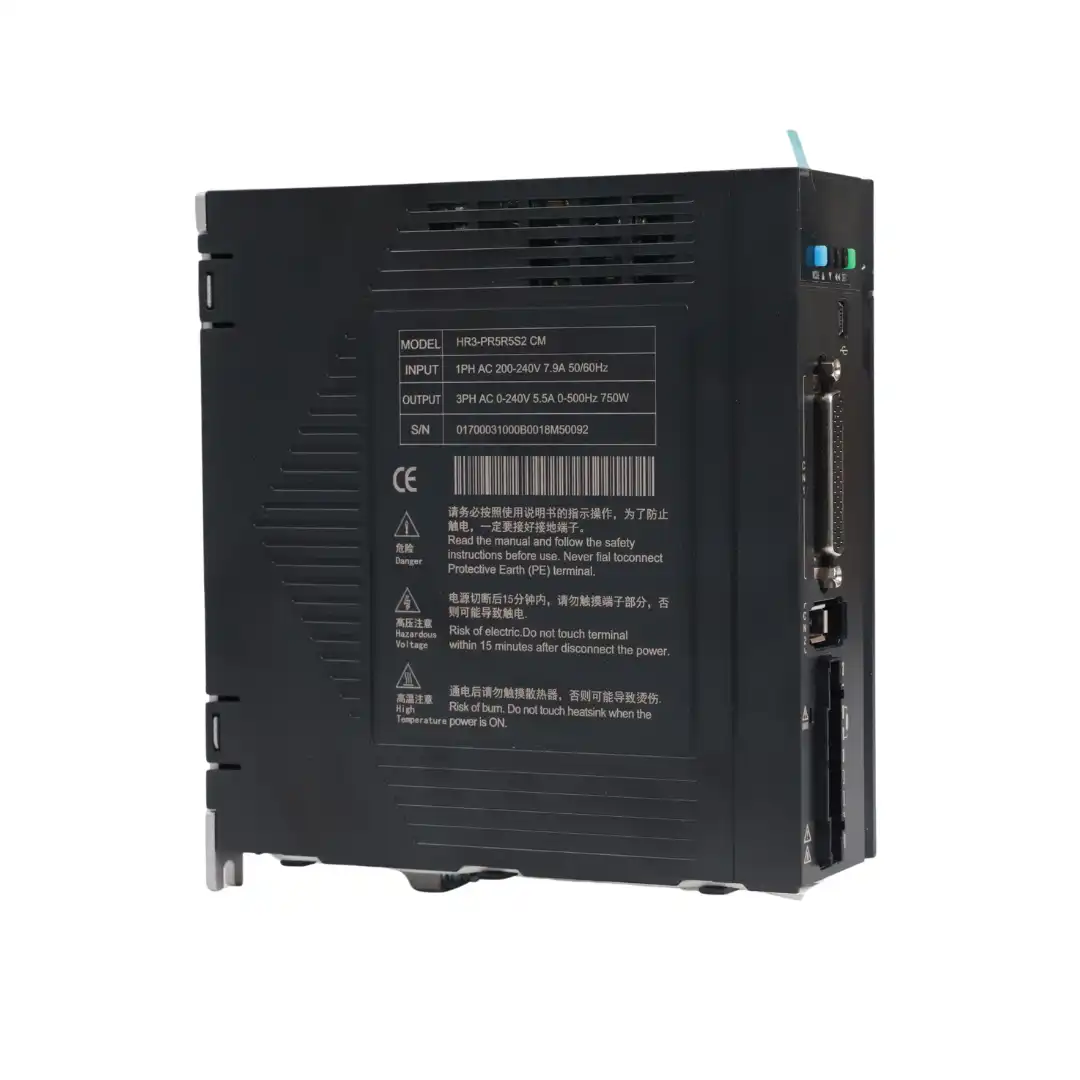

HR3-PR5R5 S2 – AC Servo Driver
HR3-PR5R5 S2 – AC Servo Driver - Image 2
HR3-PR5R5 S2 – AC Servo Driver - Image 3
HR3-PR5R5 S2 – AC Servo Driver - Image 4

HR3-PR5R5 S2 – AC Servo Driver

HR3-PR5R5 S2 AC Servo Driver | AC 200V-240V | 5.5A Continuous | 750W

Category: Tags:, , , , , , , , , , , , , , Brand:

Description

HR3-PR5R5 S2 is a high-performance AC servo driver from the HR3-PR series designed for precise industrial motion control applications. It supports pulse, analog, and RS485 control methods and is compatible with rotary servo motors for accurate position, speed, and torque control. This model is rated at 750W capacity and delivers 5.5A continuous output current with maximum output current up to 16.9A for dynamic load handling. It operates on AC 200V to 240V single-phase supply and ensures smooth, stable servo performance. The driver includes an optional built-in regenerative resistor, making it suitable for high-speed and braking applications.

Application:

  • CNC Machine Manufacturers
  • Automation Equipment Manufacturers
  • Packaging Machinery Industry
  • Robotics and Motion Control Systems
  • Printing and Labelling Machines
  • Textile Machinery Industry
Product Specification
Parameter Specification
Model HR3-PR5R5 S2
Type AC Servo Driver
Series HR3-PR Series
Product Category Pulse / Analog / RS485
Motor Type Supported Rotary Servo Motor
Rated Power 750 W
Continuous Output Current 5.5 Arms
Maximum Output Current 16.9 Arms
Continuous Input Current 7.9 Arms
Input Power Supply Single Phase AC200V to 240V
Input Voltage Tolerance -10% to +10%
Frequency 50/60 Hz
Regenerative Resistor Optional 50Ω / 50W (Built-in)
Control Mode Position / Speed / Torque Control
Product Downloads
Product Catalogue
User Manual
