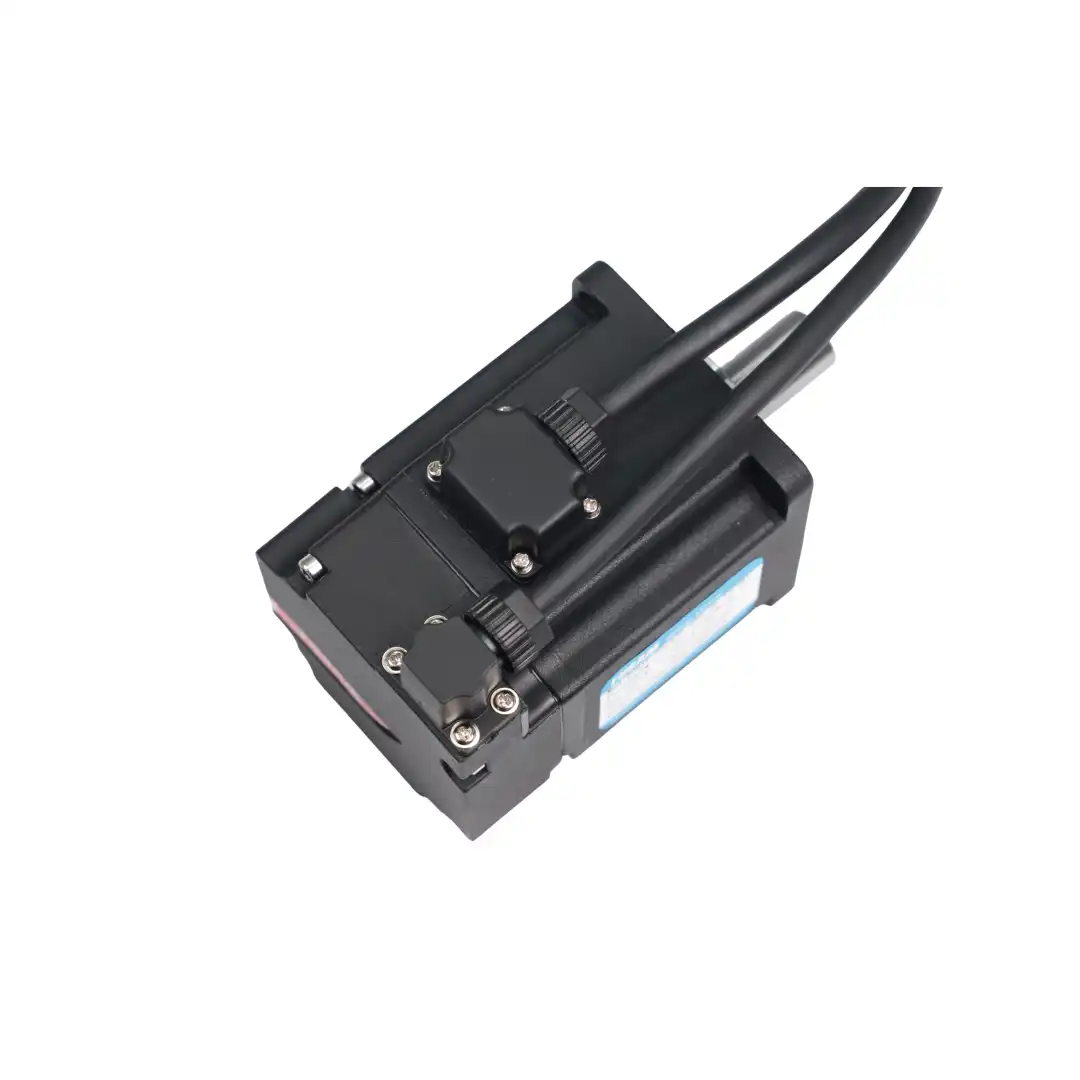

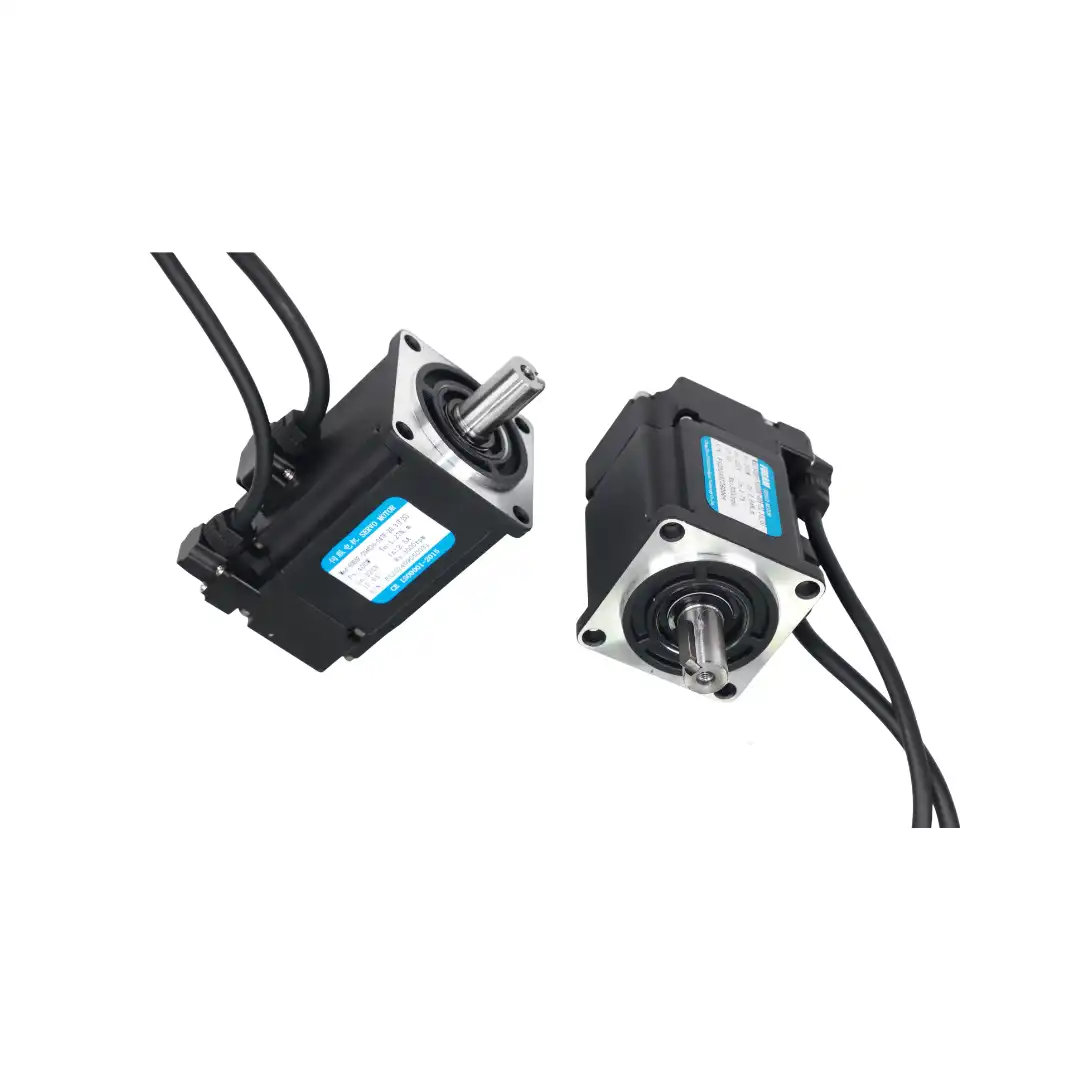

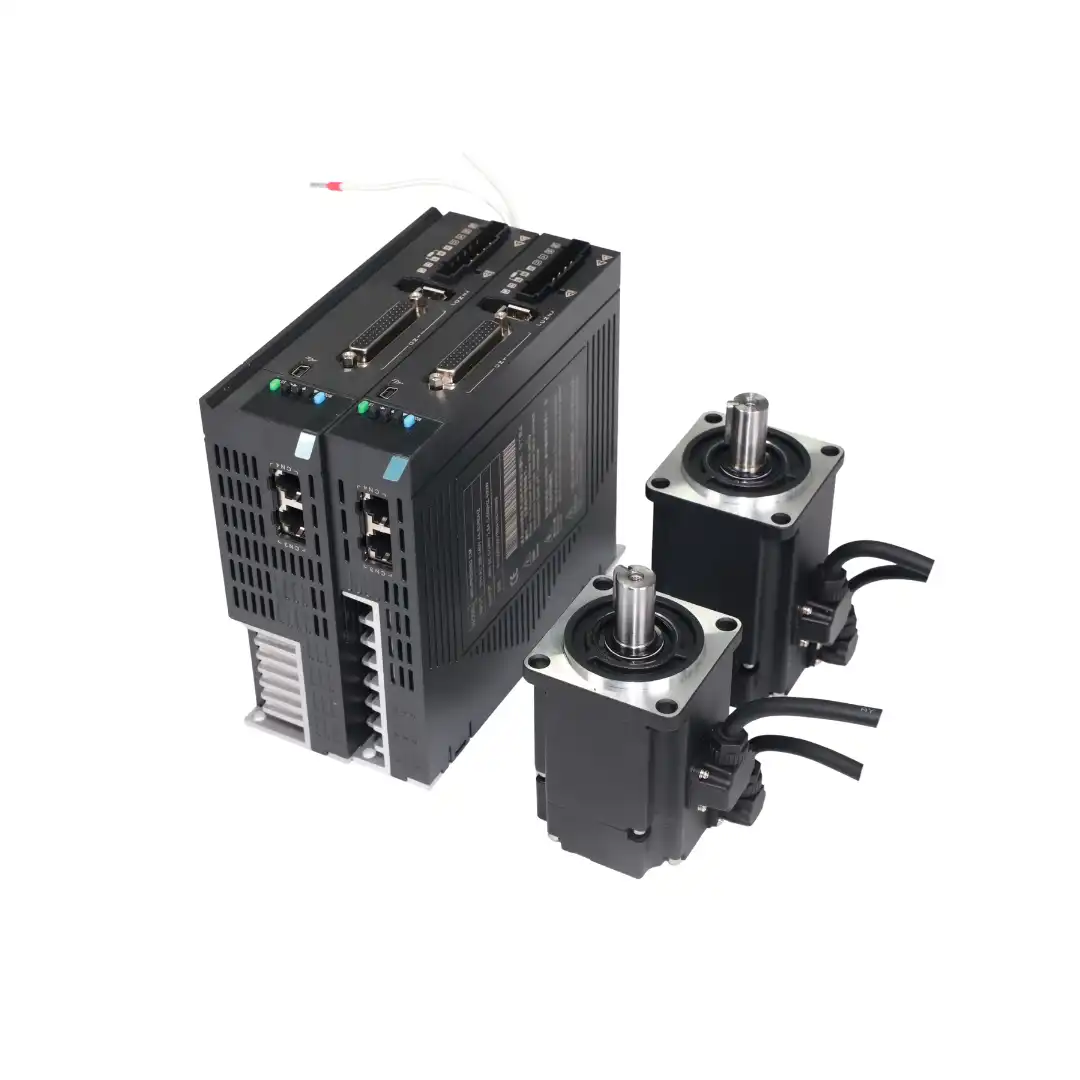

60BSF-M04030 – AC Servo Motor
60BSF-M04030 – AC Servo Motor - Image 2
60BSF-M04030 – AC Servo Motor - Image 3
60BSF-M04030 – AC Servo Motor - Image 4
60BSF-M04030 – AC Servo Motor - Image 5

60BSF-M04030 – AC Servo Motor

60BSF-M04030 AC Servo Motor | 220V | 400W | 1.27 N.m Rated Torque

Category: Tags:, , , , , , , , , , , , , , , , , Brand:

Description

60BSF-M04030 is a high-performance AC servo motor designed for precise motion control and industrial automation applications. It operates on 220V supply and delivers 400W rated output power with a rated speed of 3000 RPM for stable high-speed operation. The motor provides rated torque of 1.27 N.m and maximum momentary torque up to 4.6 N.m, ensuring excellent dynamic response and load handling capability. It features a high-resolution 17-bit encoder for accurate position feedback and supports peak speed up to 6000 RPM. With IP65 protection grade and Class F insulation, it ensures reliable performance in demanding industrial environments.

Application:

  • CNC Machine Manufacturers
  • Automation Equipment Manufacturers
  • Robotics and Motion Control Systems
  • Packaging Machinery Industry
  • Printing and Labelling Machines
  • Textile and Industrial Machine
Product Specification
Parameter Specification
Model 60BSF-M04030
Type AC Servo Motor
Rated Voltage 220 V
Rated Power 400 W
Rated Current 2.6 A
Rated Speed 3000 RPM
Peak Speed 6000 RPM
Rated Torque 1.27 N.m
Max Momentary Torque 4.6 N.m
Max Momentary Current 10.4 A
Encoder 17-bit
Line-Line Resistance 4.6 Ω
Phase Q-axis Inductance 5.1 mH
Phase D-axis Inductance 4.6 mH
Counter Electromotive Force 32 V/1000 r/min
Torque Coefficient 0.49
Rotor Inertia 1.56 × 10⁻⁴ Kg·m²
Protection Grade IP65
Insulation Class F
Ambient Temperature -20°C to 50°C
Insulation Resistance 500V ≥20MΩ
Withstand Voltage 1500V 5s
Weight 1.12 kg
