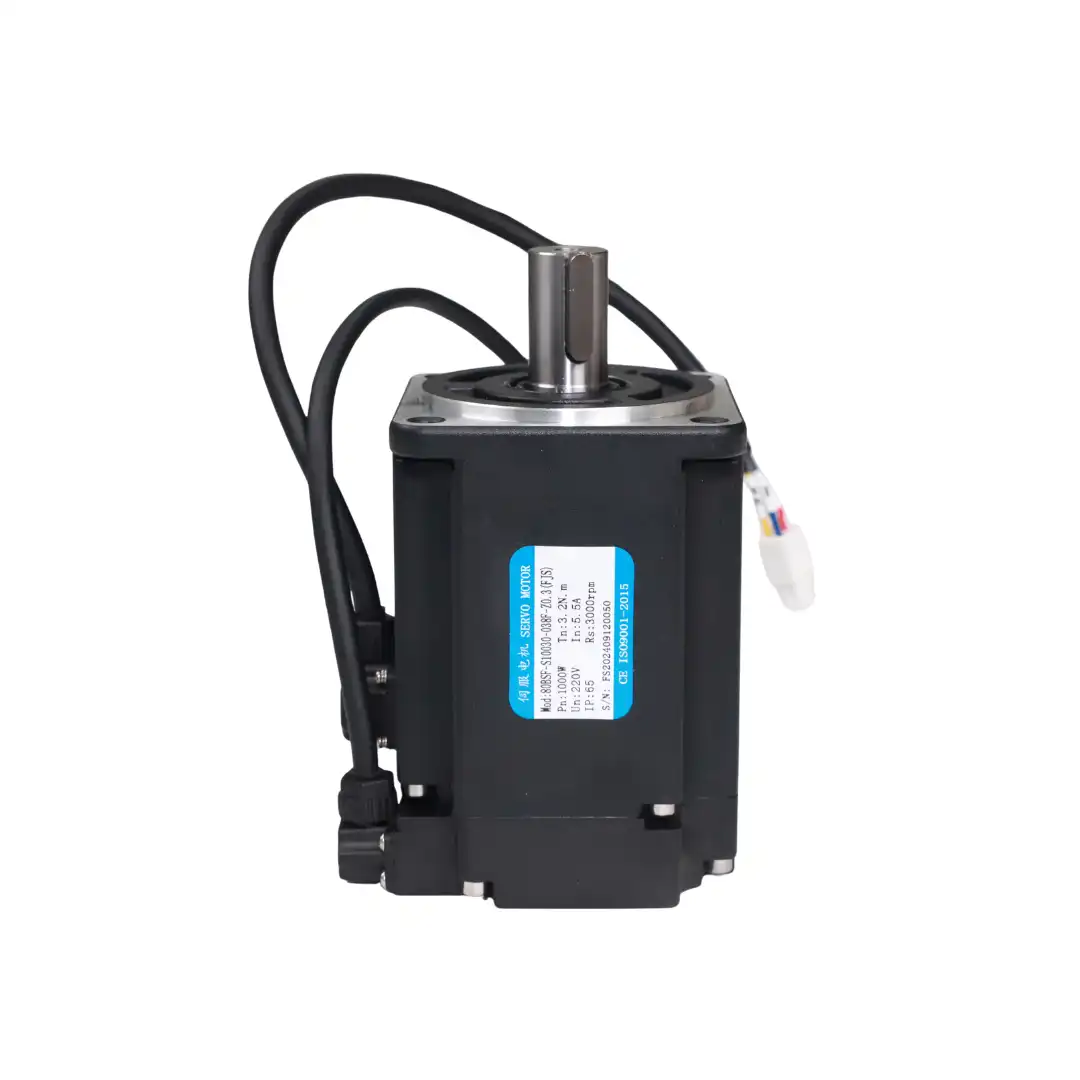

80BSF-M10030 – AC Servo Motor - Image 2

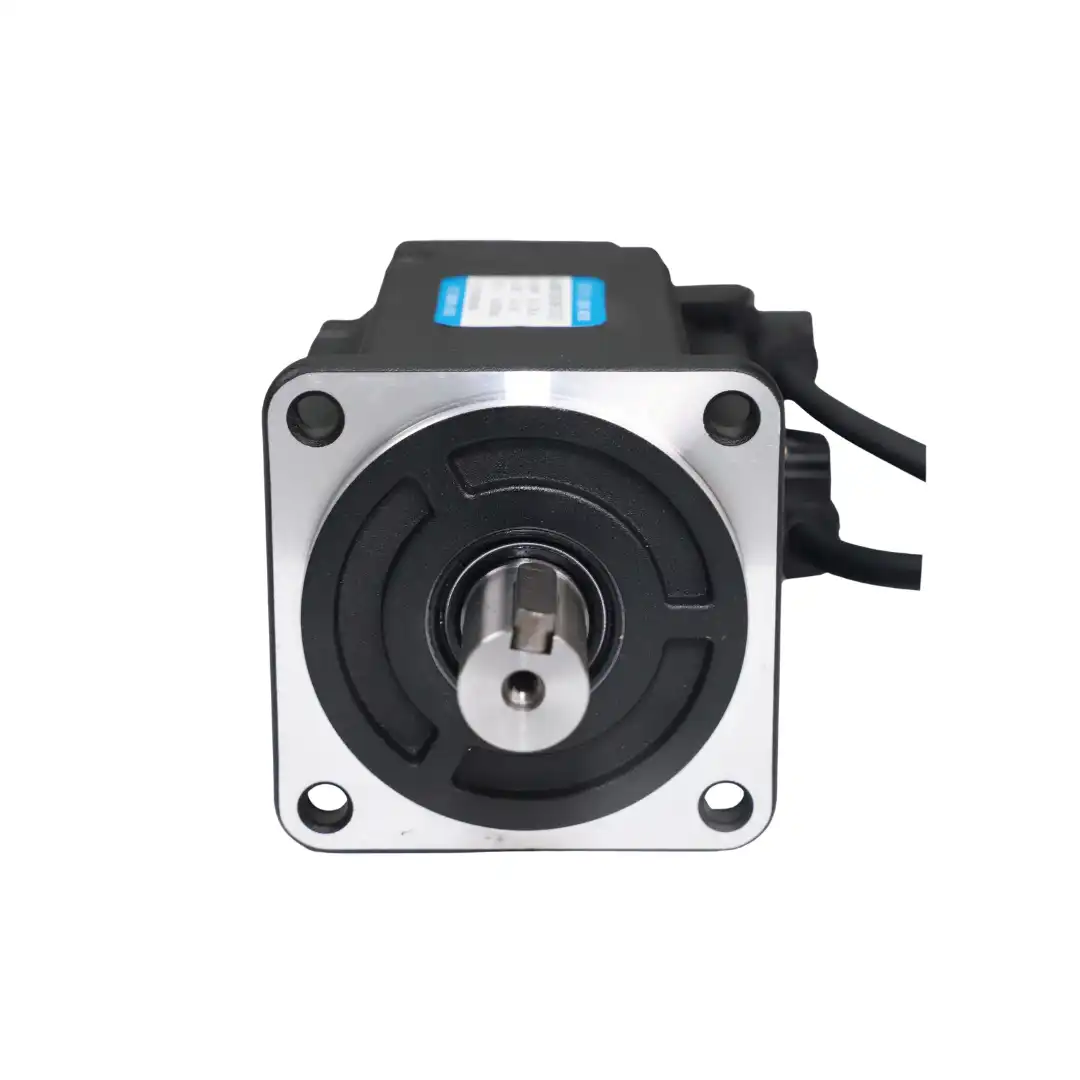

80BSF-M10030 – AC Servo Motor - Image 3
80BSF-M10030 – AC Servo Motor - Image 4

80BSF-M10030 – AC Servo Motor

80BSF-M10030 AC Servo Motor | 220V | 1000W | 3.2 N.m Rated Torque

Category: Tags:, , , , , , , , , , , , , , , , Brand:

Description

80BSF-M10030 is a high-performance AC servo motor designed for precision motion control in industrial automation systems. It operates on 220V supply and delivers 1000W rated power with a rated speed of 3000 RPM, ensuring stable and efficient performance. The motor provides rated torque of 3.2 N.m and maximum momentary torque up to 9.6 N.m for demanding load applications. With peak speed up to 5000 RPM and a high-resolution 17-bit encoder, it ensures accurate positioning and smooth dynamic response. The IP65 protection grade and Class F insulation provide reliable operation in harsh industrial environments.

Application:

  • CNC Machine Manufacturers
  • Industrial Automation Equipment
  • Robotics and Motion Control Systems
  • Packaging Machinery Industry
  • Printing and Converting Machines
  • Textile and Processing Machinery
Product Specification
Parameter Specification
Model 80BSF-M10030
Type AC Servo Motor
Rated Voltage 220 V
Rated Power 1000 W
Rated Current 5.5 A
Rated Speed 3000 RPM
Peak Speed 5000 RPM
Rated Torque 3.2 N.m
Max Momentary Torque 9.6 N.m
Max Momentary Current 16.5 A
Encoder 17-bit
Line-Line Resistance 0.95 Ω
Phase Q-axis Inductance 3.1 mH
Phase D-axis Inductance 2.3 mH
Counter Electromotive Force 34 V/1000 r/min
Torque Coefficient 0.58
Rotor Inertia 2.03 × 10⁻⁴ Kg·m²
Pole Pairs 5
Protection Grade IP65
Insulation Class F
Ambient Temperature -20°C to 50°C
Insulation Resistance 500V ≥20MΩ
Withstand Voltage 1500V 5s
Weight 2.54 kg
