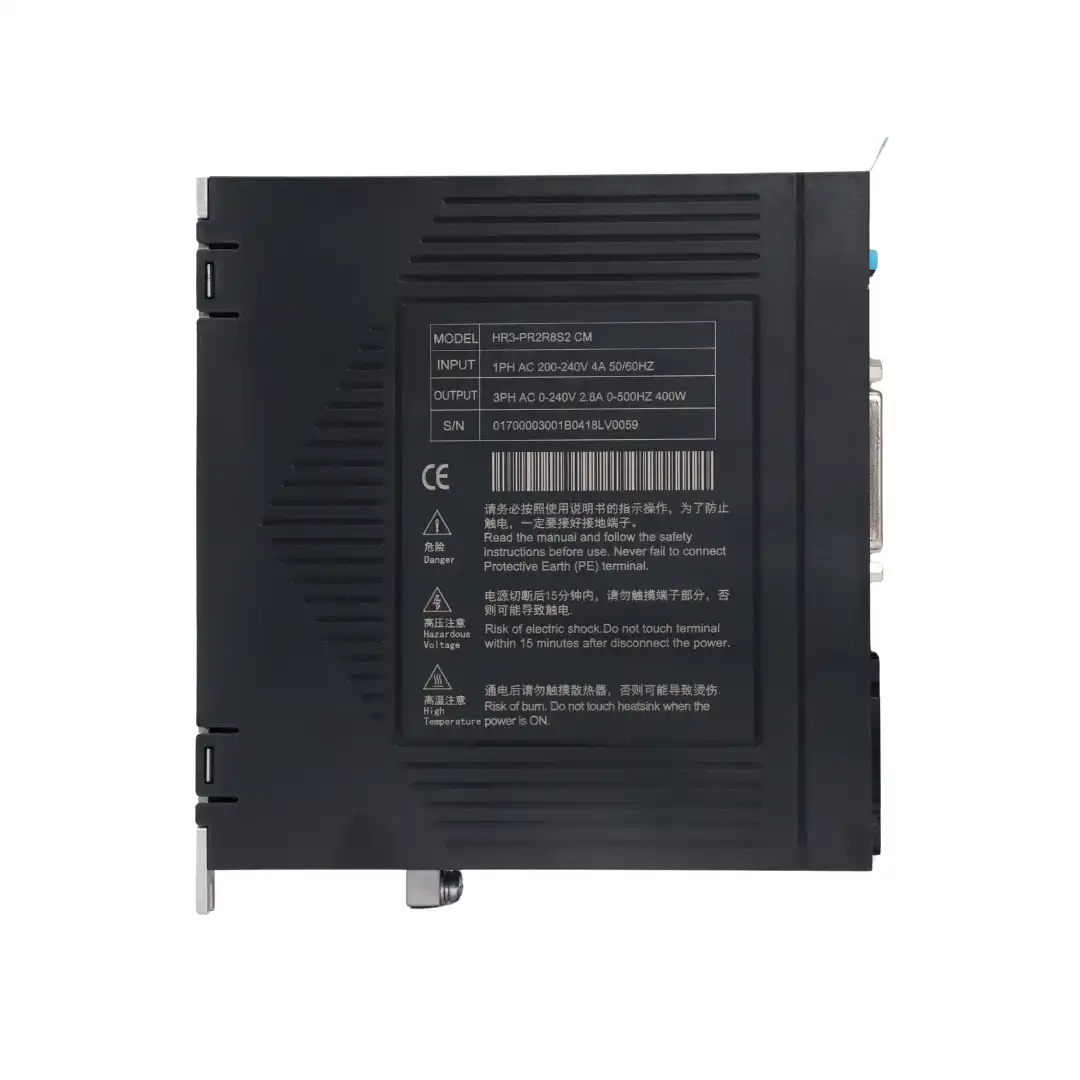

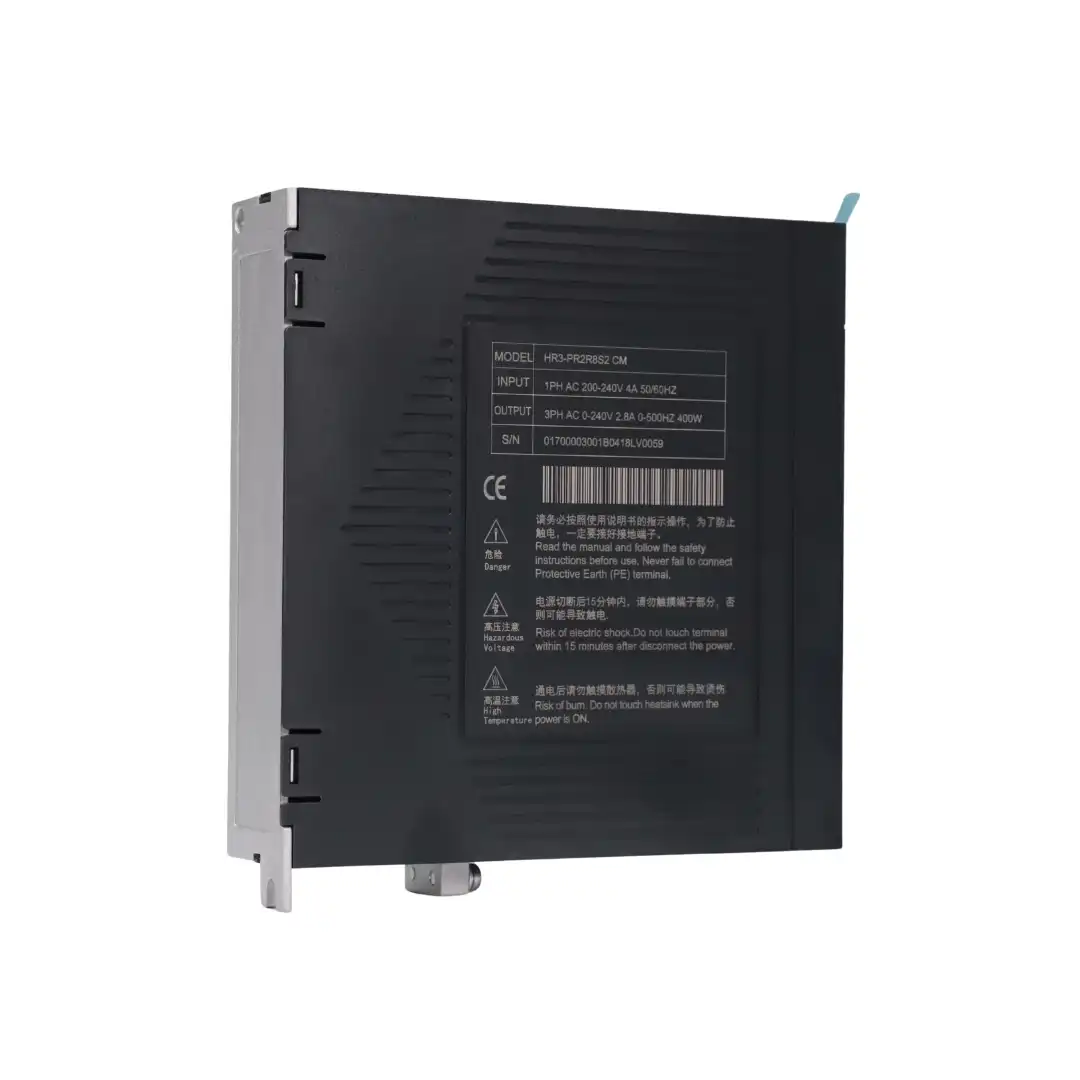

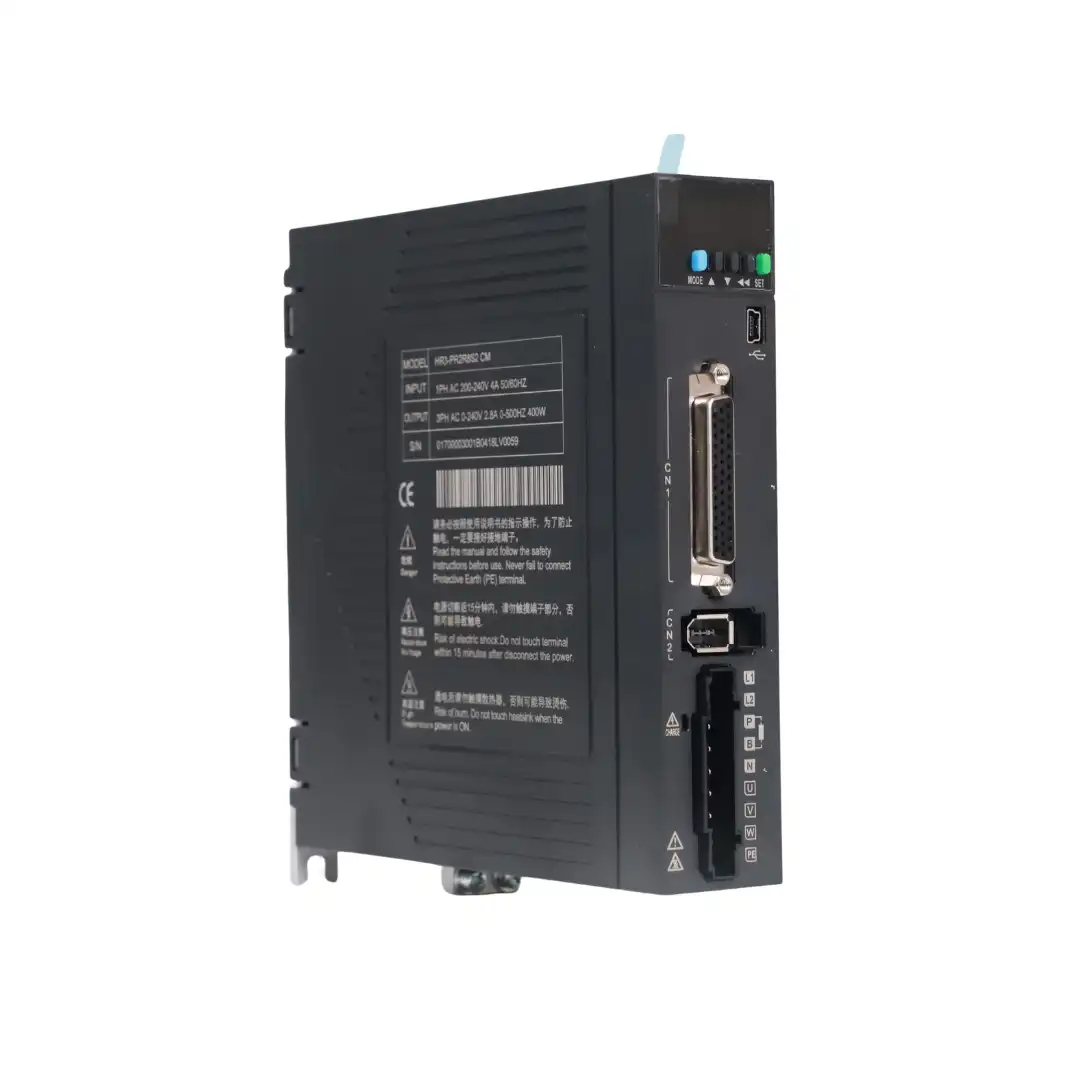

HR3-PR2R8 S2 – AC Servo Driver
HR3-PR2R8 S2 – AC Servo Driver - Image 2
HR3-PR2R8 S2 – AC Servo Driver - Image 3
HR3-PR2R8 S2 – AC Servo Driver - Image 4
HR3-PR2R8 S2 – AC Servo Driver - Image 5

HR3-PR2R8 S2 – AC Servo Driver

HR3-PR2R8 S2 AC Servo Driver | AC 200V-240V | 2.8A Continuous | 400W

Category: Tags:, , , , , , , , , , , , , , , Brand:

Description

HR3-PR2R8 S2 is a high-performance AC servo driver from the HR3-PR series designed for precise motion control applications. It supports pulse, analog, and RS485 control methods and is compatible with rotary servo motors for accurate speed, torque, and position control. This servo driver is rated for 400W capacity and provides 2.8A continuous output current with maximum output current up to 10.1A for high dynamic performance. It operates on AC 200V to 240V single-phase supply and ensures smooth and stable servo operation for industrial machinery. The drive also supports optional built-in regenerative resistor for braking applications, making it suitable for high-speed automation systems.

Application:

  • CNC Machine Manufacturers
  • Automation Equipment Manufacturers
  • Packaging Machinery Industry
  • Robotics and Motion Control Systems
  • Printing and Labelling Machines
  • Textile Machinery Industry
Product Specification
Parameter Specification
Model HR3-PR2R8 S2
Type AC Servo Driver
Series HR3-PR Series
Product Category Pulse / Analog / RS485
Motor Type Supported Rotary Servo Motor
Rated Power 400 W
Continuous Output Current 2.8 Arms
Maximum Output Current 10.1 Arms
Continuous Input Current 4.0 Arms
Input Power Supply Single Phase AC200V to 240V
Input Voltage Tolerance -10% to +10%
Frequency 50/60 Hz
Regenerative Resistor Optional 50Ω / 50W (Built-in)
Control Mode Position / Speed / Torque Control
