Product Specification
| Parameter | Specification |
|---|---|

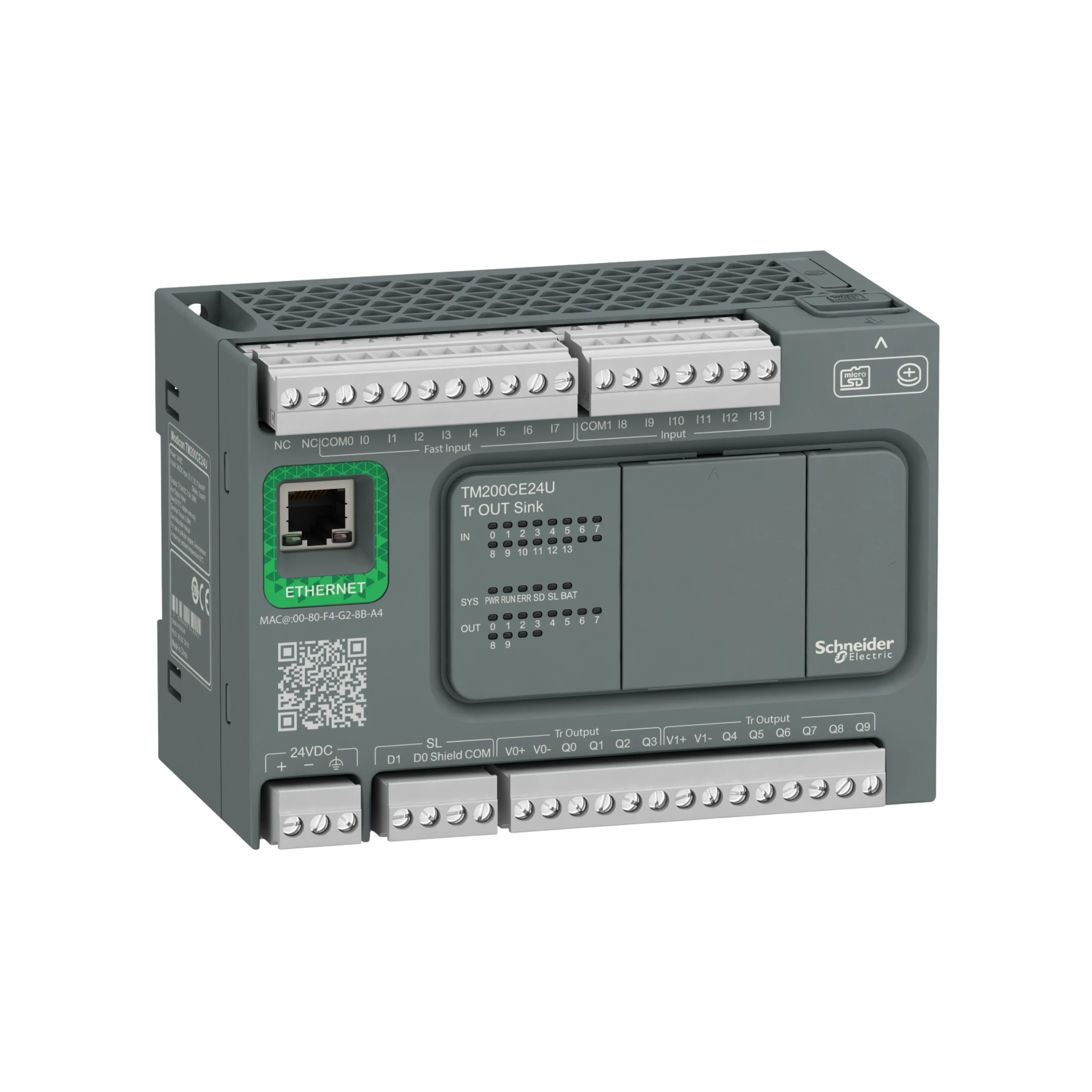

| Model | TM200CE24U |
| Series | Easy Modicon M200 |
| Product Type | Logic Controller |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Limits | 20.4…28.8 V |
| Discrete I/O Total | 24 |
| Digital Inputs | 6 regular + 4 fast + 4 high speed |
| Digital Outputs | 8 transistor + 2 fast outputs |
| Discrete Input Voltage | 24 V DC |
| Discrete Input Current | 7 mA |
| Discrete Output Voltage | 24 V DC |
| Discrete Output Current | 0.5 A per channel |
| Output Type | Transistor (sink) |
| Protocols | Modbus TCP/IP, Modbus RTU/ASCII |
| Communication Ports | Ethernet RJ45, USB Mini-B, RS485, RS232/RS485 |
| Memory | 512 byte internal flash |
| External Memory | Micro SD (up to 32 GB) |
| Mounting | DIN rail / Panel |
| Protection Rating | IP20 |
| Operating Temperature | 0…55 °C |
| Certifications | CE, CSA, RCM, IACS E10, CULus |

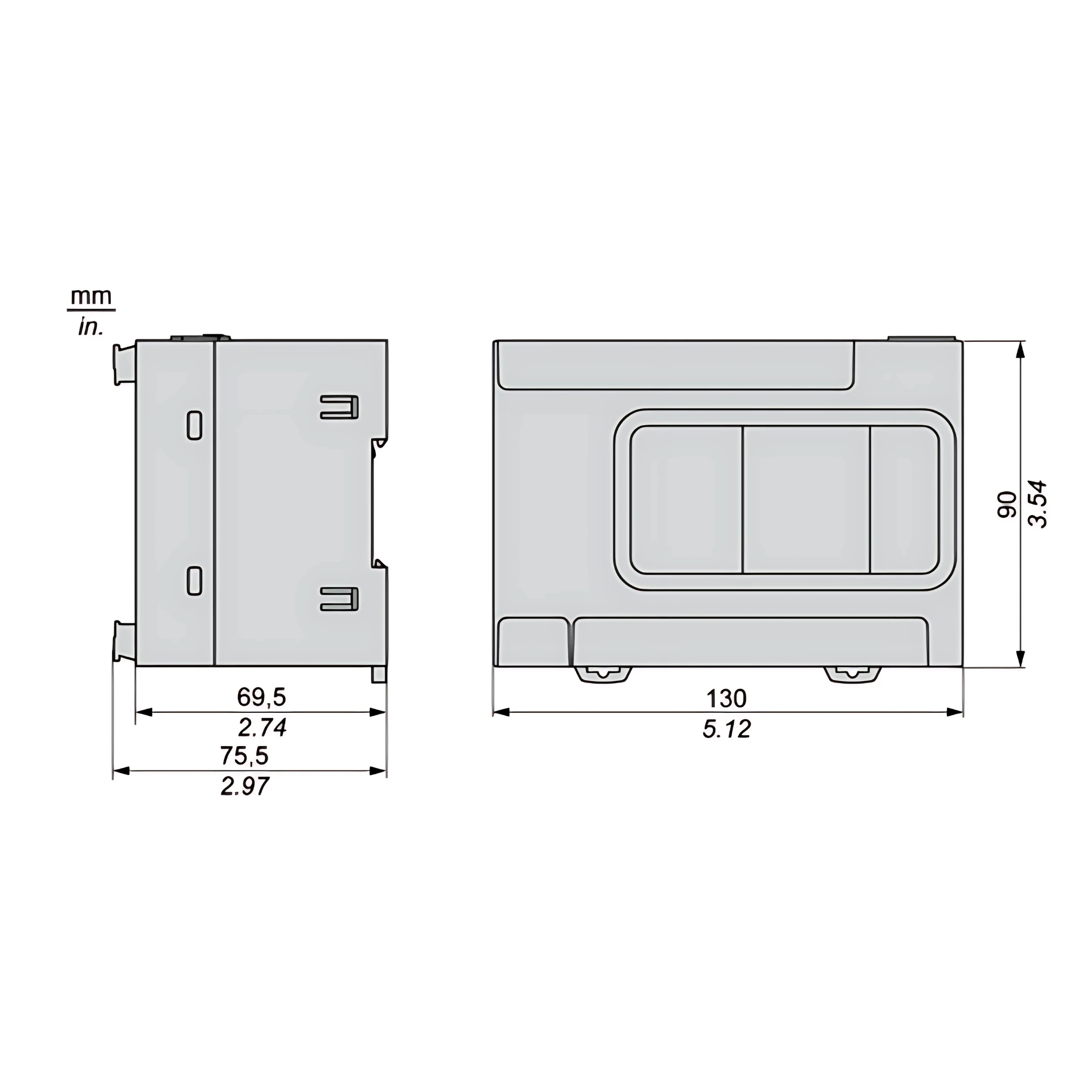

| Dimensions (W x H x D) | 130 x 90 x 70 mm |
| Weight | ~0.39 kg |
