Product Specification
| Parameter | Specification |
|---|---|

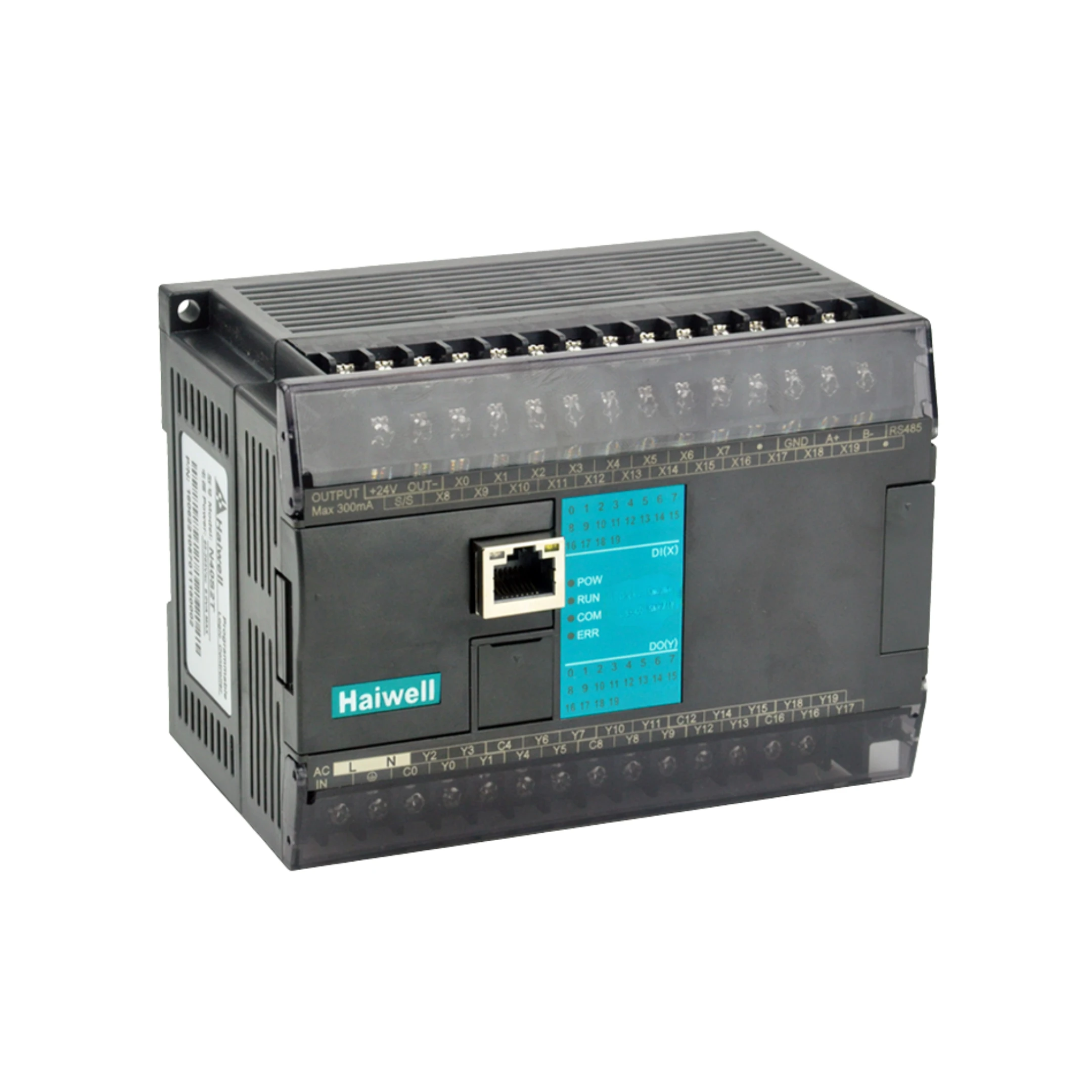

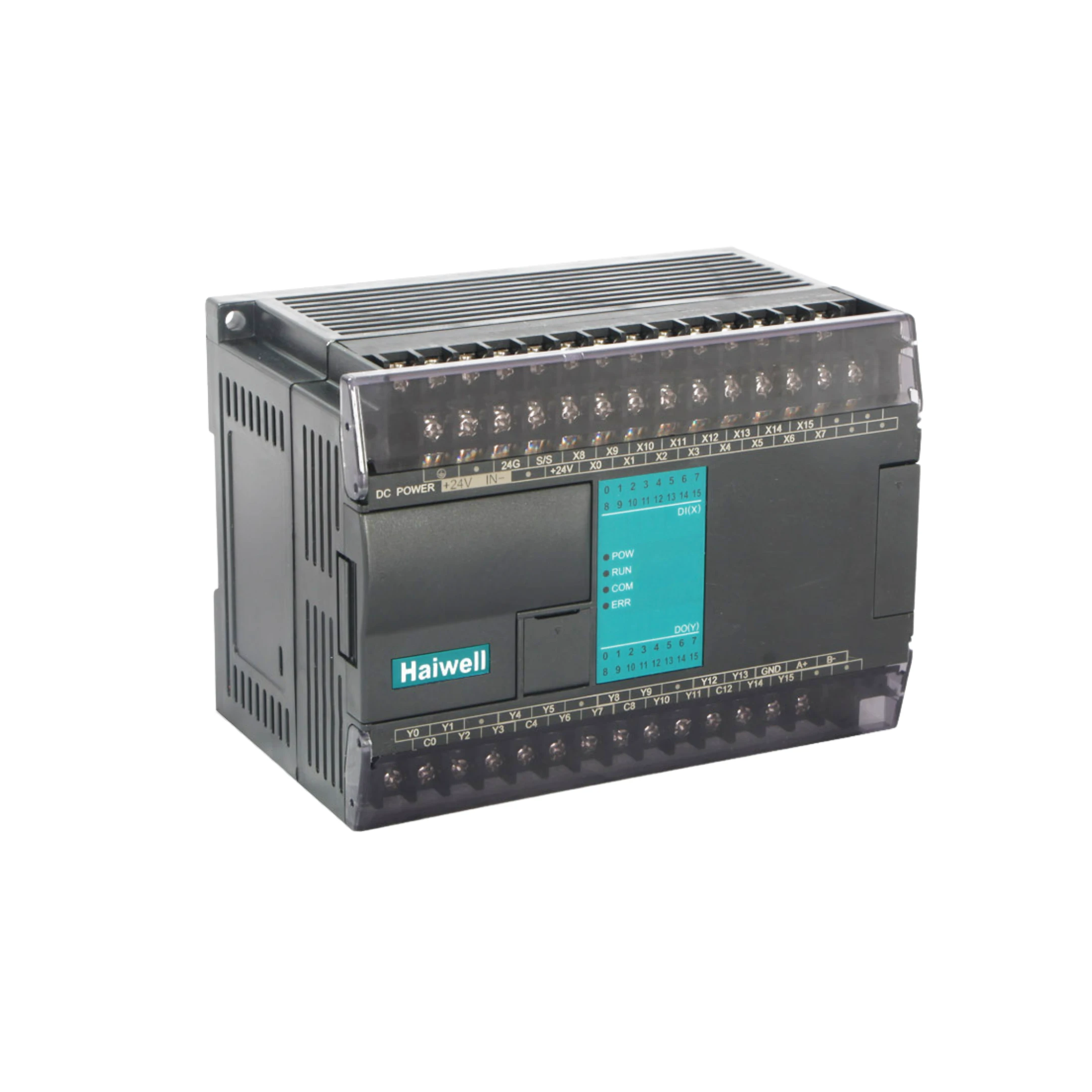

| Model | T48S2R |
| Series | Haiwell Classic PLC T Series |
| Type | PLC MPU |
| Power Supply Type | DC Power Supply |
| Power Supply Voltage | DC 24V (-15% to +20%) |
| Power Consumption | 10.5 W |
| 5V Output Voltage (for CPU) | 5V (-2% to +2%), 1.2A Max |
| 24V Output Voltage (for output and extension) | 24V (-15% to +15%), 500mA Max |
| Power Loss Time | 10ms or less |
| Fuse | 2A, 250VAC |
| Digital Input Signal | No voltage contact or NPN/PNP |
| Digital Input Driving Current | ON > 3.5mA, OFF < 1.5mA |
| Digital Input Impedance | Approx. 4.3KΩ |
| Maximum Input Current | 10mA |
| Digital Input Reaction Time | 6.4ms default (configurable 0.8 to 51.2ms) |
| Digital Input Isolation | Optoelectronic isolation for each channel |
| Digital Output Type | Relay Output (R) |
| Relay Output Load (Resistive) | 2A per point, 8A per 4 points COM |
| Relay Output Load (Inductive) | 50VA |
| Relay Output Lamp Load | 100W |
| Relay Output Minimum Load | 10mA |
| Relay Output Voltage Specification | Below 250VAC, 30VDC |
| Relay Output Reaction Time | Off→On 10ms, On→Off 5ms |
| Operating Temperature | 0 to +55°C |
| Storage Temperature | -25 to +70°C |
| Relative Humidity | 5 to 95% RH (No condensation) |
| Impact Resistance | 15G, duration 11ms |
| Vibration Resistance | 10 to 57Hz amplitude 0.075mm, 57 to 150Hz acceleration 1G |
| Dimension | 131 × 95 × 82 mm |
