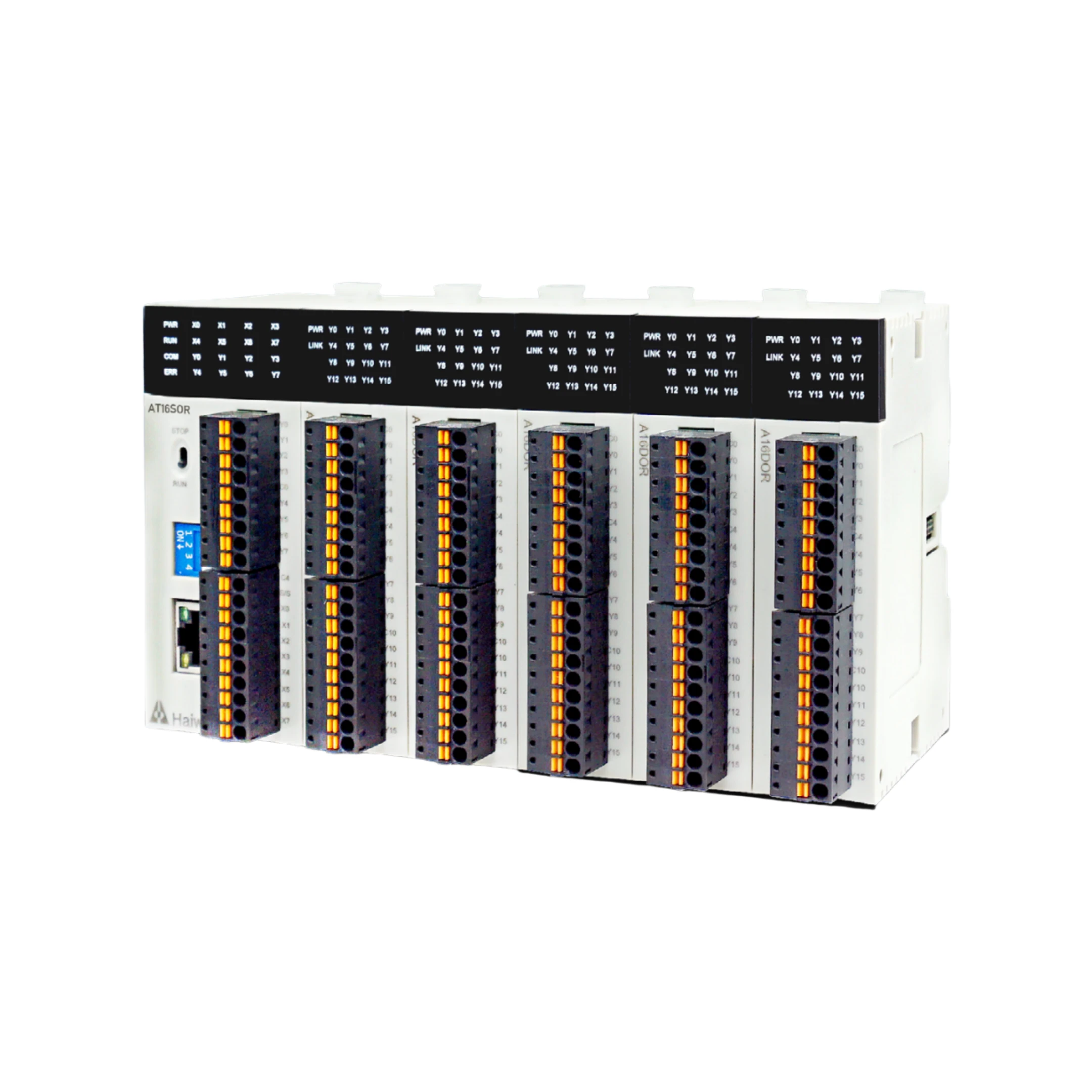

Haiwell - AT16S0T Card-Type PLC MPU

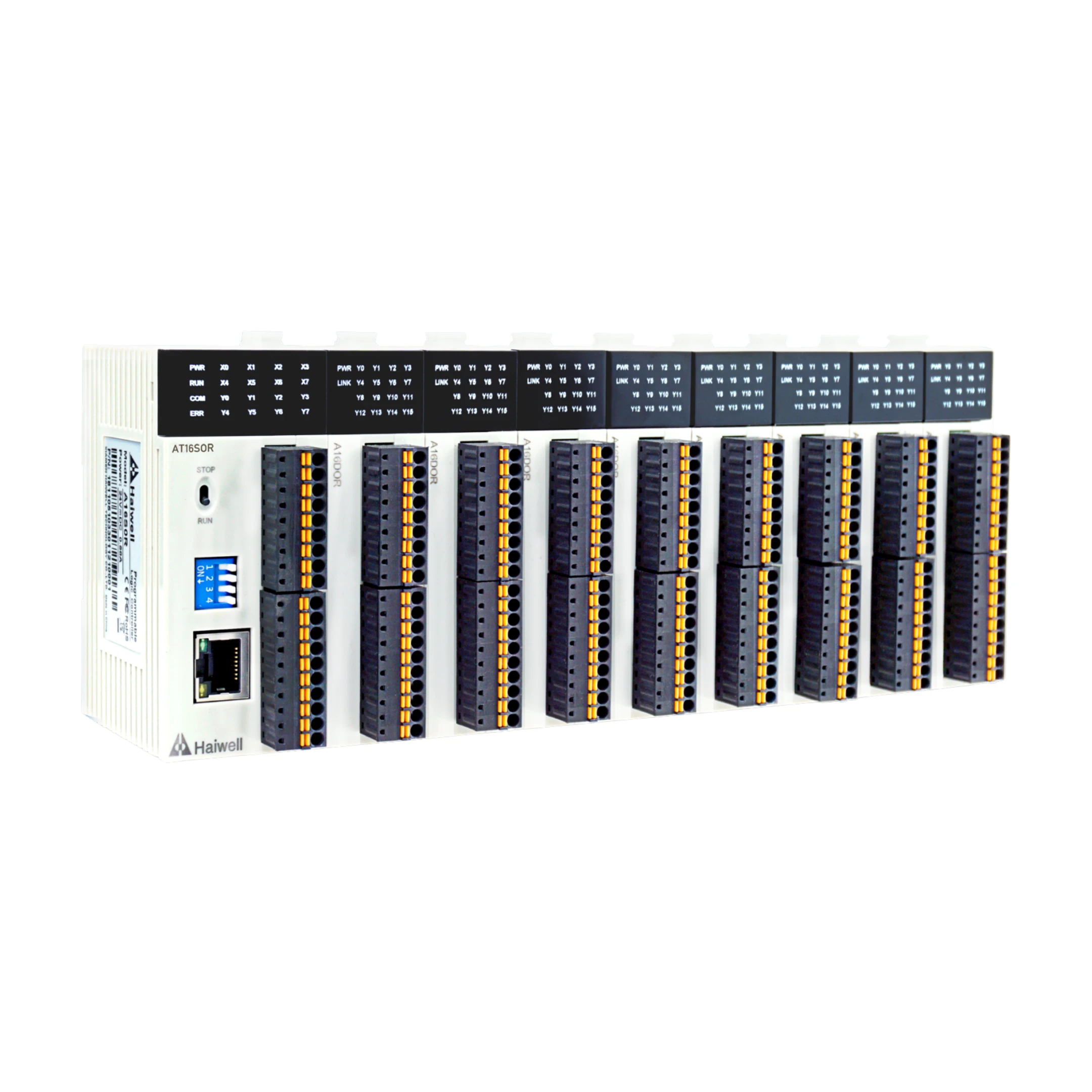

Haiwell - AT16S0T Card-Type PLC MPU - Image 2

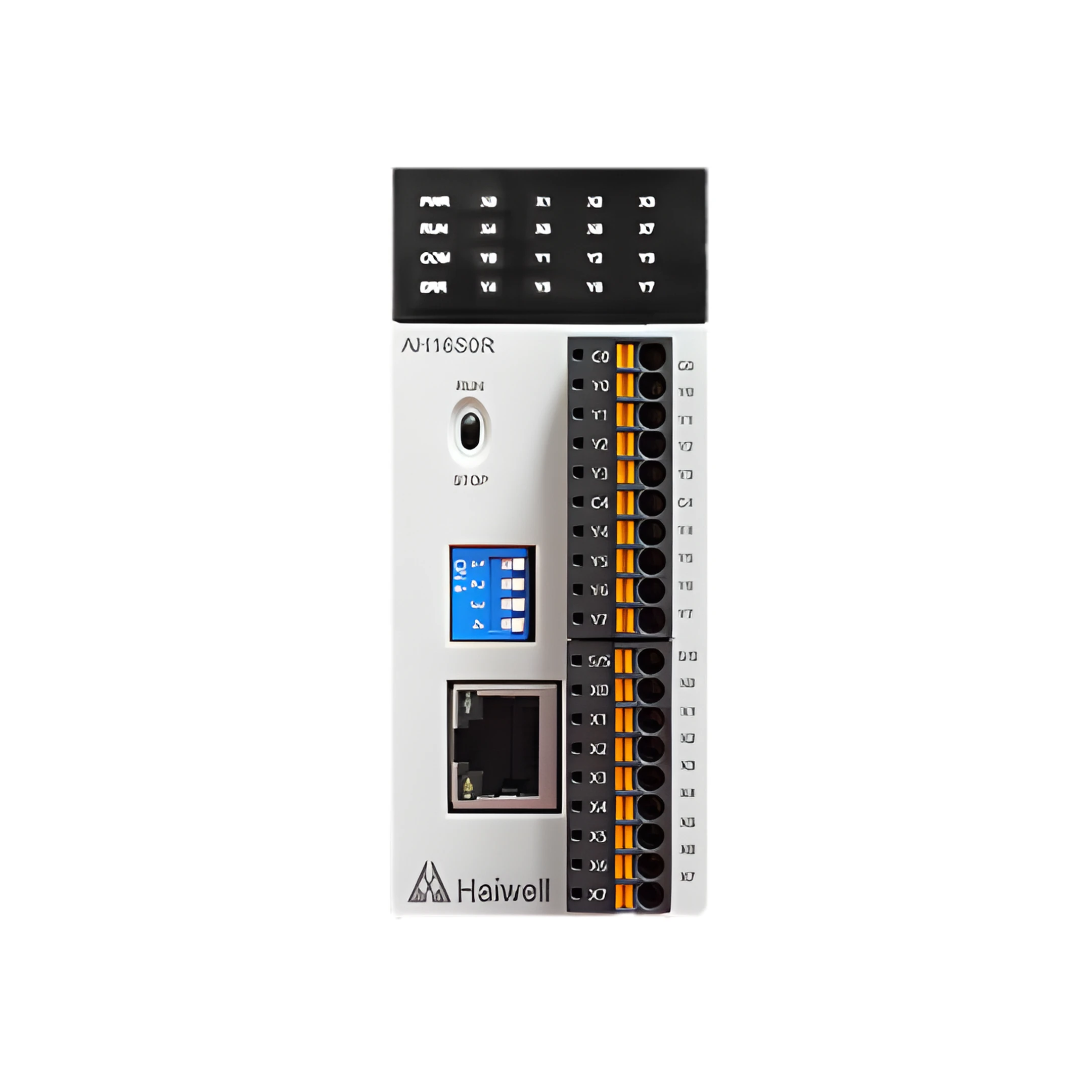

Haiwell - AT16S0T Card-Type PLC MPU - Image 3

Haiwell – AT16S0T Card-Type PLC MPU

Haiwell AT16S0T Card-Type PLC MPU | 24 V DC | 8 DI & 8 NPN DO | High-Speed Pulse + Ethernet + RS-485

Categories:, Tags:, , , , , , , , , , , , , , , Brand:

Description

The Haiwell AT16S0T Card-Type PLC MPU is a high-performance automation controller from the AT Series, offering 8 digital inputs and 8 NPN transistor outputs along with high-speed motion control support. It features dual high-speed A/B pulse input and output channels (4 points each at 200 kHz) for advanced motion and pulse applications. Equipped with built-in Ethernet (Modbus TCP) and RS-485 communication, it allows flexible network connectivity and integration with HMIs, SCADA or other PLCs. Designed for 24 V DC industrial environments with low power consumption, the compact card-type design is ideal for OEM machine builders and distributed control applications.

Application:

  • Industrial Machine Automation
  • Motion Control & Encoder Applications
  • Packaging & Material Handling Systems
  • Process Control & Monitoring
  • OEM Control Panels & Embedded Systems
Product Specification
Parameter Specification
Model AT16S0T
Series Haiwell AT Series Card-Type PLC
Product Type PLC MPU
Rated Supply Voltage 24 V DC
Digital Inputs 8 DI
Digital Outputs 8 DO, Transistor (NPN)
Pulse Inputs 2 Channels A/B phase, 4 points @ 200 kHz
Pulse Outputs 2 Channels A/B phase, 4 points @ 200 kHz
Communication Ethernet (Modbus TCP) + RS-485
Motion Control High-speed pulse I/O support
Mounting DIN-rail / Card-type mount
Power Consumption <4.8 W
Dimensions (W×H×D) 40 × 95 × 65 mm (en.haiwell.com)
