Product Specification
| Parameter | Specification |
|---|---|
| Model | EX3S-8043B-32MT |
| Brand | Coolmay |
| Type | Integrated Touch Screen Controller |
| Power Supply | DC24V |
| Digital Inputs (DI) | 16 |
| Digital Outputs (DO) | 16 |
| Output Type | Transistor (MT) |
| Max Transistor Load | 0.5A per point |
| Analog Input (AD) | Not available |
| Analog Output (DA) | Not available |

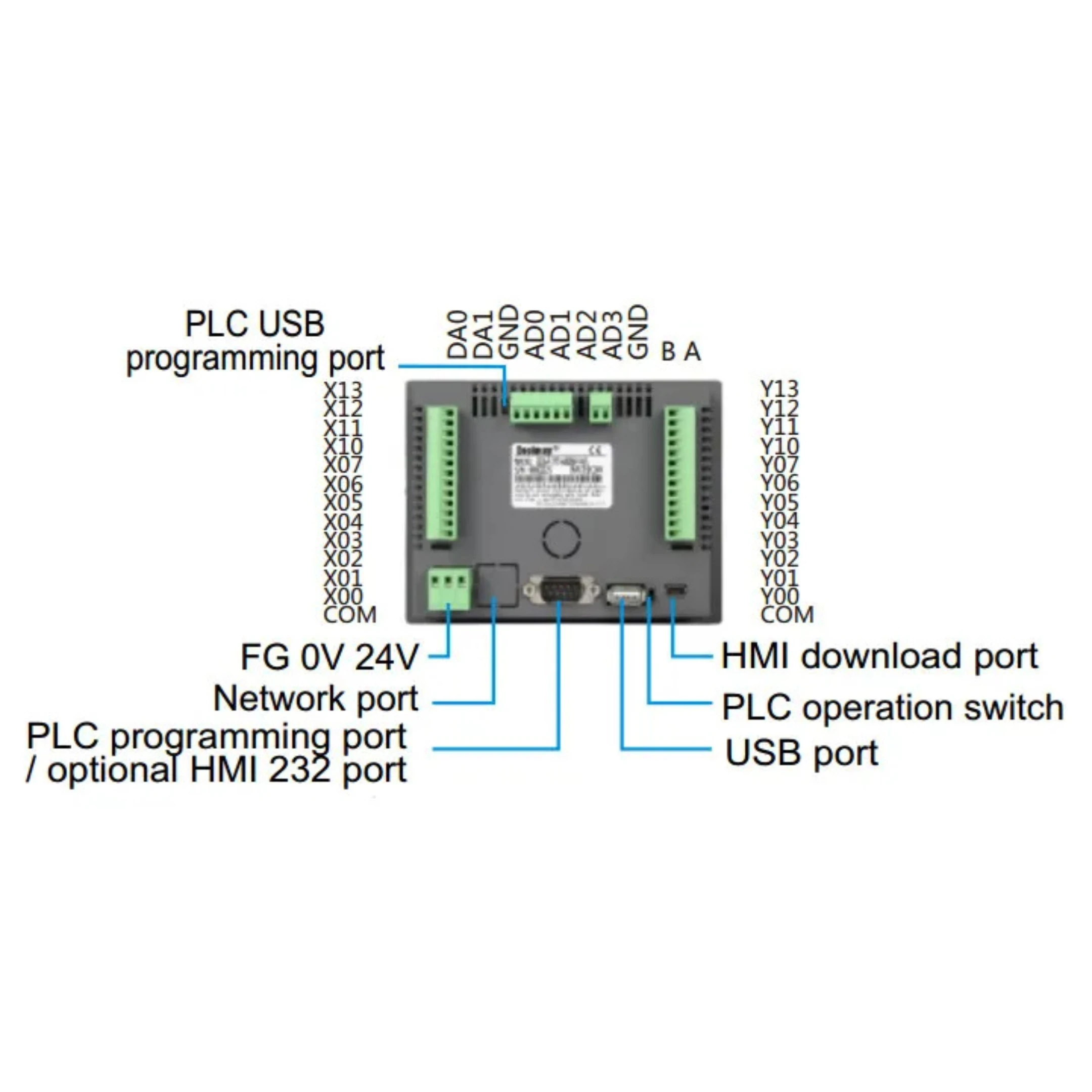

| HMI Communication Port | Comes with 1 RS485 |
| PLC Communication Port | Comes with 2 RS485 |
| High-Speed Counting (Single-phase) | Conventional 6-channel, 100KHz |
| High-Speed Counting (AB phase) | Conventional 2-channel, 100KHz |
| High-Speed Pulse Output | Conventional 4-channel Y0-Y3, 100KHz |
