Product Specification
| Parameter | Specification |
|---|---|
| Model | MX3G-43C-22MRT |
| Brand | Coolmay |

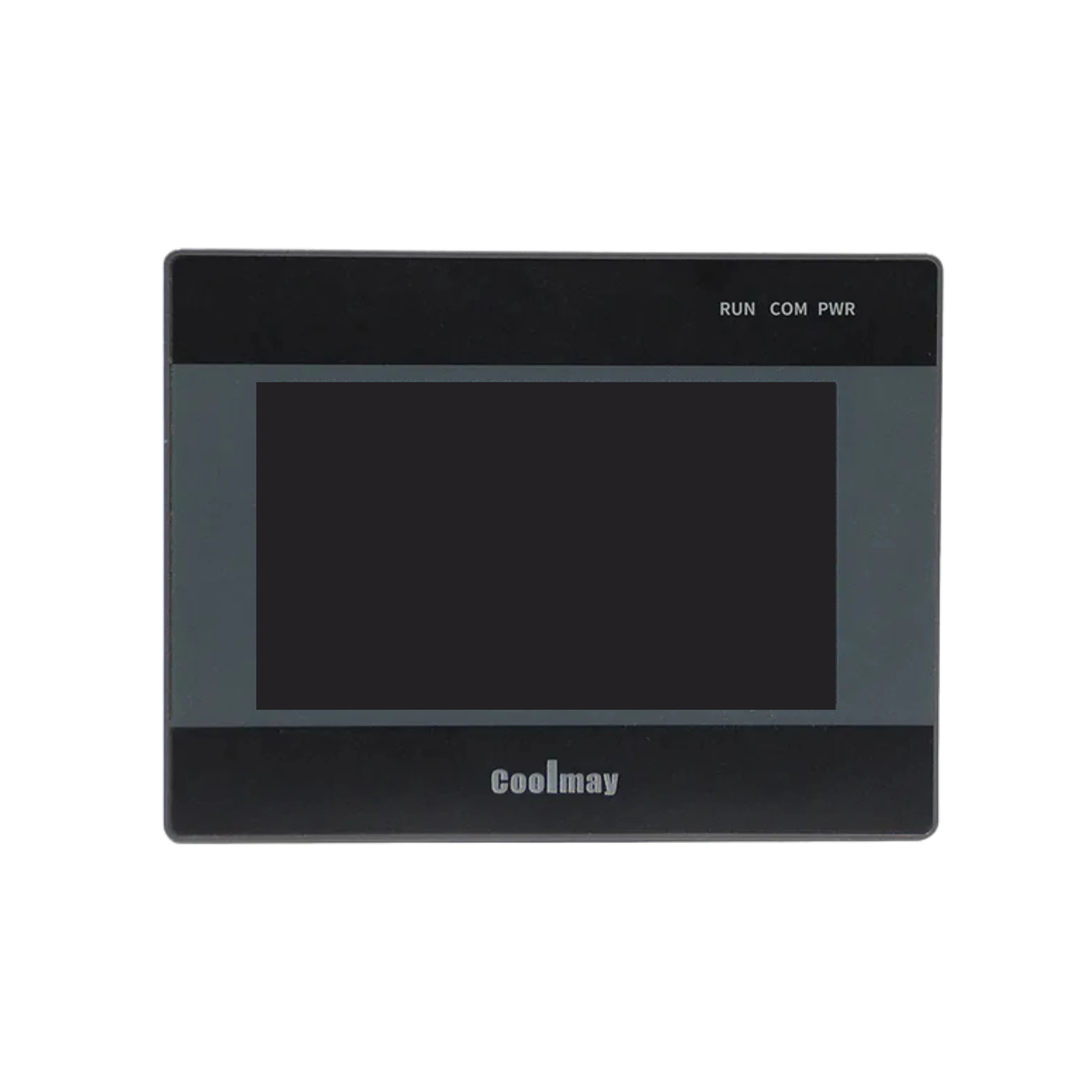

| Type | Touch Screen PLC Controller |
| Power Supply | DC24V |
| Digital Inputs (DI) | 12 |
| Digital Outputs (DO) | 10 |
| Output Type | Mixed (Relay + Transistor) |
| Analog Inputs (AD) | 5 |
| Analog Outputs (DA) | 2 |

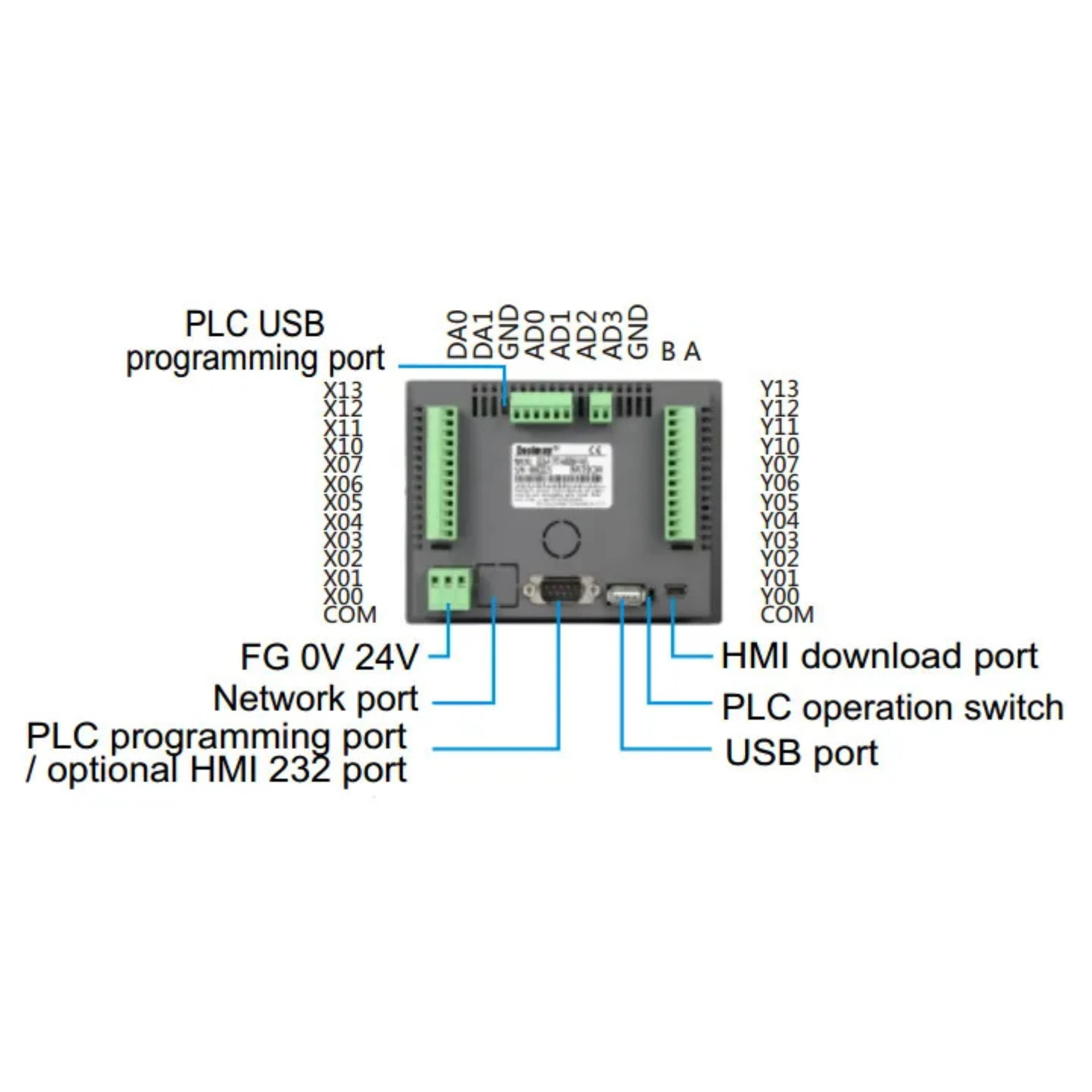

| HMI Communication Port | 1 × RS232 |
| PLC Communication Port | Comes with 1 RS485 |
| High-Speed Counting (Single-phase) | 2 channels 60KHz + 4 channels 10KHz |
| High-Speed Counting (AB phase) | 1 channel 30KHz + 1 channel 5KHz |
| High-Speed Counting (ABZ phase) | 1 channel 30KHz + 1 channel 5KHz |
| High-Speed Pulse Output | 4 channels (Y0-Y1 100KHz, Y2-Y3 10KHz) |
