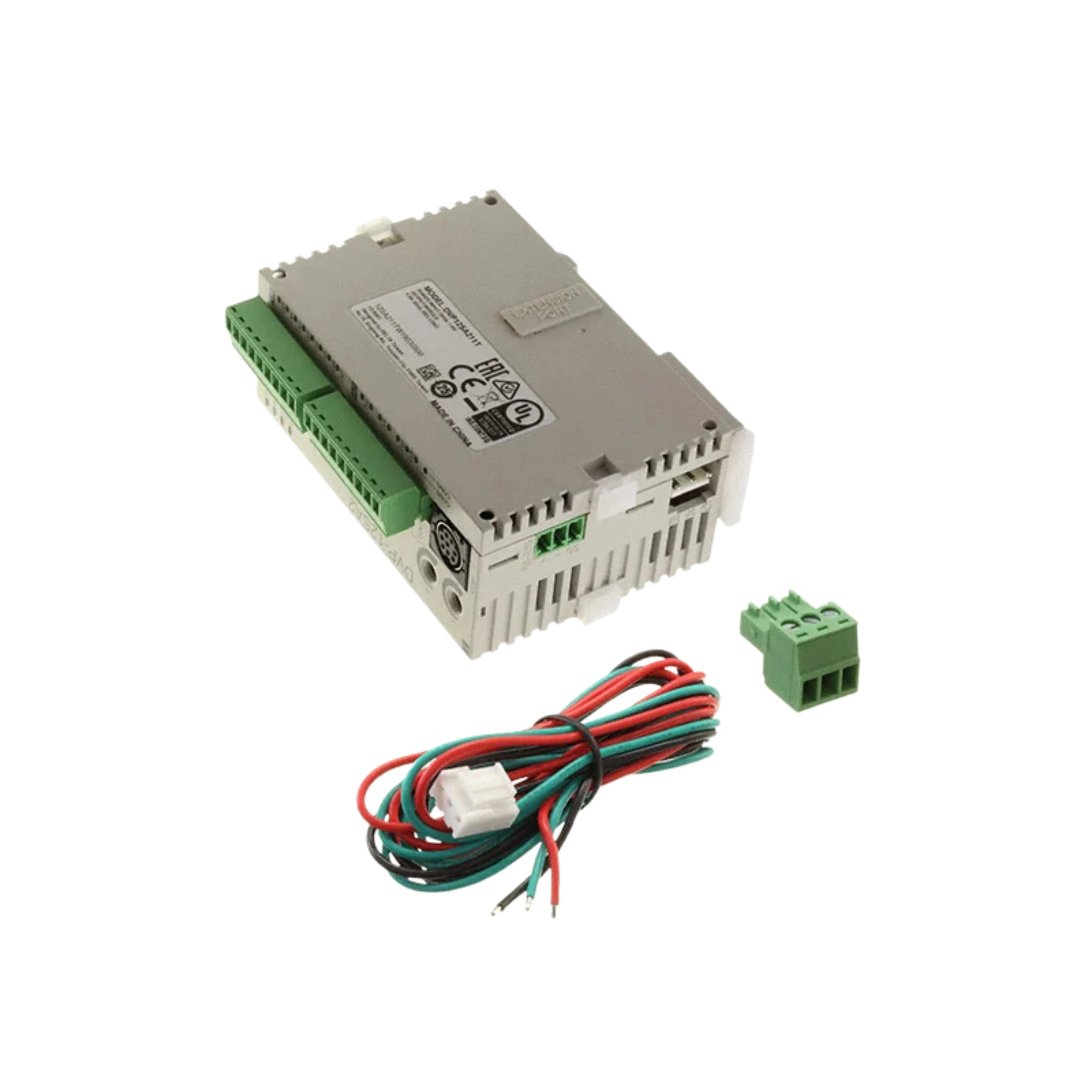

Delta – DVP12SA11R Programmable Logic Controller - Image 2

Delta – DVP12SA11R Programmable Logic Controller

Delta DVP12SA11R Programmable Logic Controller | DC 24V | Relay Output | 8DI 4DO with RS232 + RS485

Categories:, Tags:, , , , , , , , , , , , , , , Brand:

Description

The Delta DVP12SA11R is a compact programmable logic controller from the DVP-SA2 series designed for basic industrial automation and control tasks. It offers 12 discrete I/O points with 8 digital inputs and 4 relay outputs, providing flexible control for logic, sequencing and simple motion tasks. The controller operates on a 24 V DC supply with reverse polarity protection and features an 8 k program step capacity, supporting connection to expansion I/O modules for larger systems. Built-in RS232 and RS485 communication ports enable easy integration with programming tools and networked devices. Its DIN-rail mounting and robust industrial design make it suitable for machine control, OEM equipment and panel installations.

Application:

  • Machine Builders
  • Packaging Industry
  • Automation Industry
  • Material Handling Systems
  • Process Control Systems
  • Industrial Control Panels
Product Specification
Parameter Specification
Model DVP12SA11R
Brand Delta
Series DVP-SA2 Series
Type Programmable Logic Controller
Power Supply 24 V DC (-15% ~ +20%)
Total I/O Points 12
Digital Inputs (DI) 8
Digital Outputs (DO) 4
Output Type Relay
Program Capacity 8 k steps
Communication Ports 1 × RS232, 2 × RS485
Expansion Support SA/SX/SC series expansion modules
High-Speed Pulse Outputs 2 × 100 kHz, 2 × 10 kHz (typical)
High-Speed Counter Inputs 2 × 100 kHz, 6 × 10 kHz, 1 × AB phase 50 kHz
Mounting DIN-rail
Operating Temp 0 °C to 55 °C
Insulation Resistance ≥ 5 MΩ @ 500 V DC (I/O to earth/ground)
Protection Reverse polarity protection on DC power
