Product Specification
| Parameter | Specification |
|---|---|

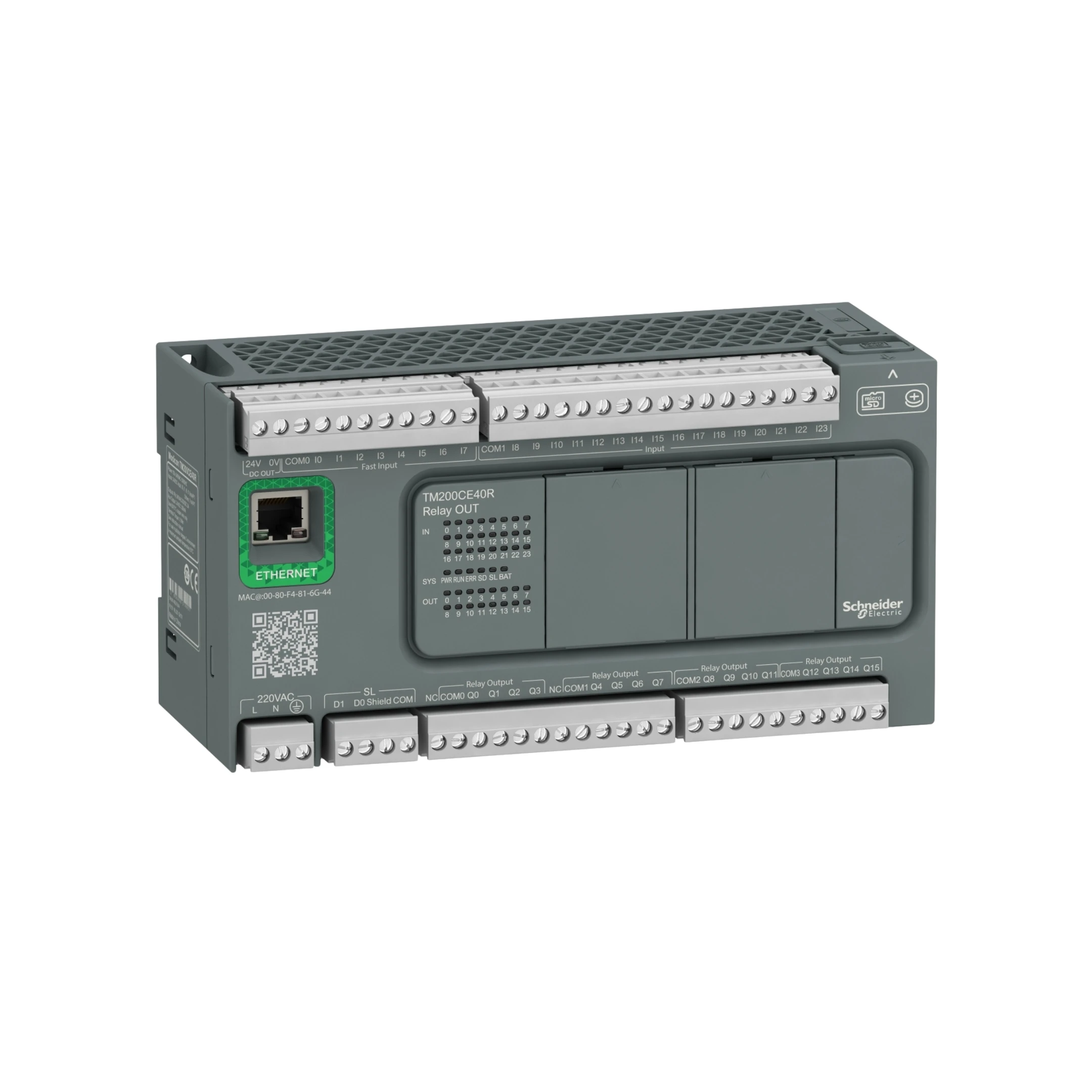

| Model | TM200CE40R |
| Product Range | Easy Modicon M200 |
| Type | Logic Controller |
| Supply Voltage | 24 V DC (control logic) / 100…240 V AC (power) (Schneider Electric) |
| Discrete I/O Points | 40 (Schneider Electric) |
| Digital Inputs | 4 fast, 4 high-speed, 16 regular = 24 total (Schneider Electric) |
| Digital Outputs | 16 relay outputs (normally open) (Schneider Electric) |
| Output Type | Electromechanical Relay (Schneider Electric) |
| Discrete Input Voltage | 24 V DC (Schneider Electric) |
| Discrete Output Voltage | 24 V DC / 220 V AC (Schneider Electric) |
| Discrete Output Current | 2 A per output (Schneider Electric) |
| Communication Interfaces | Ethernet (Modbus TCP/IP), USB, RS485, RS232/RS485 (Schneider Electric) |
| Memory | 512 byte internal flash; micro SD up to 32 GB (Schneider Electric) |
| Mounting | DIN-rail (IEC 60715) (Schneider Electric) |
| Protection Rating | IP20 (Schneider Electric) |

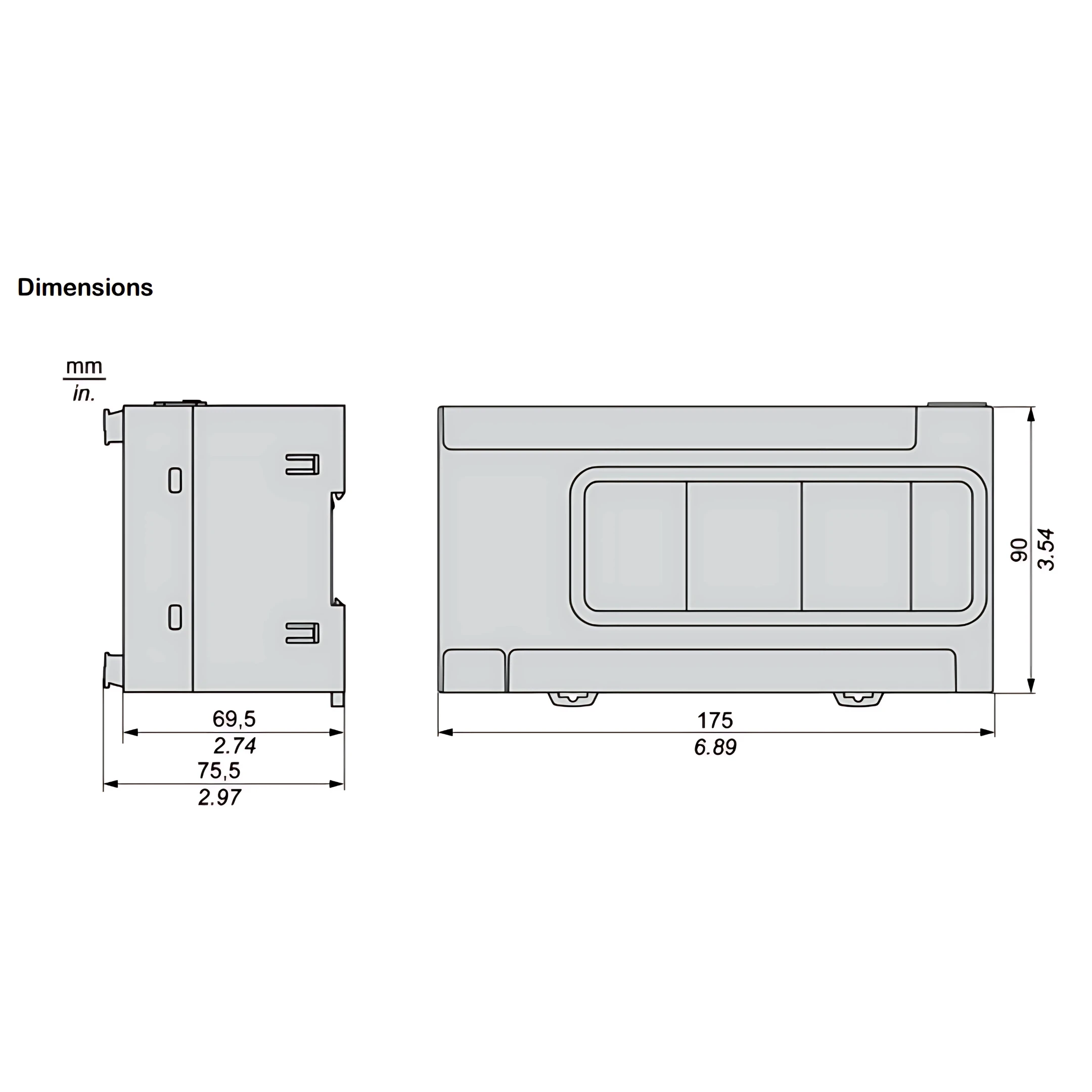

| Dimensions (W×H×D) | 175 × 90 × 70 mm (Schneider Electric) |
| Certifications | CE, CSA, RCM, CULus; IEC 61010-2-201 & IEC 61131-2 compliant (Schneider Electric) |
