Product Specification
| Parameter | Specification |
|---|---|
| Model | TM200CE40U |
| Series | Easy Modicon M200 |
| Product Type | Logic Controller |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Limits | 20.4…28.8 V |
| Total Discrete I/O | 40 |
| Digital Inputs | 4 fast + 4 high speed + 16 regular inputs |
| Digital Outputs | 2 fast + 14 transistor outputs |
| Discrete Input Voltage | 24 V DC |
| Discrete Input Current | 7 mA |
| Discrete Output Voltage | 24 V DC |
| Discrete Output Current | 0.5 A |
| Output Type | Transistor (sink) |
| Logic Type | Negative logic (sink) |
| Power Consumption | 10 W at 24 V DC |
| Memory | 512 byte internal flash |
| External Memory | Micro SD (up to 32 GB) |
| Communication Ports | Ethernet (Modbus TCP/IP), USB mini-B, RS485, RS232/RS485 |
| Mounting | DIN rail |
| Protection Rating | IP20 |
| Operating Temperature | 0…55 °C |

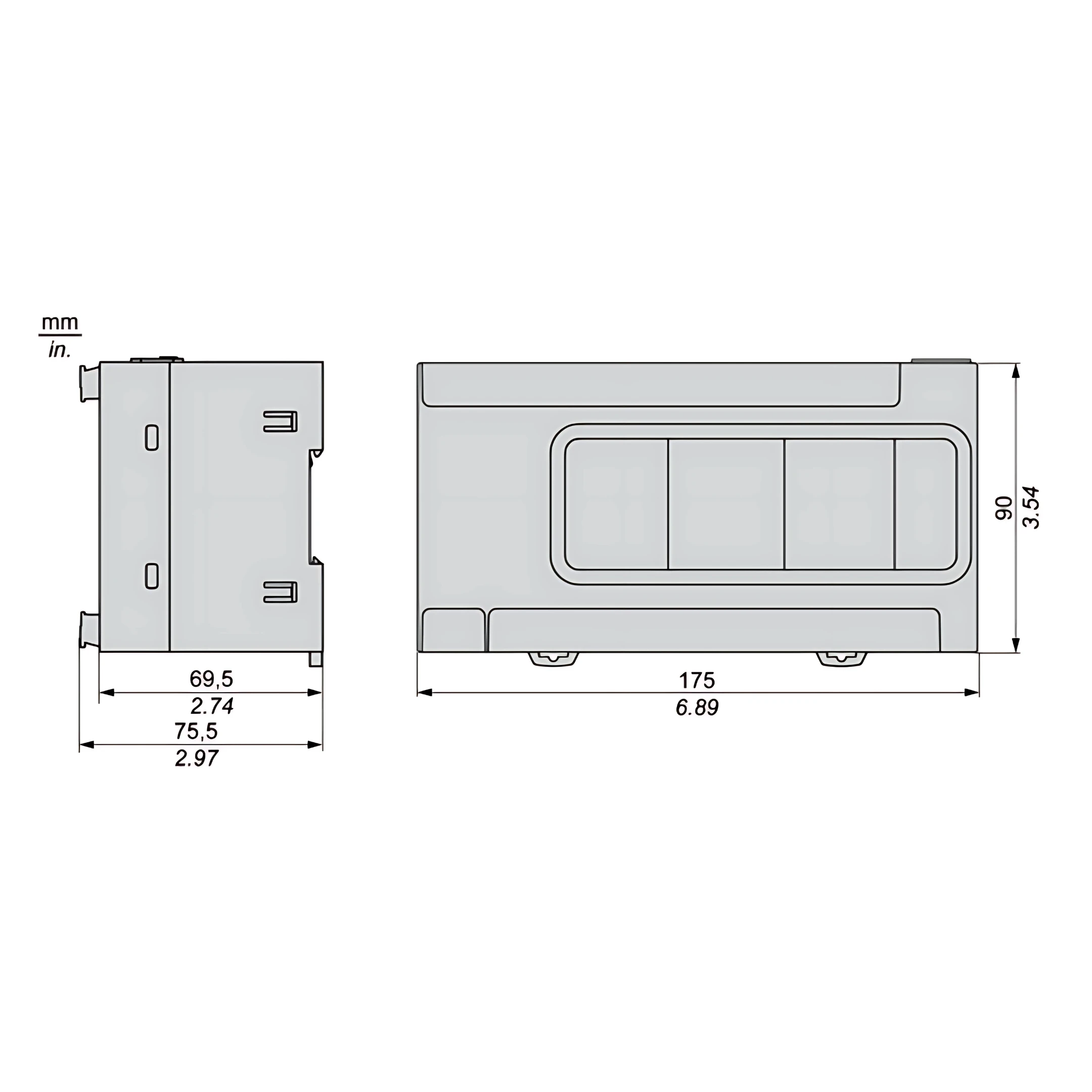

| Dimensions (W × H × D) | 175 × 90 × 70 mm |
| Weight | ~0.483 kg |
| Certifications | CE, CSA, RCM, CULus |
| Standards | IEC 61131-2, IEC 61010-2-201 |
