Product Specification
| Parameter | Specification |
|---|---|

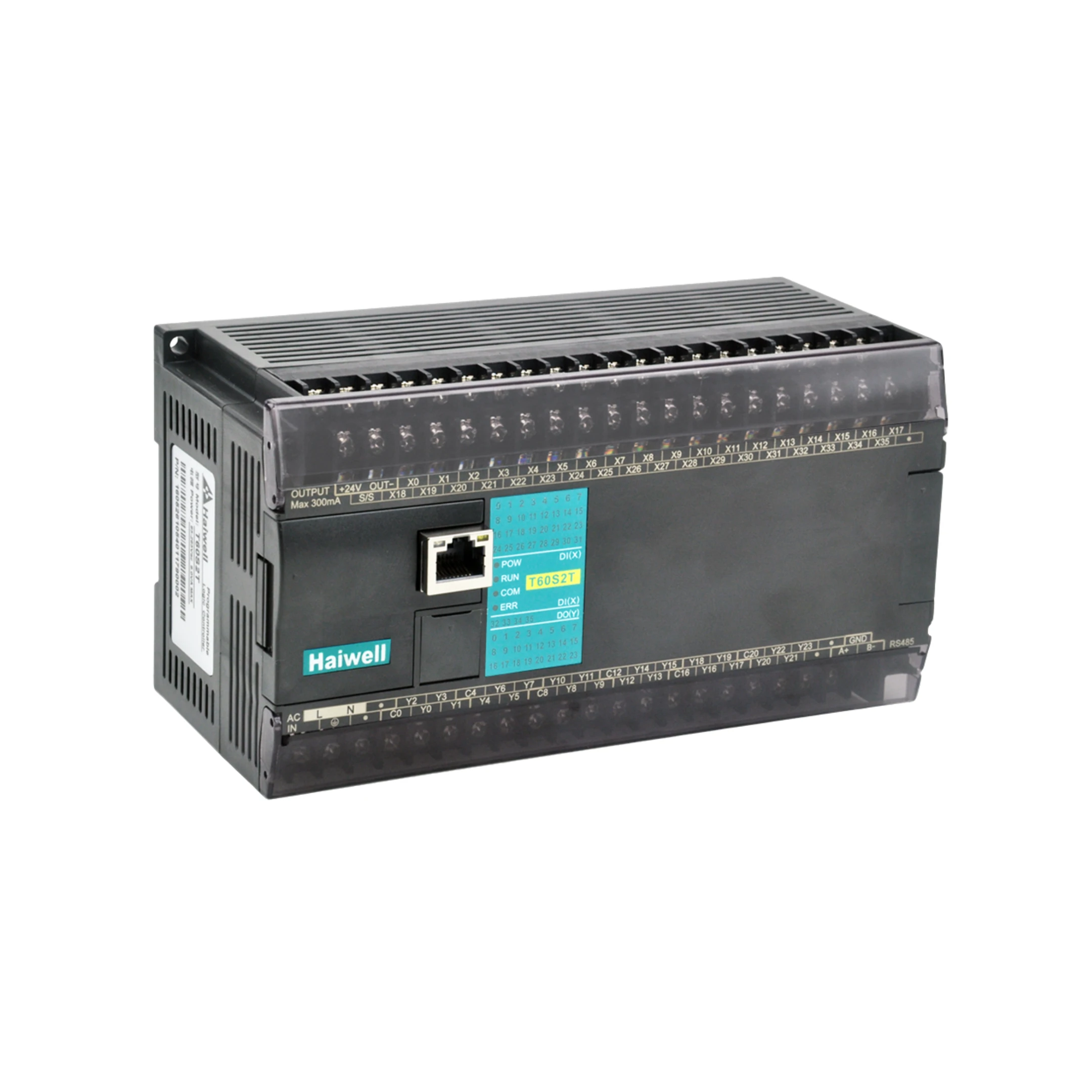

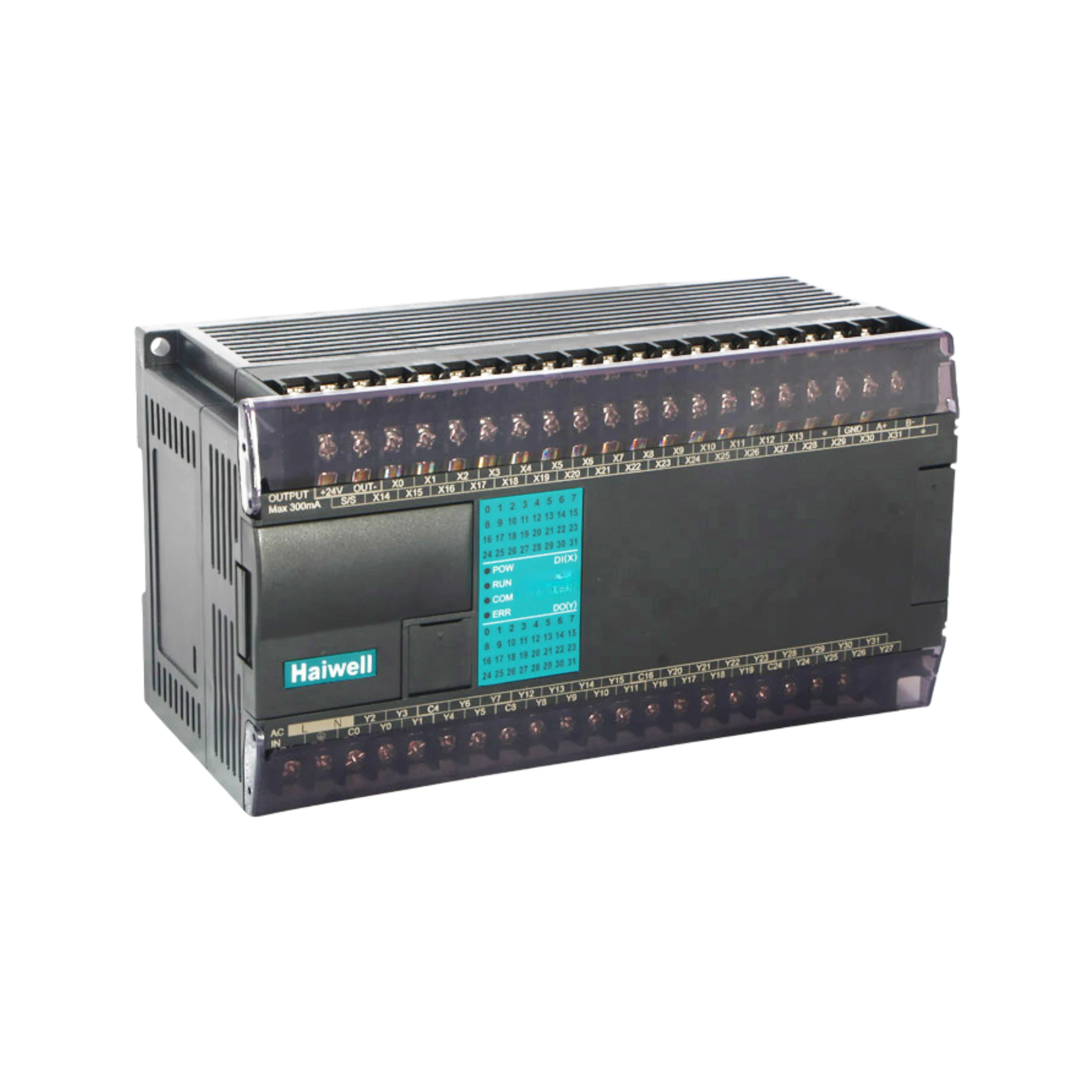

| Model | T60S2R |
| Series | Haiwell T Series Classic PLC |
| Type | PLC MPU |
| Power Supply | 24 V DC (-15 % ~ +20 %) (Haiwell) |
| Power Consumption | 16.5 W (Typical) (Haiwell) |
| Digital Inputs | 36 DI, 24 V DC (Haiwell) |
| Digital Outputs | 24 DO, Relay (voltage-free) (Link Automation) |
| Output Load | Up to 250 VAC (relay contacts) (Link Automation) |
| Communication | RS-232 + RS-485 (serial) (Haiwell) |
| High-Speed Inputs | 2 A/B phase (4 points) 200 kHz (motion/pulse) (Haiwell) |
| Max Communication Ports | RS-232 + RS-485 up to 5 ports (Haiwell) |
| Mounting | DIN rail / Panel mount (Haiwell) |
| Operating Temp. | 0…55 °C (Haiwell) |
| Storage Temp. | -25…70 °C (Haiwell) |
| Dimensions (W × H × D) | 131 × 95 × 82 mm (Haiwell) |
