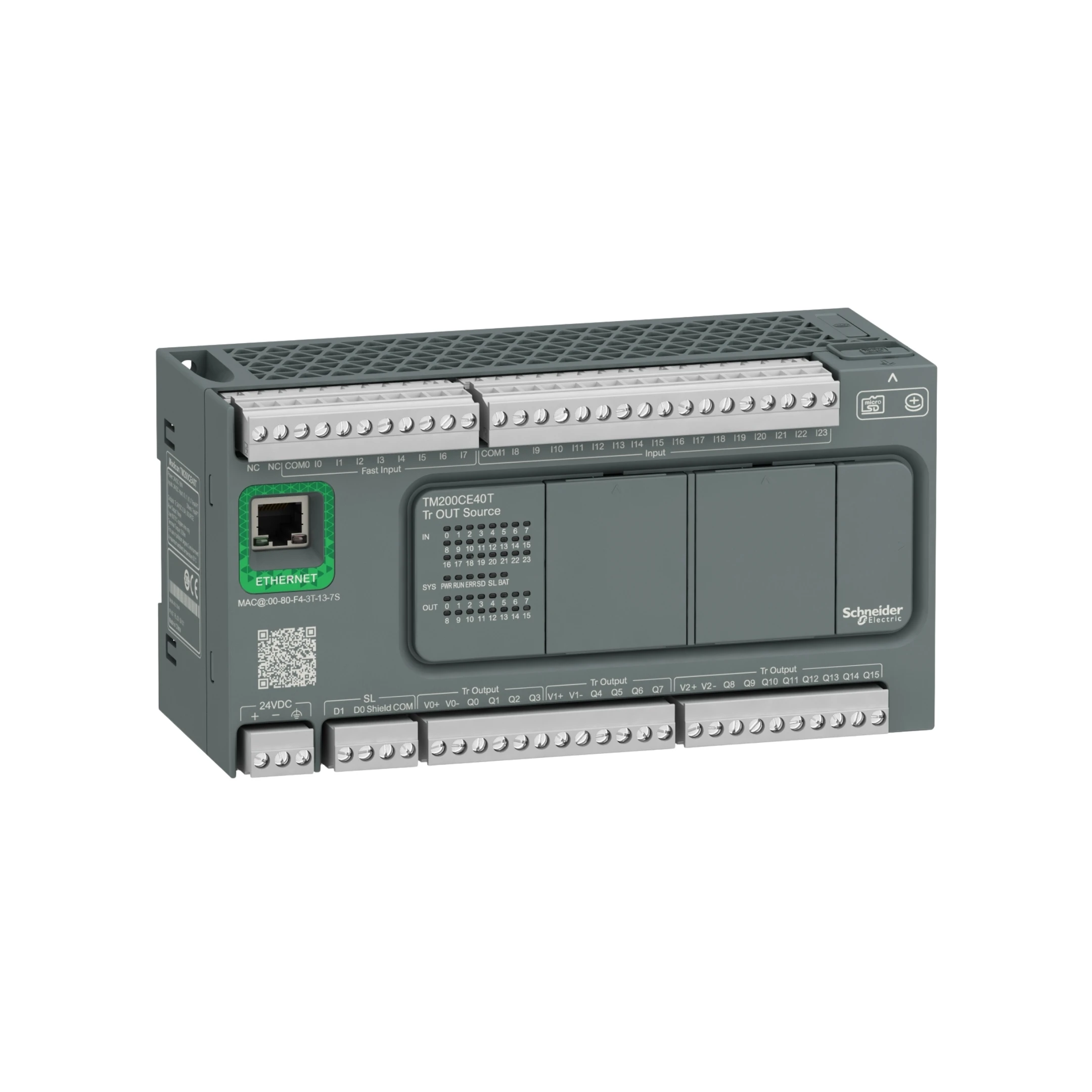

Schneider Electric TM200CE40T Logic Controller | DC 24V | 0.5A Transistor Output | 40 I/O with Ethernet
The Schneider Electric TM200CE40T Logic Controller is a compact PLC from the Easy Modicon M200 series designed for reliable industrial automation and machine control applications. It features 40 discrete I/O points with 24 digital inputs and 16 source transistor outputs, suitable for high-speed and standard control operations. The controller operates on a 24 V DC supply and includes built-in Ethernet for Modbus TCP communication, along with USB and serial interfaces for flexible integration. With support for high-speed inputs and fast outputs, it enables efficient handling of positioning, counting, and logic control tasks. The modular design supports expansion and offers dependable performance for small to mid-sized automation systems.

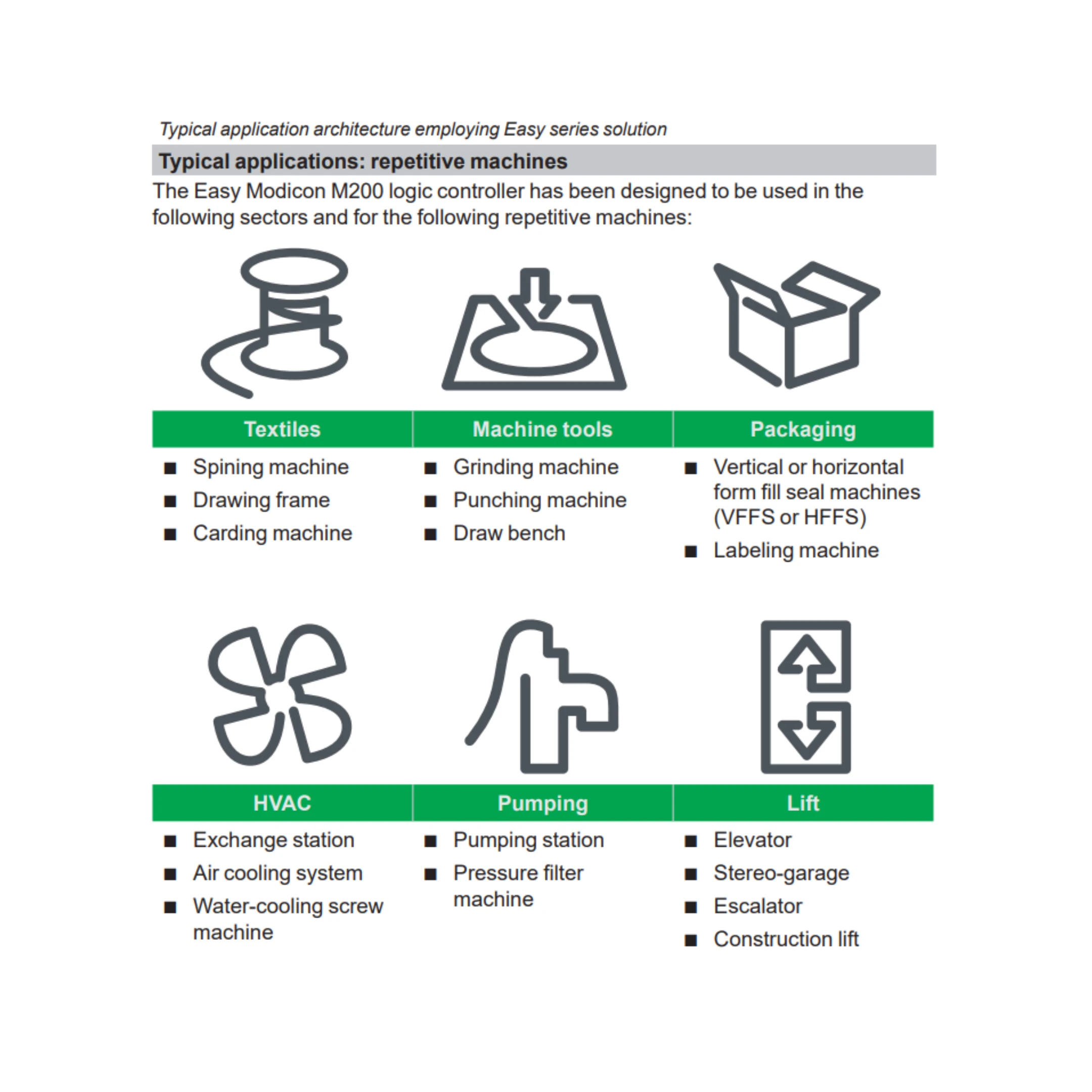

Application:
| Parameter | Specification |
|---|---|
| Model | TM200CE40T |
| Product Range | Easy Modicon M200 |
| Type | Logic Controller |
| Supply Voltage | 24 V DC |
| Discrete I/O Points | 40 |
| Digital Inputs | 24 (including fast and high-speed inputs) |
| Digital Outputs | 16 (Transistor Source) |
| Output Current | 0.5 A per output |
| Communication | Ethernet (Modbus TCP), USB, RS232/RS485 |
| Memory Support | Micro SD card up to 32 GB |
| Mounting | DIN Rail |
| Protection Rating | IP20 |

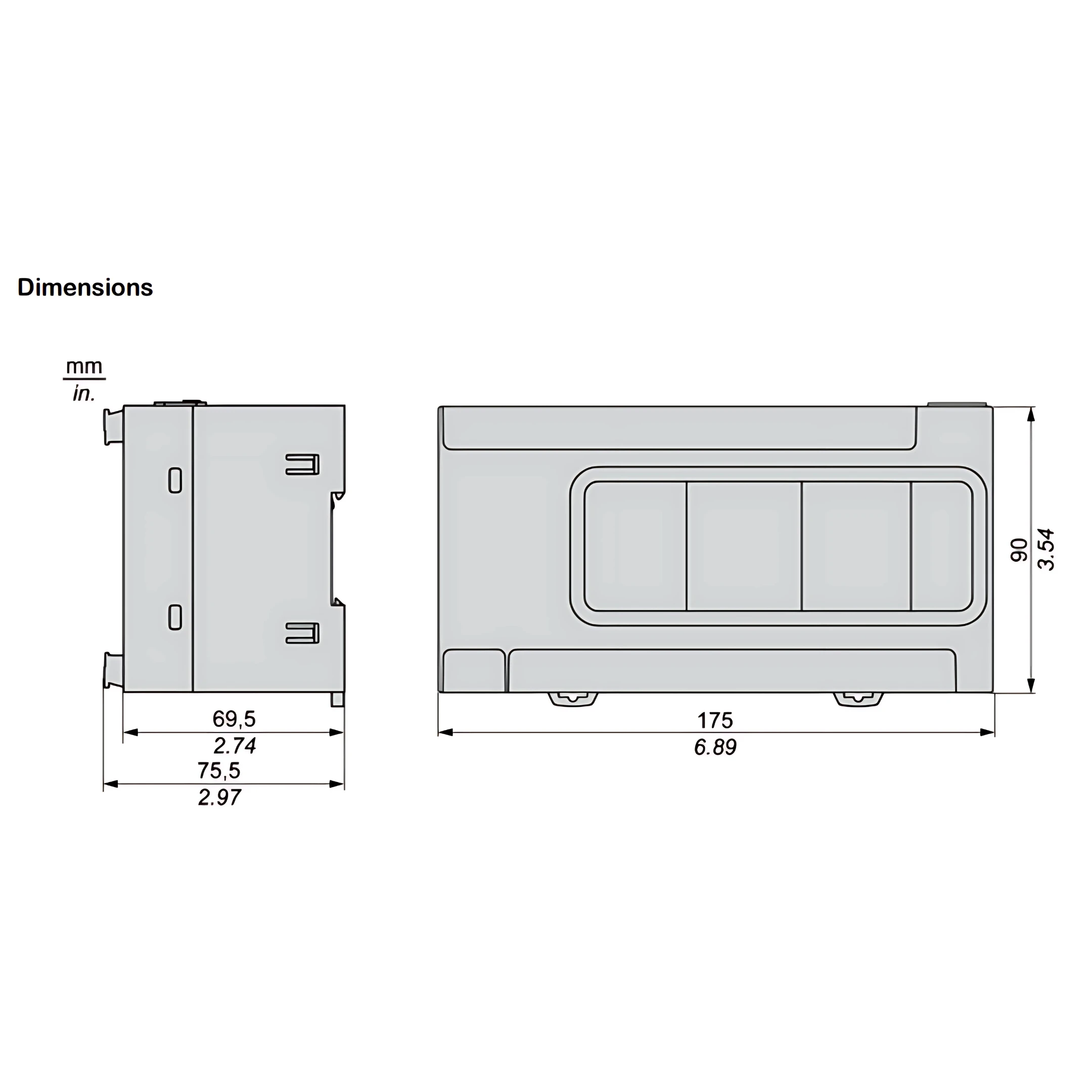

| Dimensions (W x H x D) | 175 x 90 x 70 mm |
