Product Specification
| Parameter | Specification |
|---|---|

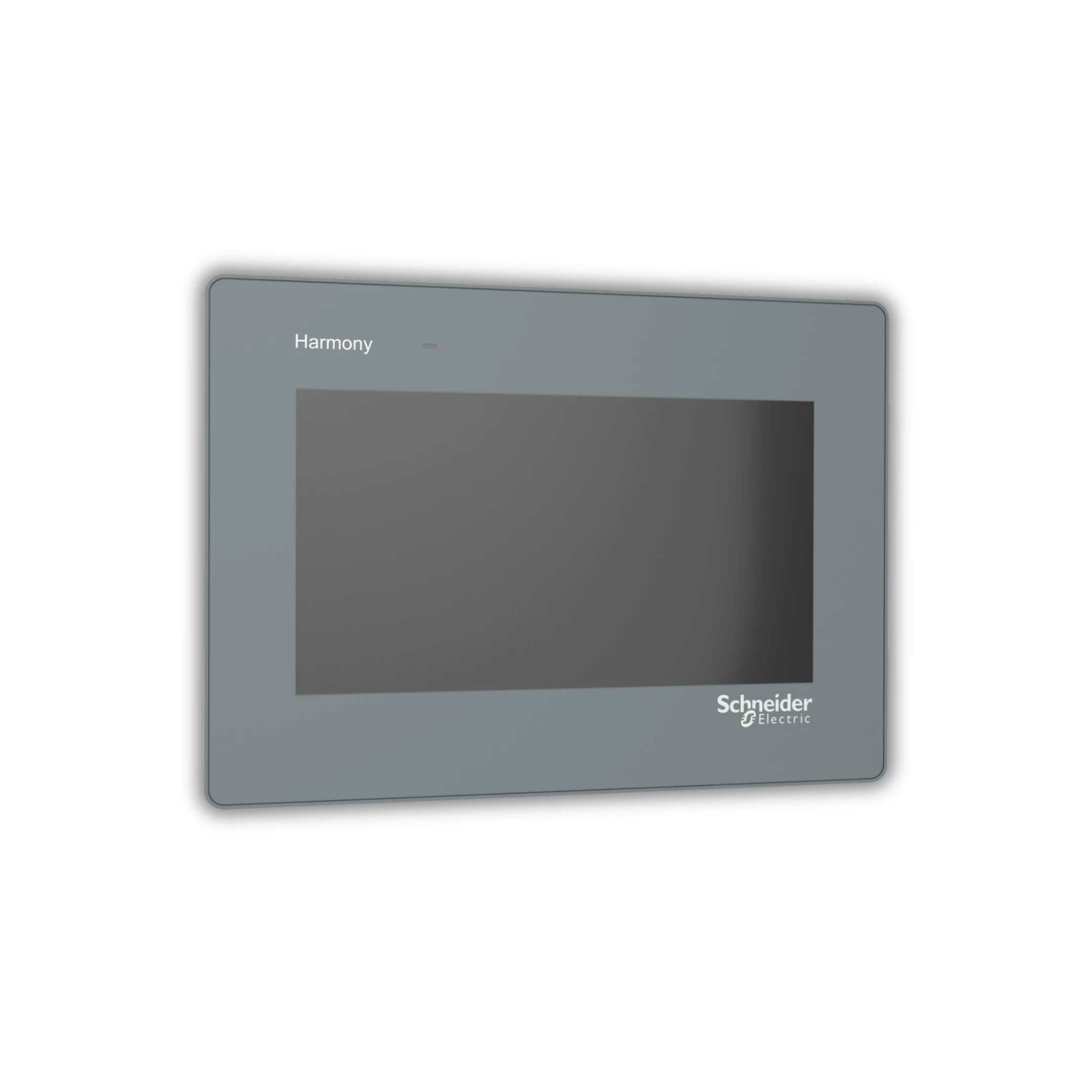

| Model | HMIET6400 |
| Series | Easy Harmony ET6 |
| Product Type | Touch Panel |

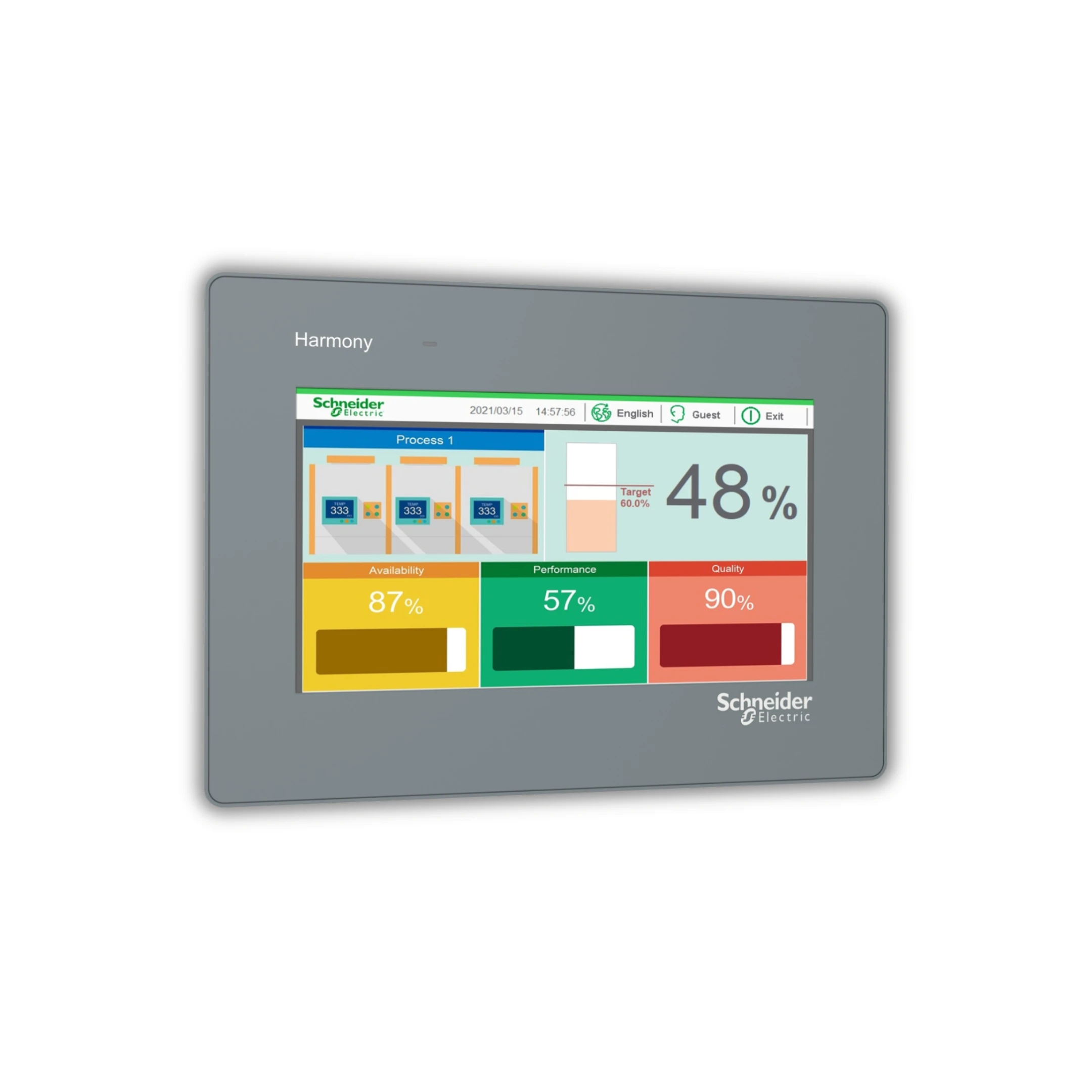

| Display Size | 7″ wide screen |
| Display Type | Colour TFT LCD |
| Display Colours | 16 million colours |
| Resolution | 800 × 480 pixels (WVGA) |
| Touch Panel | Single touch analogue resistive |
| Processor | ARM Cortex-A8 |
| Processor Frequency | 800 MHz |
| Software | Vijeo Designer Basic |
| Rated Supply Voltage | 24 V DC ±20 % |
| Power Consumption | 9 W |
| Communication Ports | 2 × COM (RS-232C / RS-422/485), 1 × Ethernet 10/100BASE-T, 1 × USB 2.0 Type A, 1 × USB 2.0 Micro-B |
| Real-Time Clock | Built-in (RTC) |
| Memory | Device memory 256 MB; User data memory 256 MB; Backup memory 128 KB |
| Panel Cut-Out | 190 × 135 mm |
| Mounting | Panel mount (4 screws) |
| Protection Rating | IP65 front; IP20 rear |
| Operating Temperature | 0…50 °C |
| Operating Humidity | 10…90 % non-condensing |
| Shock Resistance | 147 m/s² |
| Vibration Resistance | ±3.5 mm (5–9 Hz) / 9.8 m/s² (9–150 Hz) |

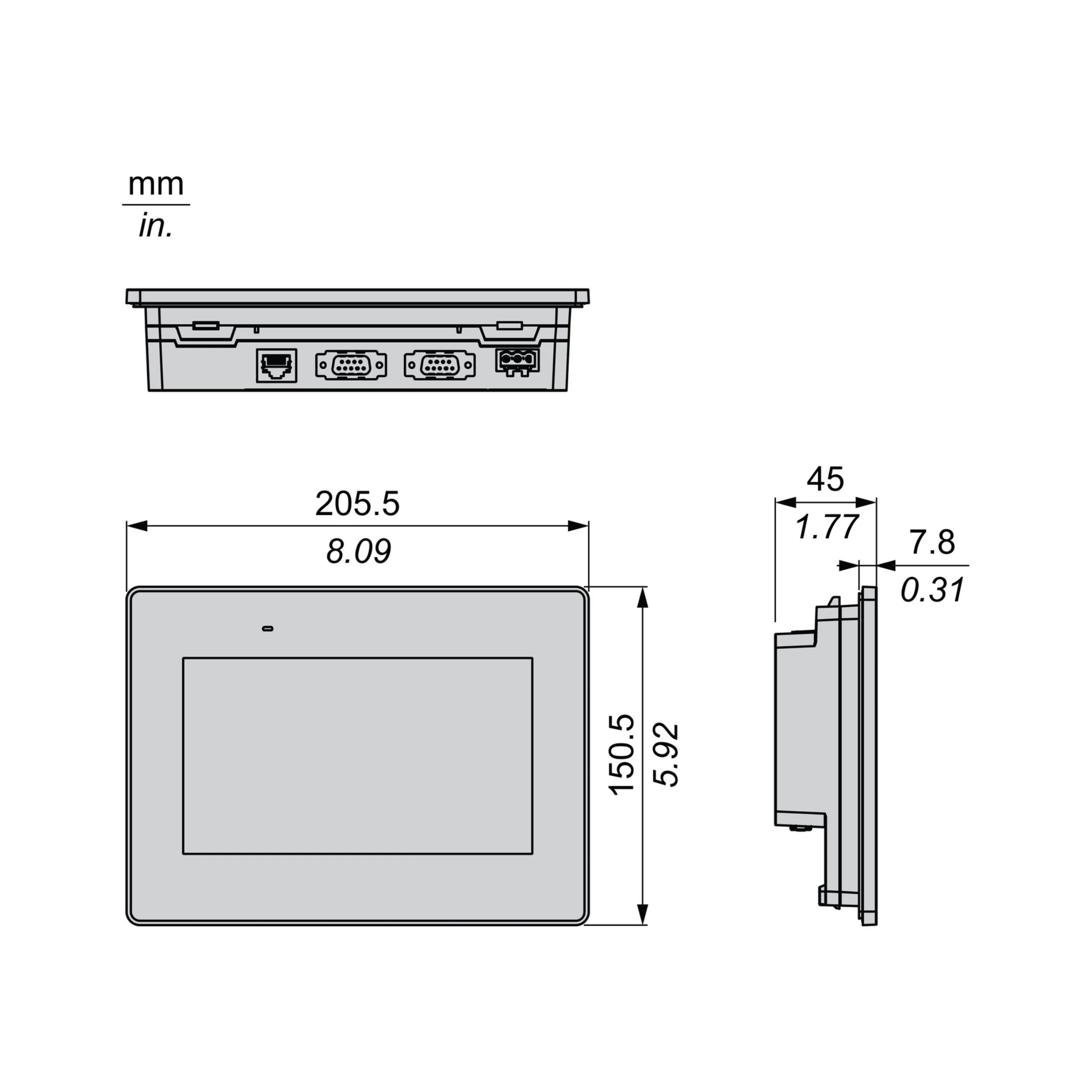

| Dimensions (W × H × D) | 206 × 151 × 45 mm |
| Weight | ~0.61 kg |
| Standards | EN 61000-6-4, EN 61000-6-2, EN 61131-2, UL 61010-2-201, CSA C22.2 No 61010-1-201 |
| Certifications | CE, UL, EAC (pending), KC-Mark (pending) |
