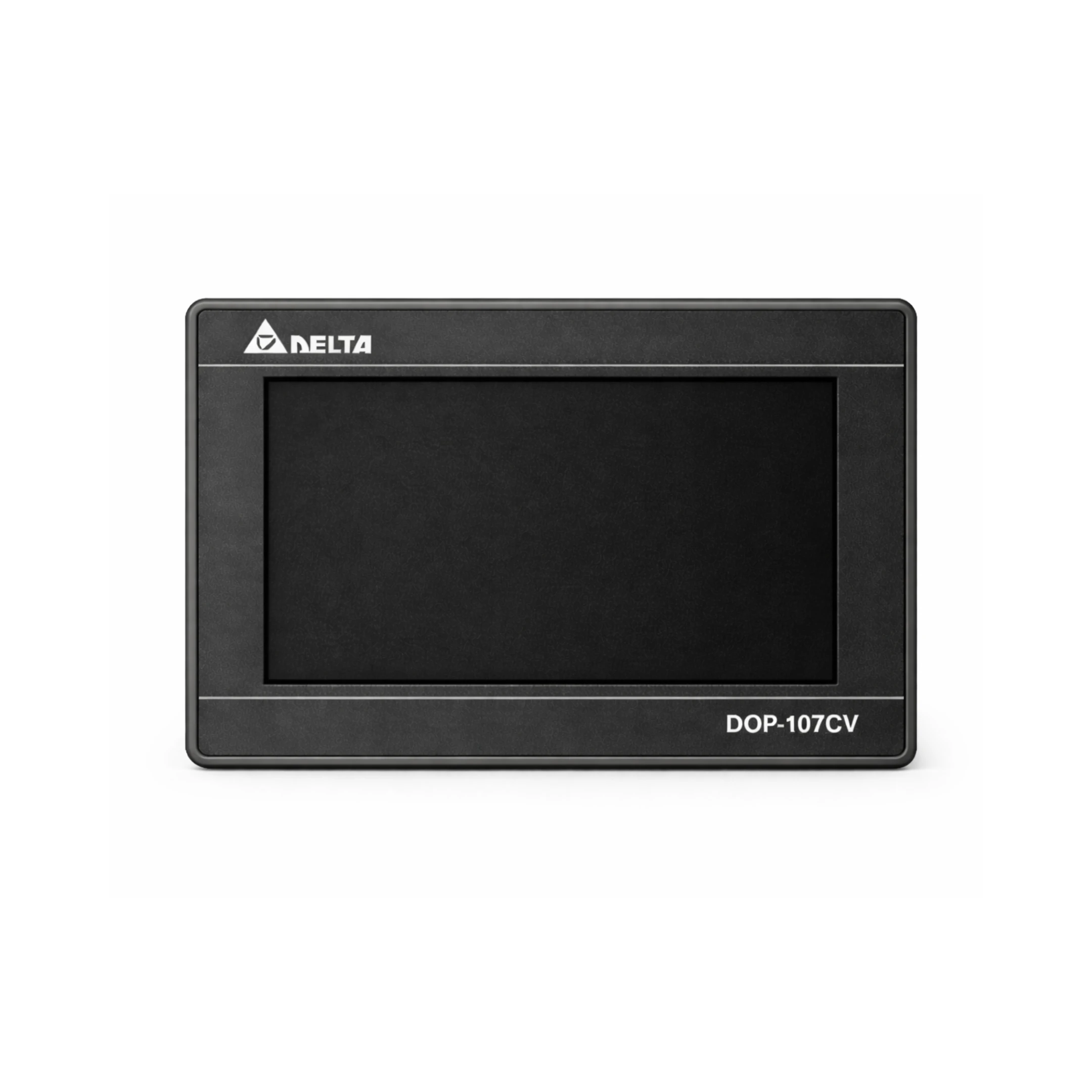

Delta DOP-107CV Human Machine Interface
Delta DOP-107CV Human Machine Interface - Image 2
Delta DOP-107CV Human Machine Interface - Image 3
Delta DOP-107CV Human Machine Interface - Image 4

Delta DOP-107CV Human Machine Interface

Delta DOP-107CV HMI | DC 24V | 7″ Capacitive Touch | Ethernet + Serial + USB

Categories:, Tags:, , , , , , , , , , , , , , , Brand:

Description

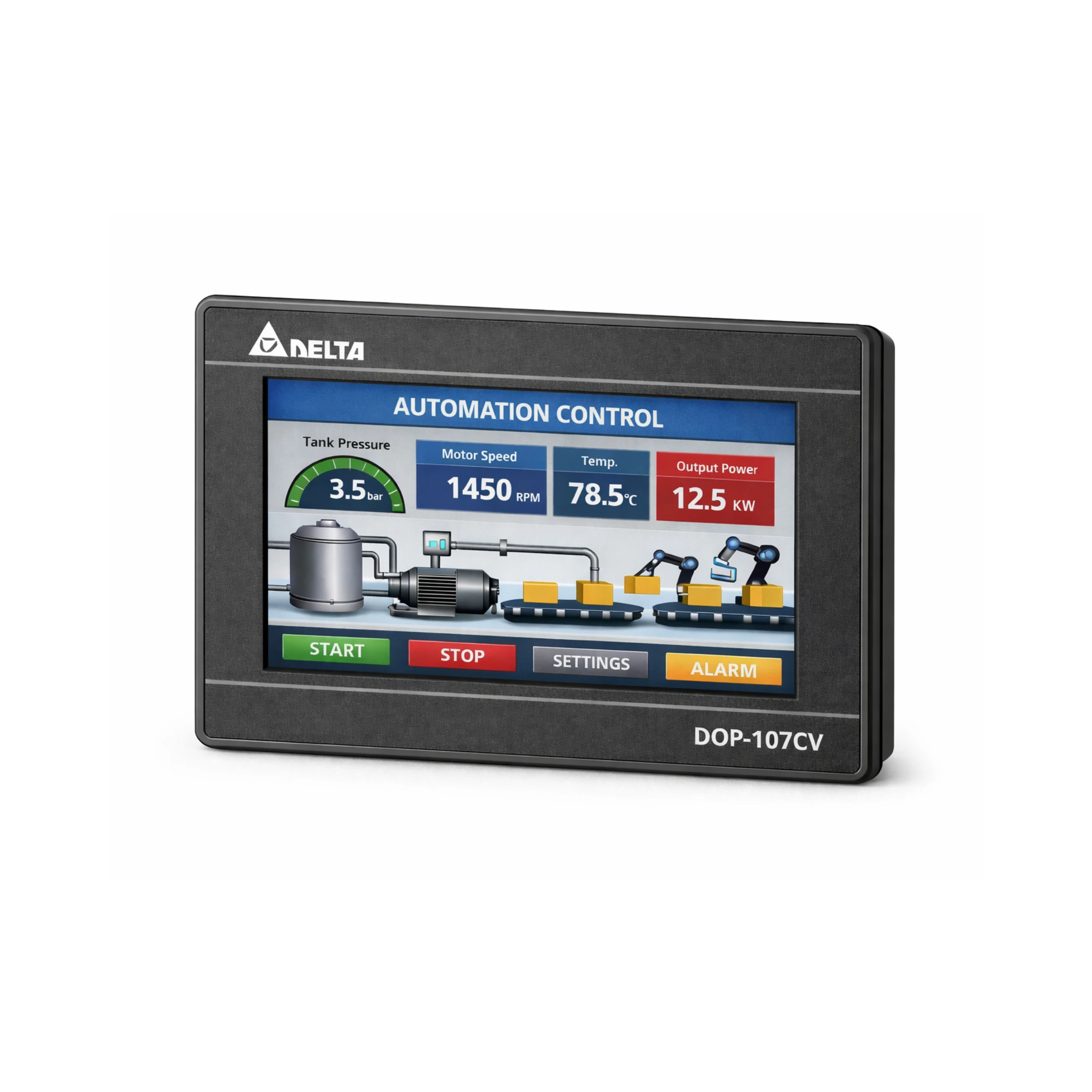

The Delta DOP-107CV Human Machine Interface is a 7-inch industrial touch panel from the DOP-100 C-Type series designed for machine visualization and control applications. It features an 800 × 480 TFT LCD display with 65,536 colors, delivering clear and responsive graphical performance. Powered by a Cortex-A8 processor with 256 MB RAM and 256 MB ROM, it ensures smooth operation for industrial HMI applications. The unit supports Ethernet, serial communication ports, and USB Host/Client interfaces for flexible PLC and device connectivity. With IP65 front panel protection and a 24 V DC power supply, it is suitable for demanding automation environments.

Application:

  • Machine Control & Monitoring
  • Packaging Industry
  • Material Handling Systems
  • Factory Automation Panels
  • Process Control Systems
  • OEM Equipment Manufacturing
Product Specification
Parameter Specification
Model DOP-107CV
Brand Delta

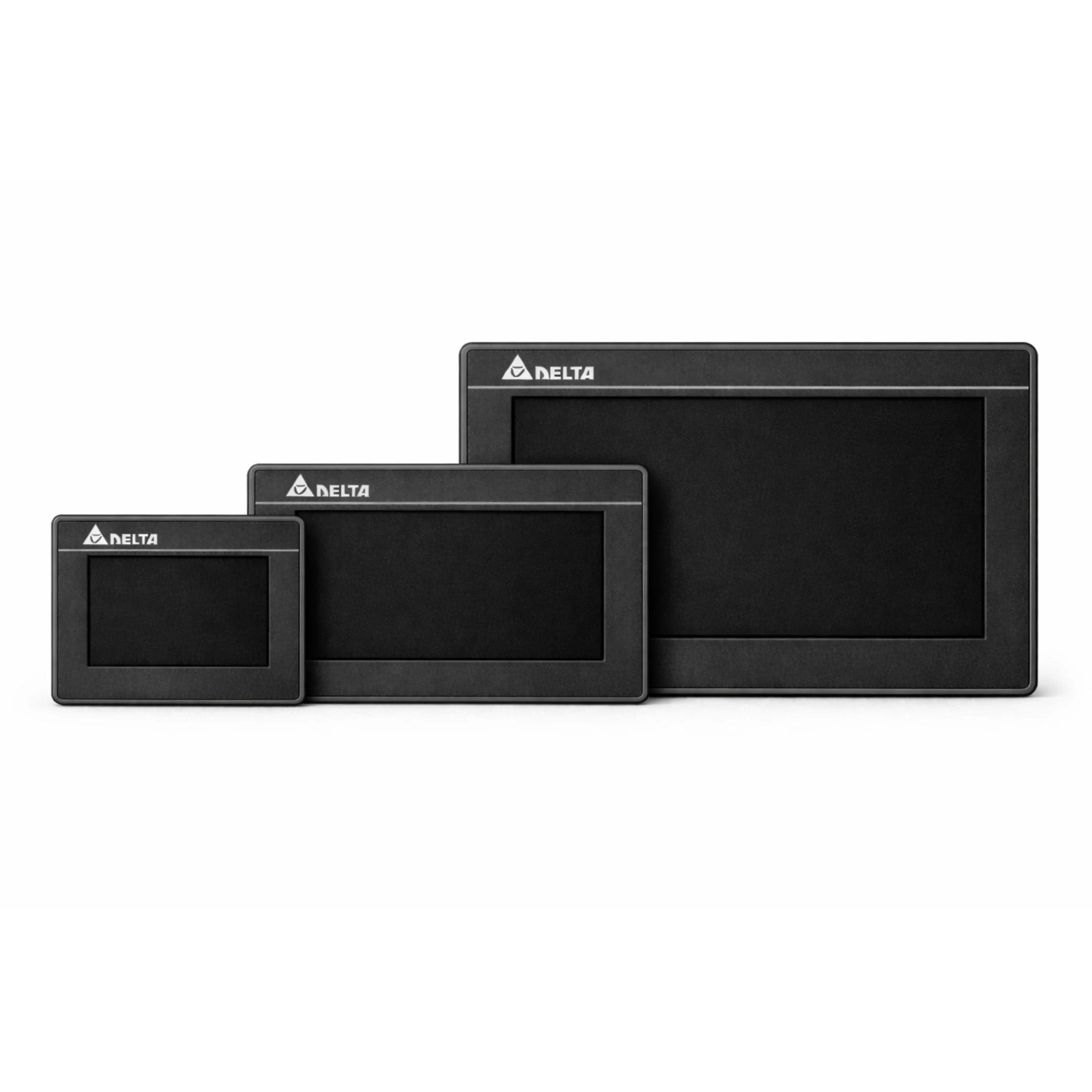

Series DOP-100 C-Type
Type Human Machine Interface
Display Size 7″ TFT LCD
Resolution 800 × 480 pixels
Display Colors 65,536
CPU Cortex-A8 800 MHz
RAM 256 MB
ROM 256 MB
Touch Type Capacitive Touch

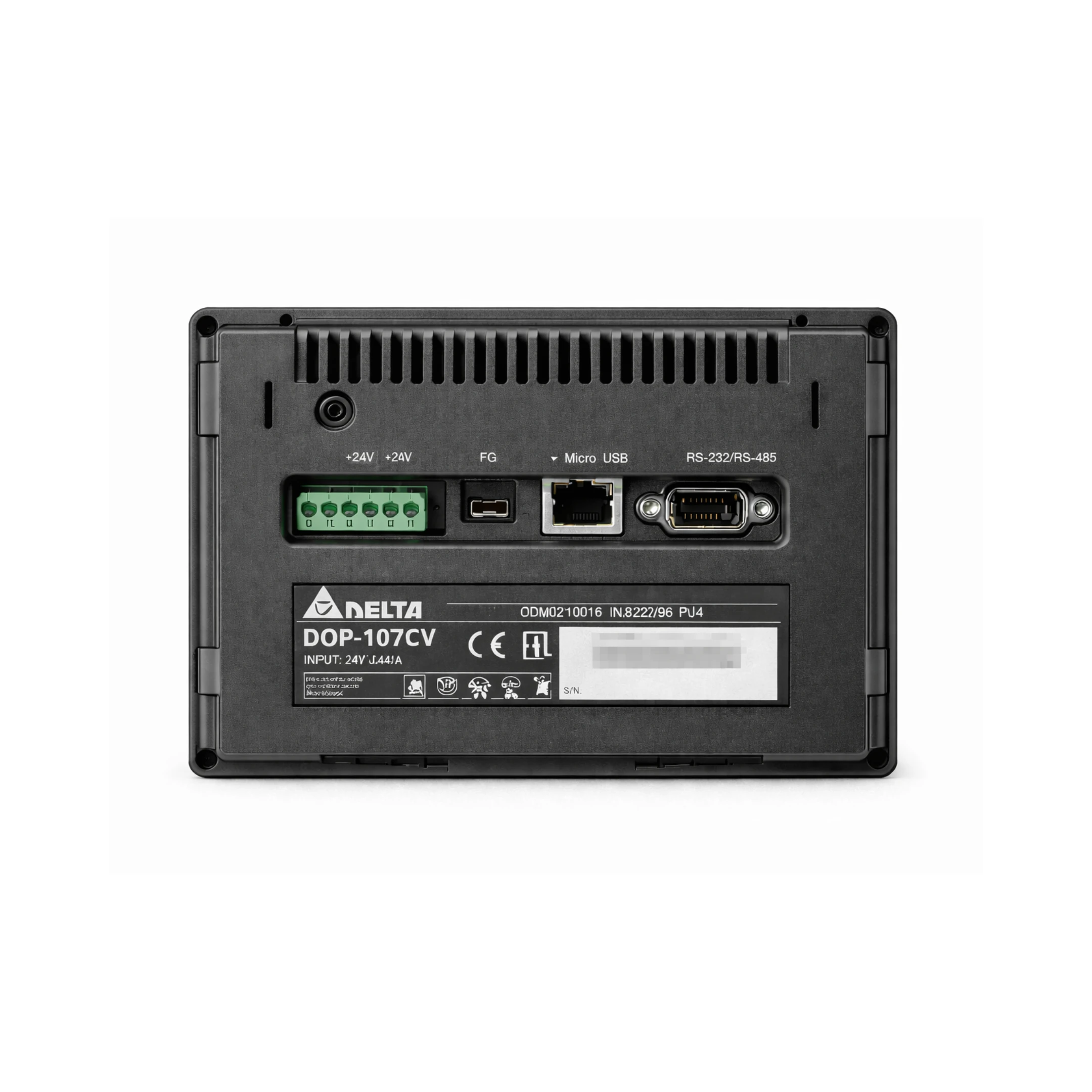

Ethernet 1 × 10/100 Mbps
Serial Ports 2 × COM (RS-232/RS-422/RS-485 configurable)
USB Ports 1 × USB Host, 1 × USB Client
Power Supply 24 V DC
Front Protection IP65 / NEMA 4
Operating Temperature 0 °C to 50 °C
Storage Temperature -20 °C to 60 °C
Mounting Panel Mount
