Product Specification
| Parameter | Specification |
|---|---|

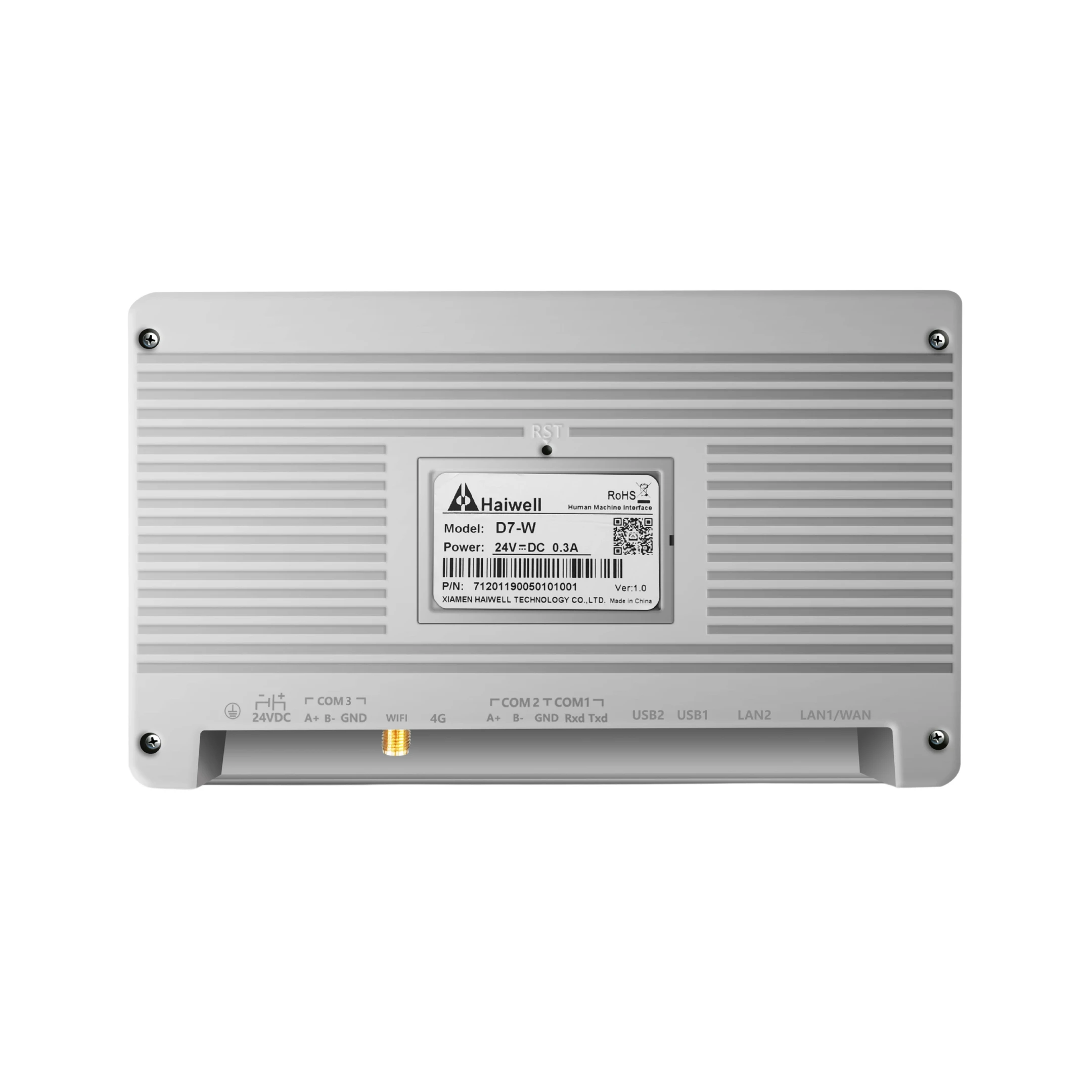

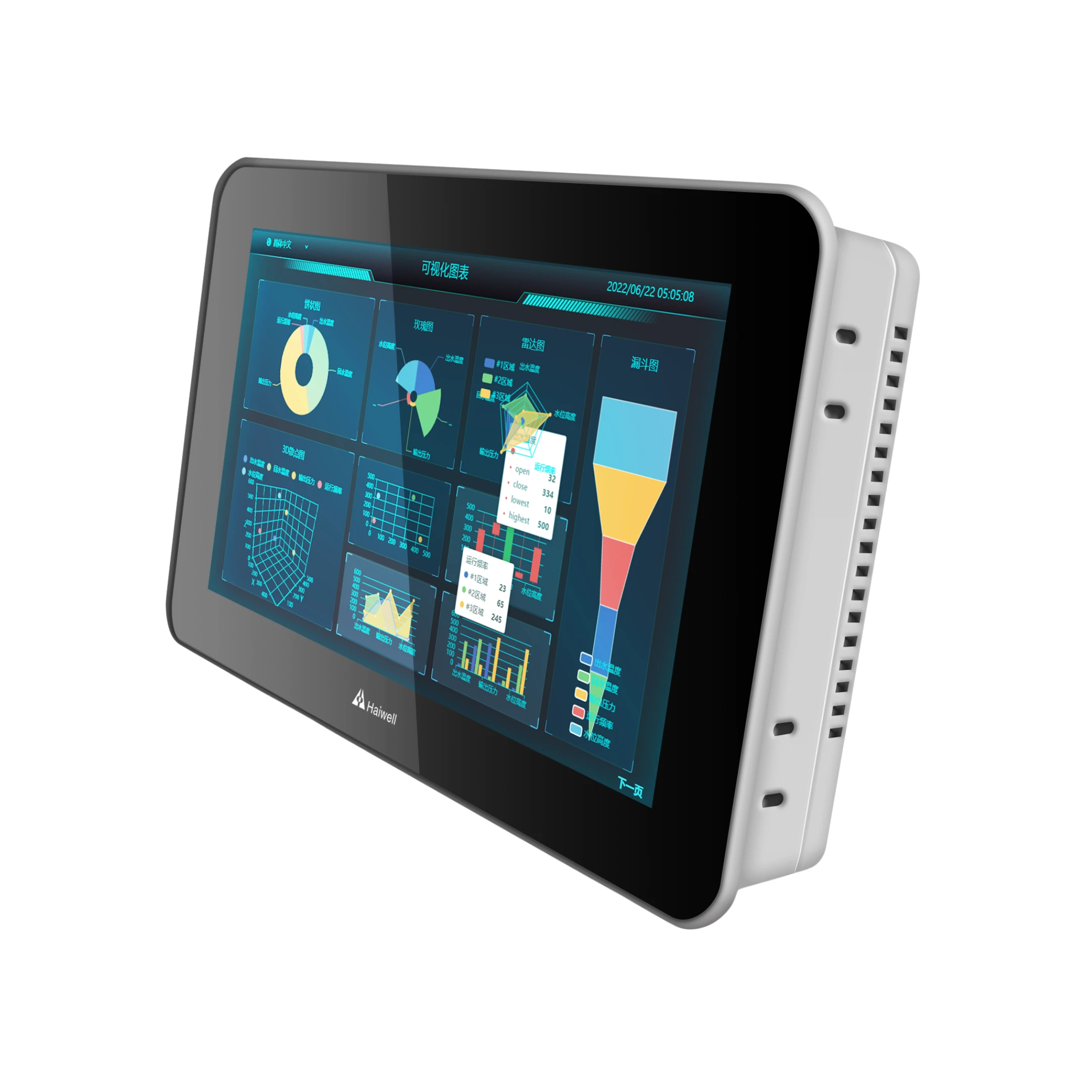

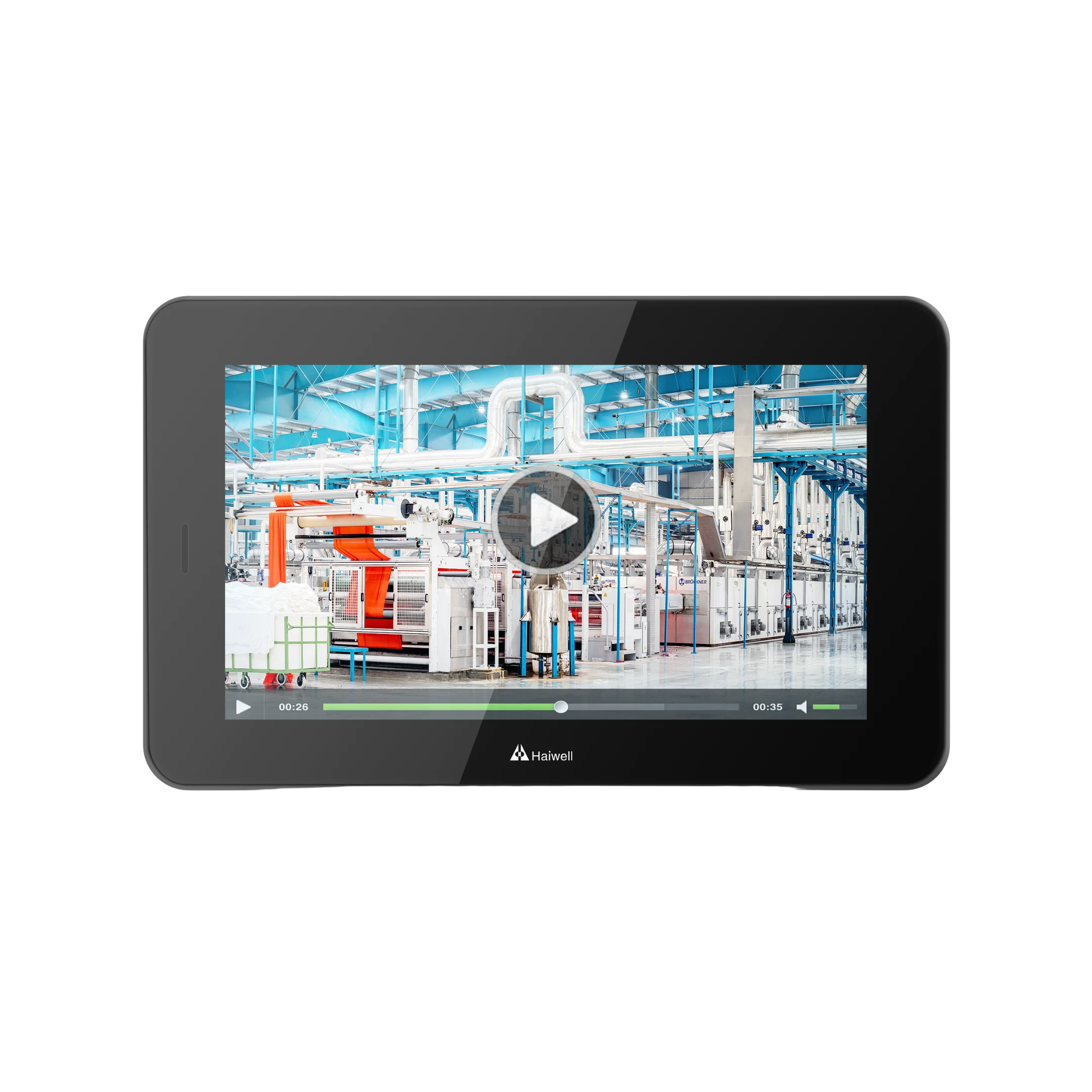

| Model | D7-W |
| Series | D Series Intelligent HMI |
| Product Type | Intelligent HMI / Touch Panel |
| Display Size | 7″ |
| Display Resolution | 1024 × 600 (HD) |
| Display Colours | 16 million colours |
| Touch Type | Capacitive multi-touch |
| Storage | 8 GB Flash + 512 MB RAM |
| LAN | 1 × Ethernet 10/100 Base-T |
| COM Ports | 3 × Serial (RS-232/RS-485) |
| USB Ports | 1 × USB Host + 1 × USB Device |
| Wi-Fi | Built-in (802.11b/g/n) |
| Audio | Built-in speaker |
| Intelligent Features | Remote access, cloud connectivity, IoT protocols |
| Power | 24 V DC |
| Protection Rating | IP65 front |
| Mounting | Panel mount |
| Dimensions (W × H × D) | ~193 × 120 × 33 mm |
| Cut-Out Size | ~187 × 114 mm |
| Shell Material | Aluminium alloy |
| Operating Temp. | Industrial range (standard) |
