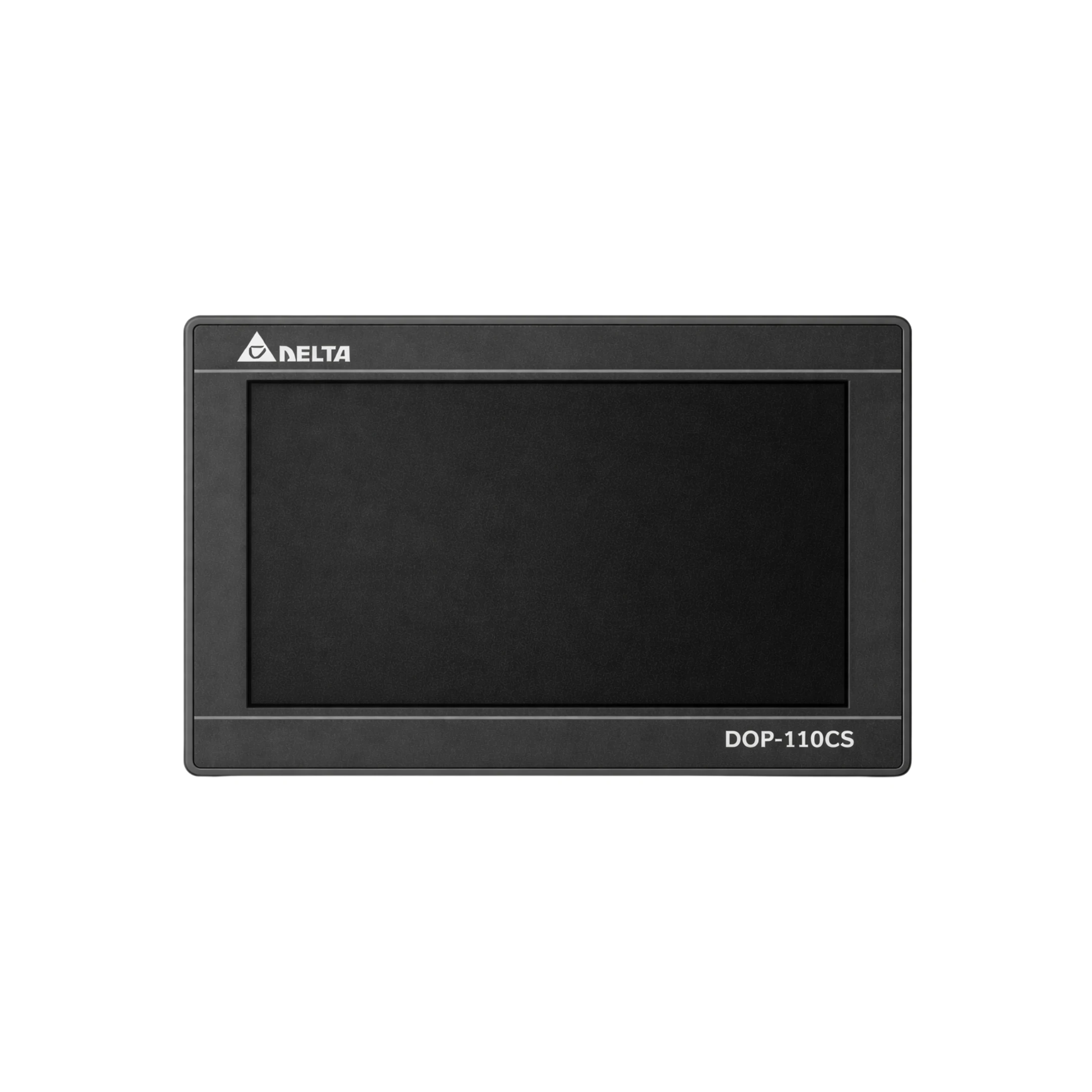

Delta DOP-110CS Human Machine Interface

Delta DOP-110CS HMI | 24 V DC | 10.1″ Capacitive Touch | Serial + Ethernet + USB

Categories:, Tags:, , , , , , , , , , , , , , , , Brand:

Description

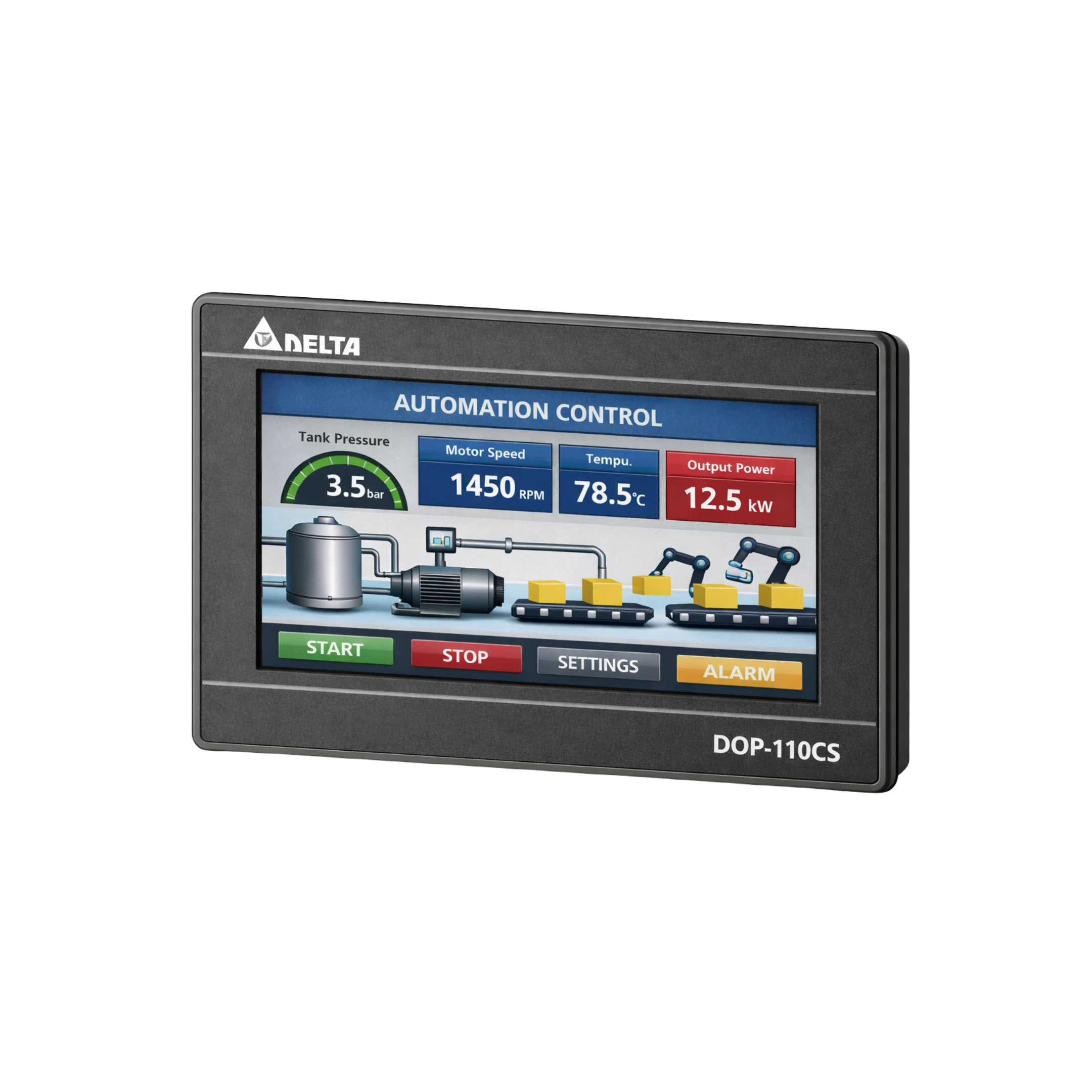

The Delta DOP-110CS Human Machine Interface is a 10.1-inch industrial touchscreen panel designed for operator interaction and visualization in automation systems. Featuring a high-resolution TFT LCD with 65,536 colors and 1024 × 600 resolution, it delivers clear and responsive graphical feedback for monitoring and control. Powered by a Cortex-A8 processor with ample execution performance, it supports smooth operation of HMI applications. The interface includes multiple communication ports such as serial, USB Host and USB Client for flexible connectivity with PLCs and automation devices. With IP65 front protection, robust design and wide temperature tolerance, the DOP-110CS is suited for demanding industrial environments.

Application:

  • Machine Control & Monitoring
  • Packaging & Assembly Automation
  • Material Handling Systems
  • Factory Automation Interfaces
  • Process Control Panels
  • OEM Equipment Interfaces
Product Specification
Parameter Specification
Model DOP-110CS
Brand Delta
Series DOP-100 C-Type HMI
Type Human Machine Interface
Display Size 10.1″ TFT LCD
Display Resolution 1024 × 600 pixels
Display Colors 65,536
CPU Cortex-A8 (800 MHz)
RAM 256 MB
ROM 256 MB
Touch Type Capacitive Touch

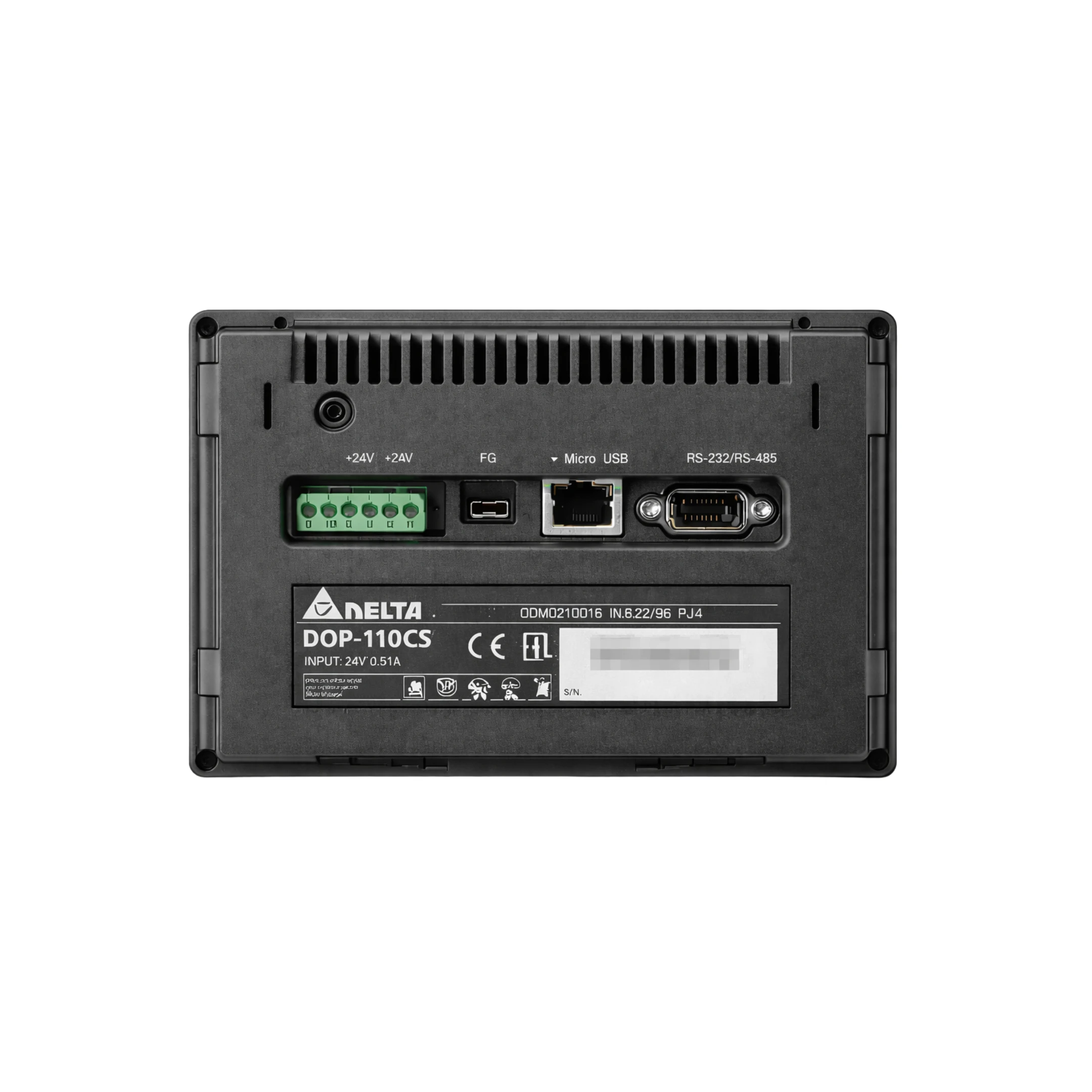

Serial Ports 2 × COM (configurable)
USB Ports 1 × USB Host, 1 × USB Client
Ethernet 1 × 10/100 Mbps Ethernet
Panel Protection IP65 / NEMA 4
Power Supply 24 V DC
Operating Temperature 0 °C … 50 °C
Storage Temperature –20 °C … 60 °C
Certifications CE / UL / RoHS
Mounting Panel Mount
