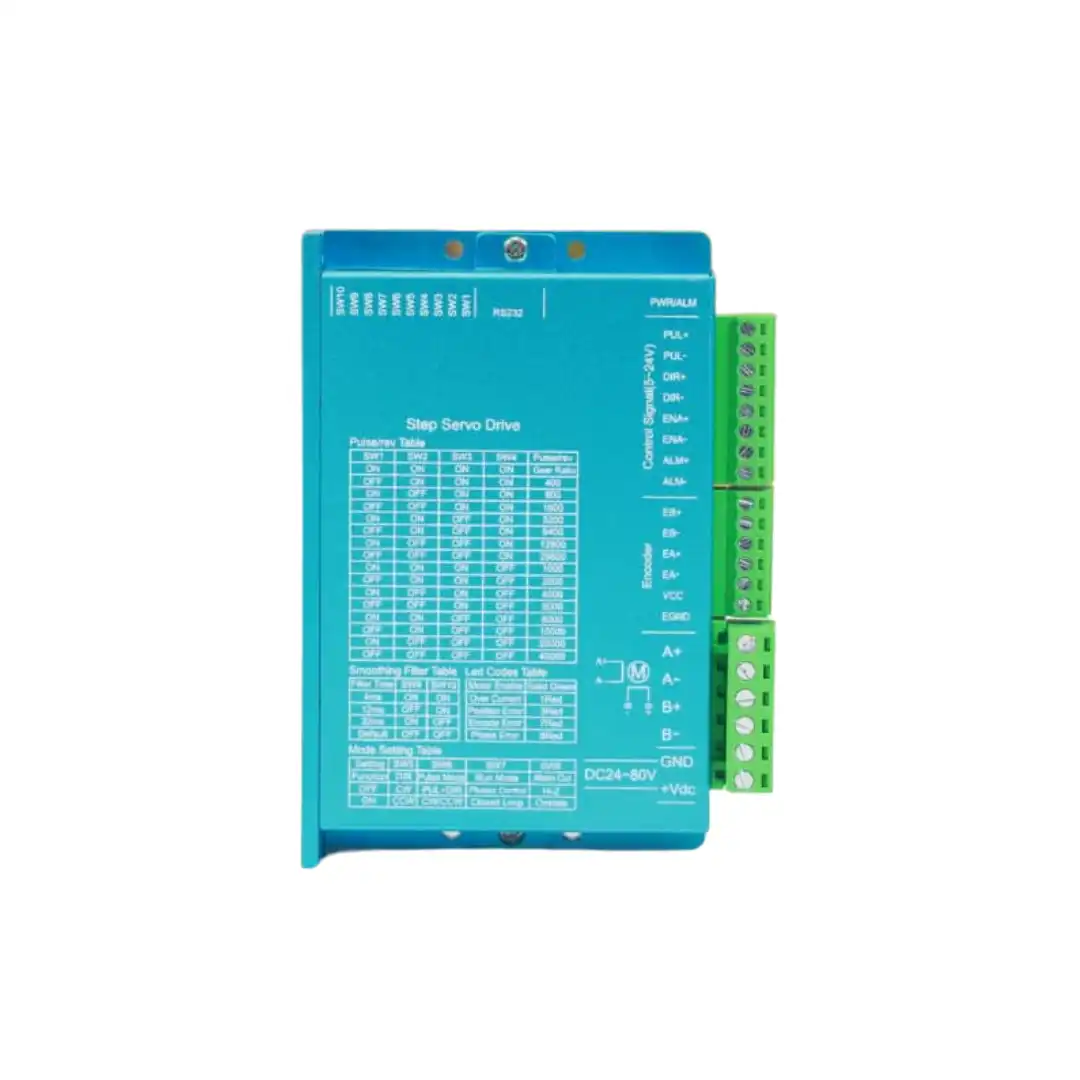

SL57D – Digital Step Servo Driver

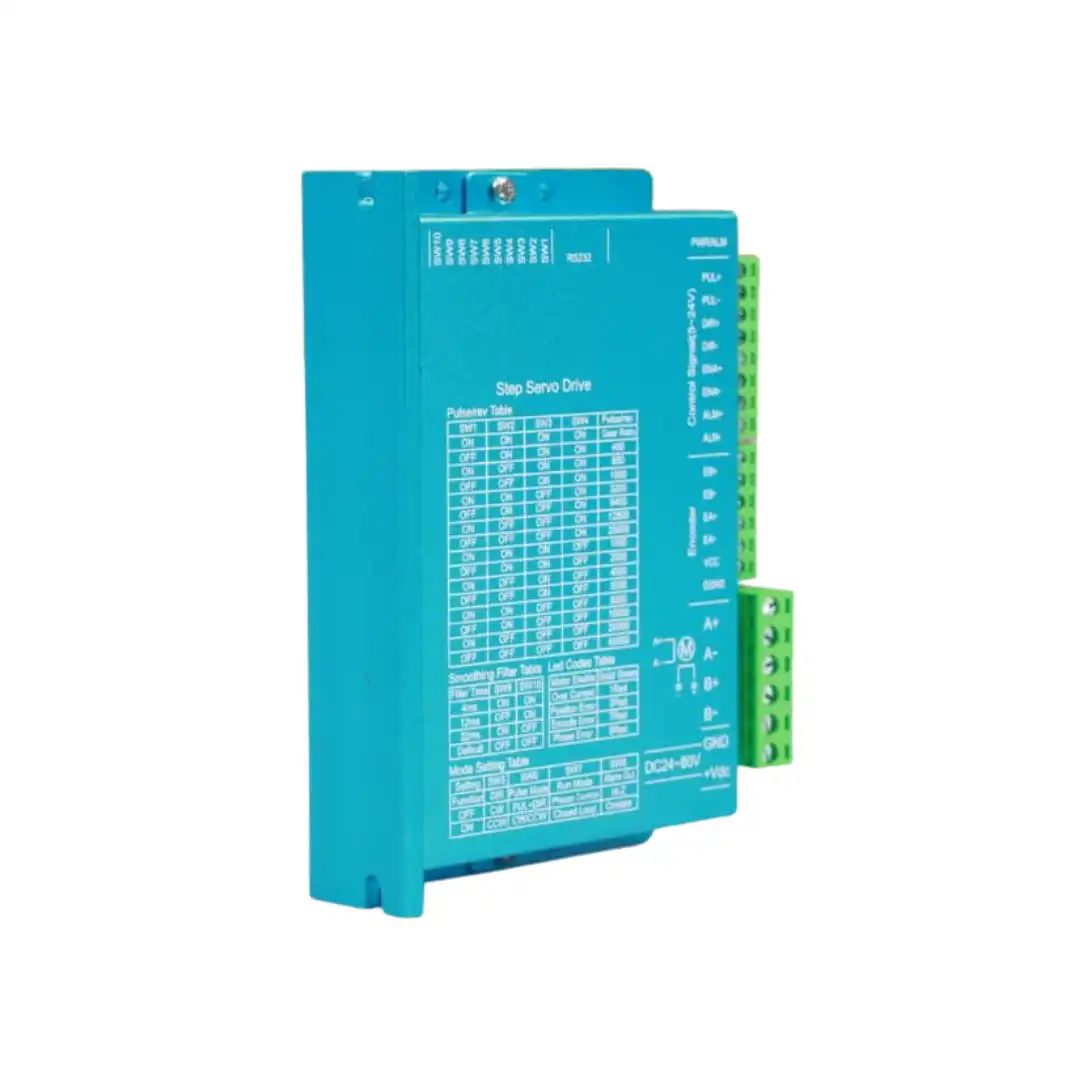

SL57D – Digital Step Servo Driver - Image 2

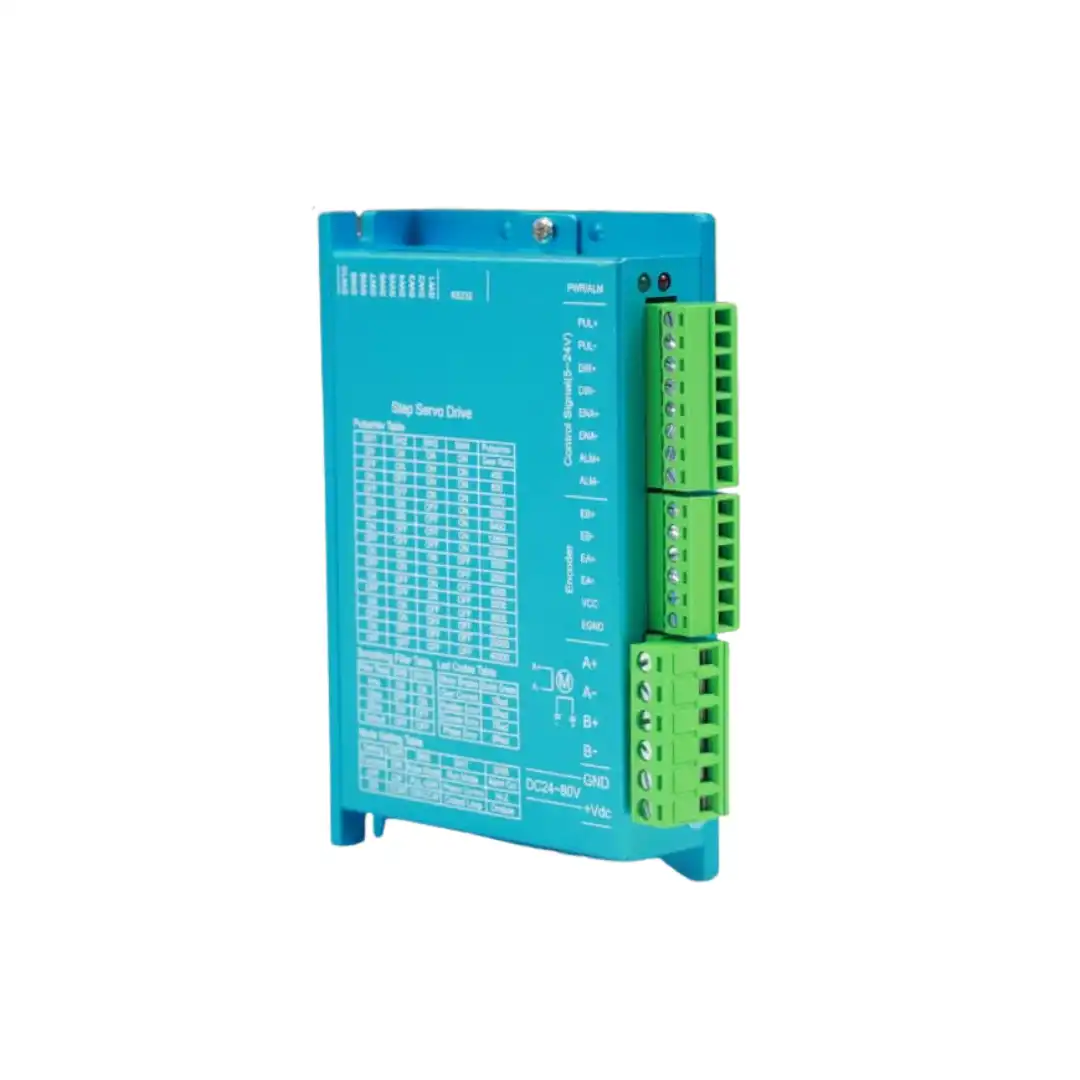

SL57D – Digital Step Servo Driver - Image 3
SL57D – Digital Step Servo Driver - Image 4

SL57D – Digital Step Servo Driver

SL57D Step Servo Driver | DC 24V-80V | 0.4A-6.0A | 51200 PPR Microstep

Category: Tags:, , , , , , , , , , , , , , Brand:

Description

SL57D is a compact digital step-servo driver developed using advanced vector control technology for precise and stable motion control. It is designed to drive 57 series and 60 series hybrid stepper motors and supports both closed-loop and phasor control operation. The driver offers a wide output current range from 0.4A to 6.0A per phase and provides high-resolution microstepping up to 51200 pulses per revolution. With opto-isolated signal input/output, electronic gear ratio support, and high response frequency up to 200Kpps, it ensures smooth performance and accurate positioning. Built-in protection functions enhance reliability in continuous industrial applications.

Application:

  • CNC Machine Manufacturers
  • Automation Equipment Manufacturers
  • Packaging Machinery Industry
  • Robotics and Motion Control Systems
  • Electronics Assembly Machines
  • Textile and Printing Machinery
Product Specification
Parameter Specification
Model SL57D
Type Digital Step Servo Driver
Input Voltage DC 24V to 80V
Output Current 0.4A to 6.0A / Phase
Motor Compatibility 57 Series and 60 Series Stepper Motors
Microstepping 15 channels (Up to 51200 pulses/rev)
Highest Response Frequency 200 Kpps
Control Mode Position Control / Speed Control
Encoder Support Yes
Electronic Gear Ratio Supported
Signal Interface Opto-isolated I/O
Communication Interface RS232
Net Weight 240 g
Protection Functions Overheat, Overcurrent, Overvoltage, Overspeed, Position Deviation
