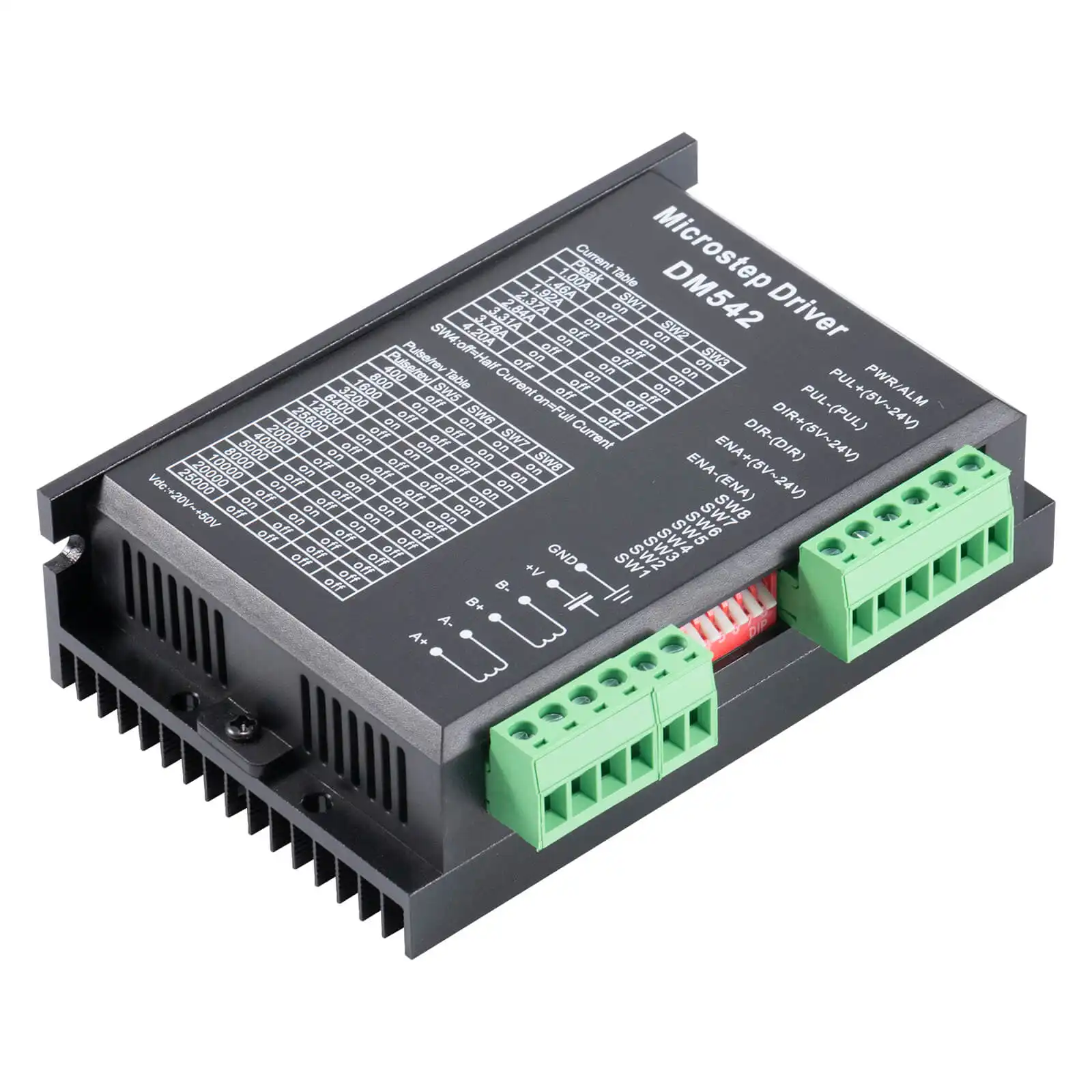

DM542 – 2 Phase Digital Stepper Motor Driver

DM542 Digital Stepper Driver | 24V-50V DC | 1.0A-4.2A | 16 Microstep

Category: Tags:, , , , , , , , , , , , , , , , , , , Brand:

Description

DM542 is a high-performance 2-phase digital stepper motor driver designed for smooth and accurate motion control. It supports 2-phase hybrid stepper motors and operates on DC 24V to 50V input supply with output current up to 4.2A. This driver features 16 segment microstepping, low vibration performance, and stable torque output for high precision applications. It also includes opto-isolated signal input/output and built-in protection against over-voltage, under-voltage, over-current, and short circuit conditions.

Application:

  • CNC Machine Manufacturers
  • Engraving Machine Industry
  • Packaging Machinery Industry
  • Automation Machine Manufacturers
  • Industrial Motion Control Systems
Product Specification
Parameter Specification
Model DM542
Driver Type 2 Phase Digital Stepper Motor Driver
Input Voltage DC 24V to 50V
Input Current Less than 4A
Output Current 1.0A to 4.2A
Microstepping 16 subdivision

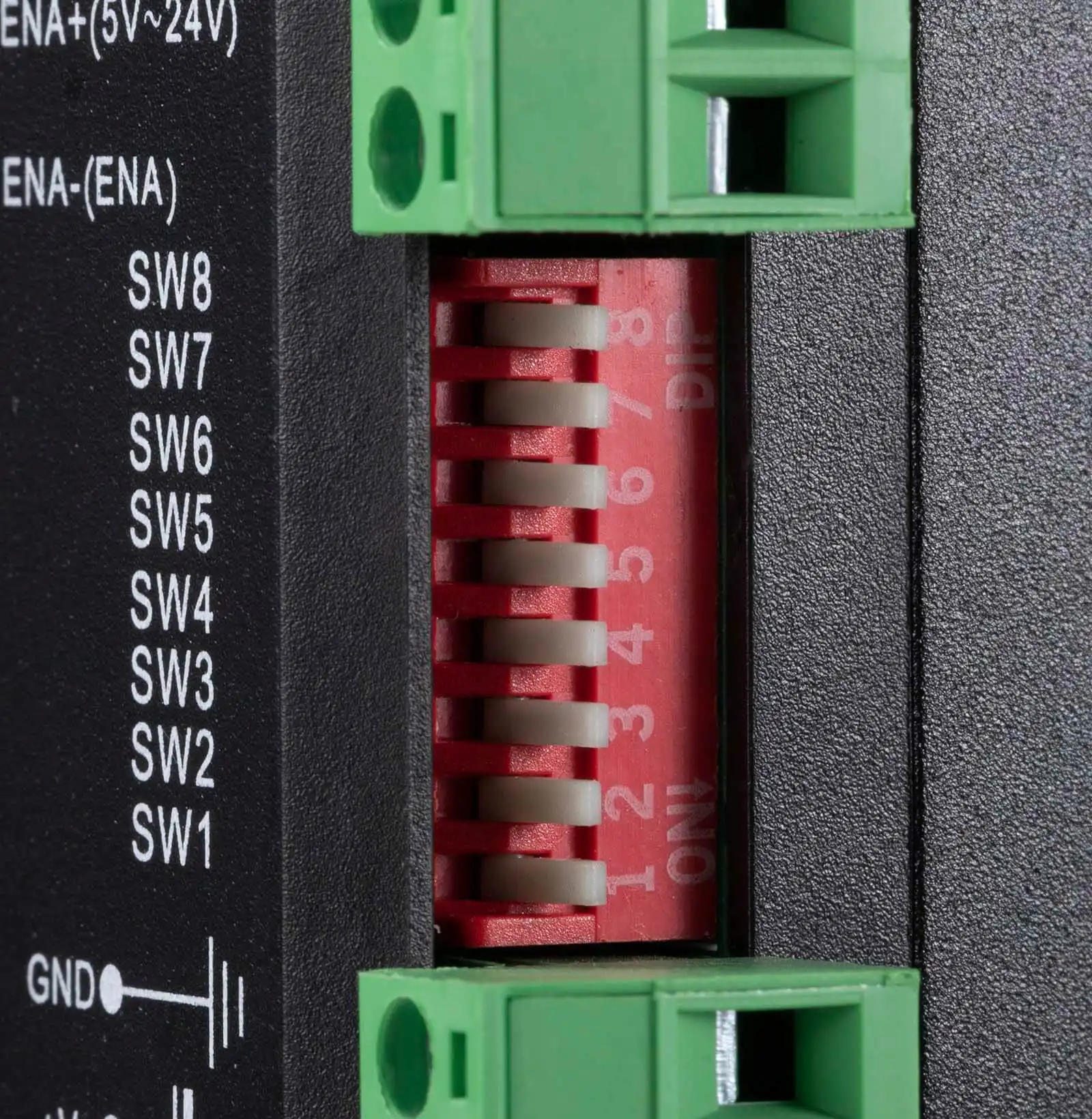

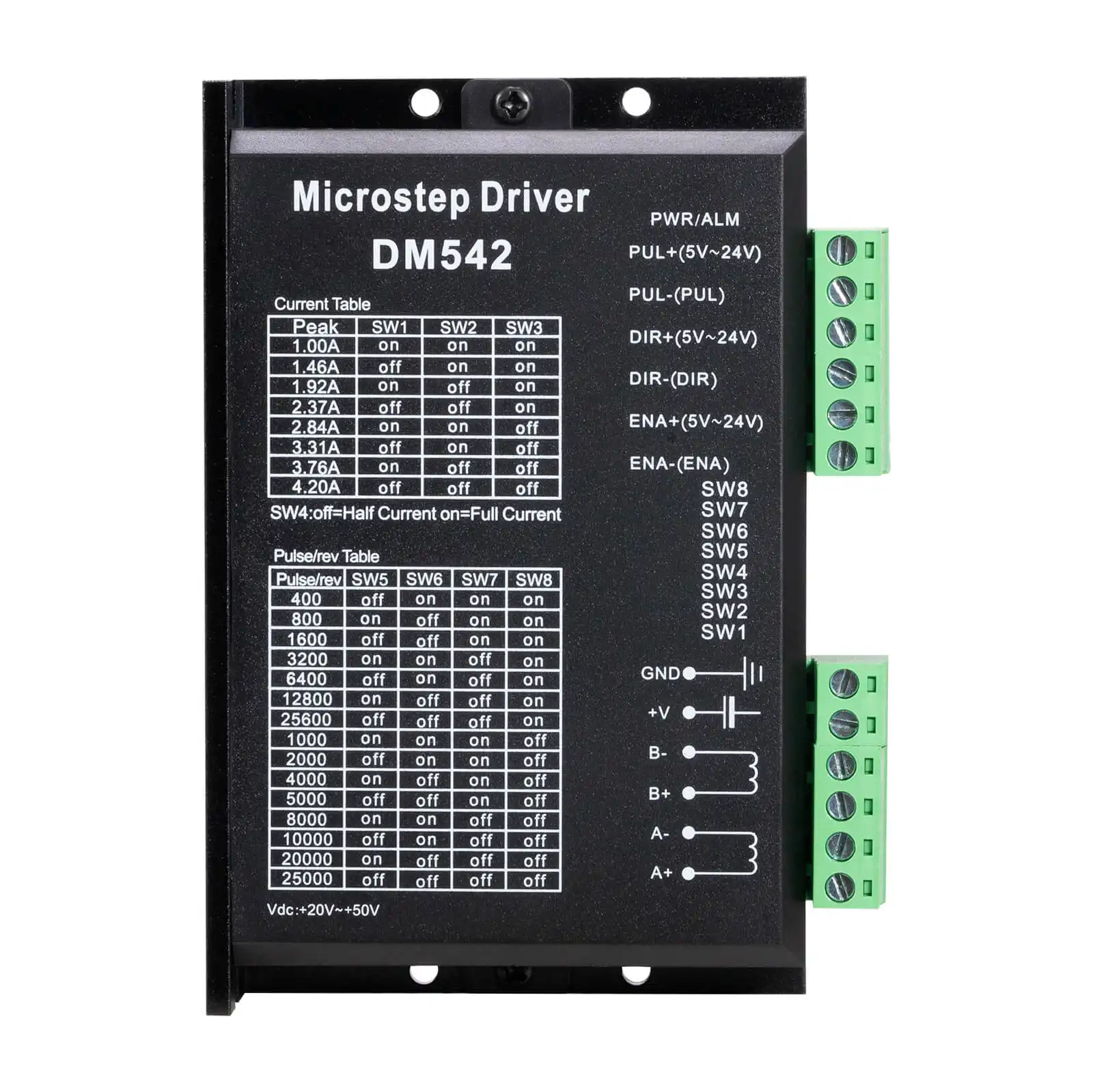

Pulse / Revolution 400 to 51200 (DIP Switch selectable)
Power Dissipation 80W
Internal Fuse 6A

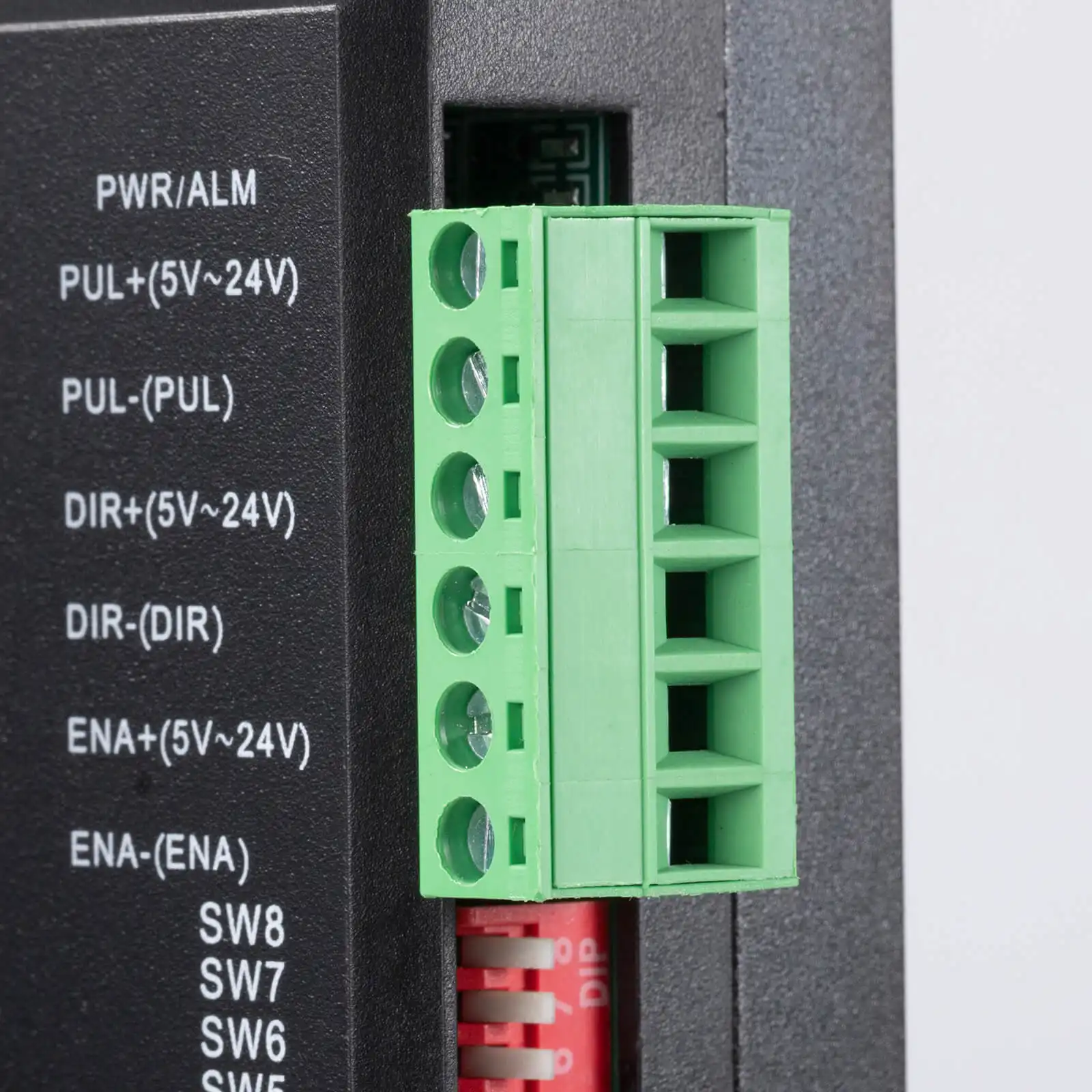

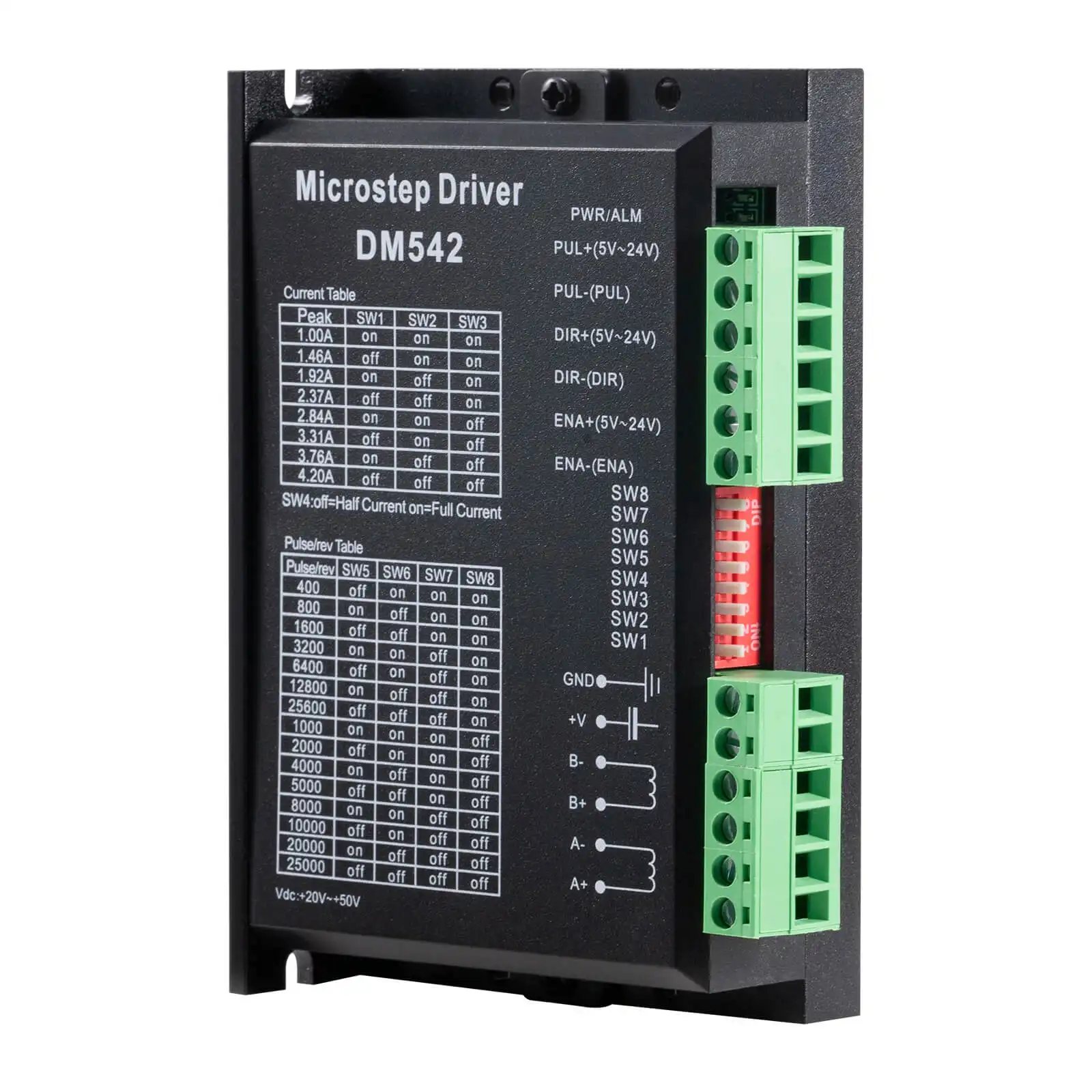

Control Signals PLS / DIR / ENA (Opto-isolated)
Motor Size Supported 42mm to 86mm
Working Temperature -10°C to 45°C
Storage Temperature -40°C to 70°C
Humidity No dew, no water
Weight 200g
