Product Specification
| Parameter | Specification |
|---|---|

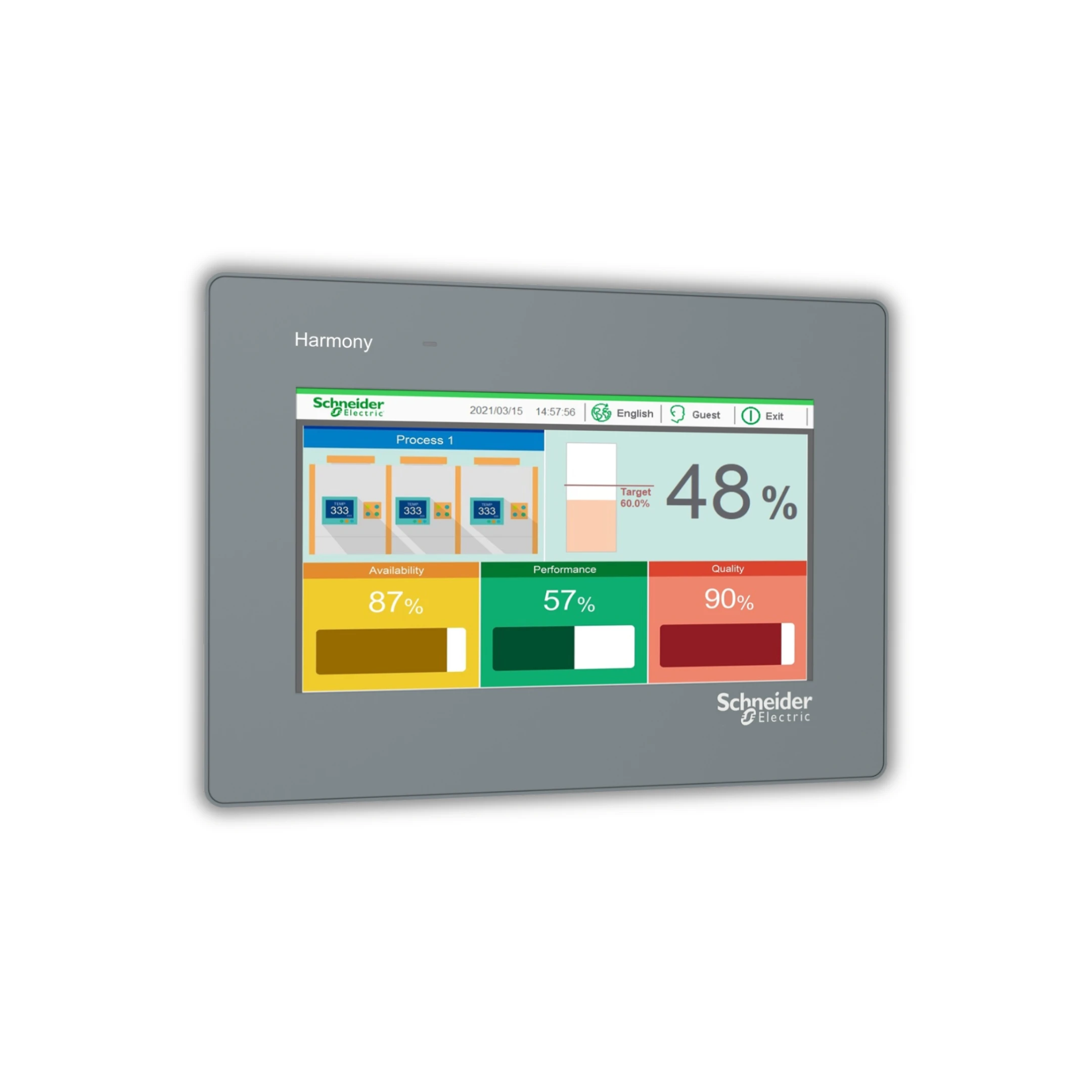

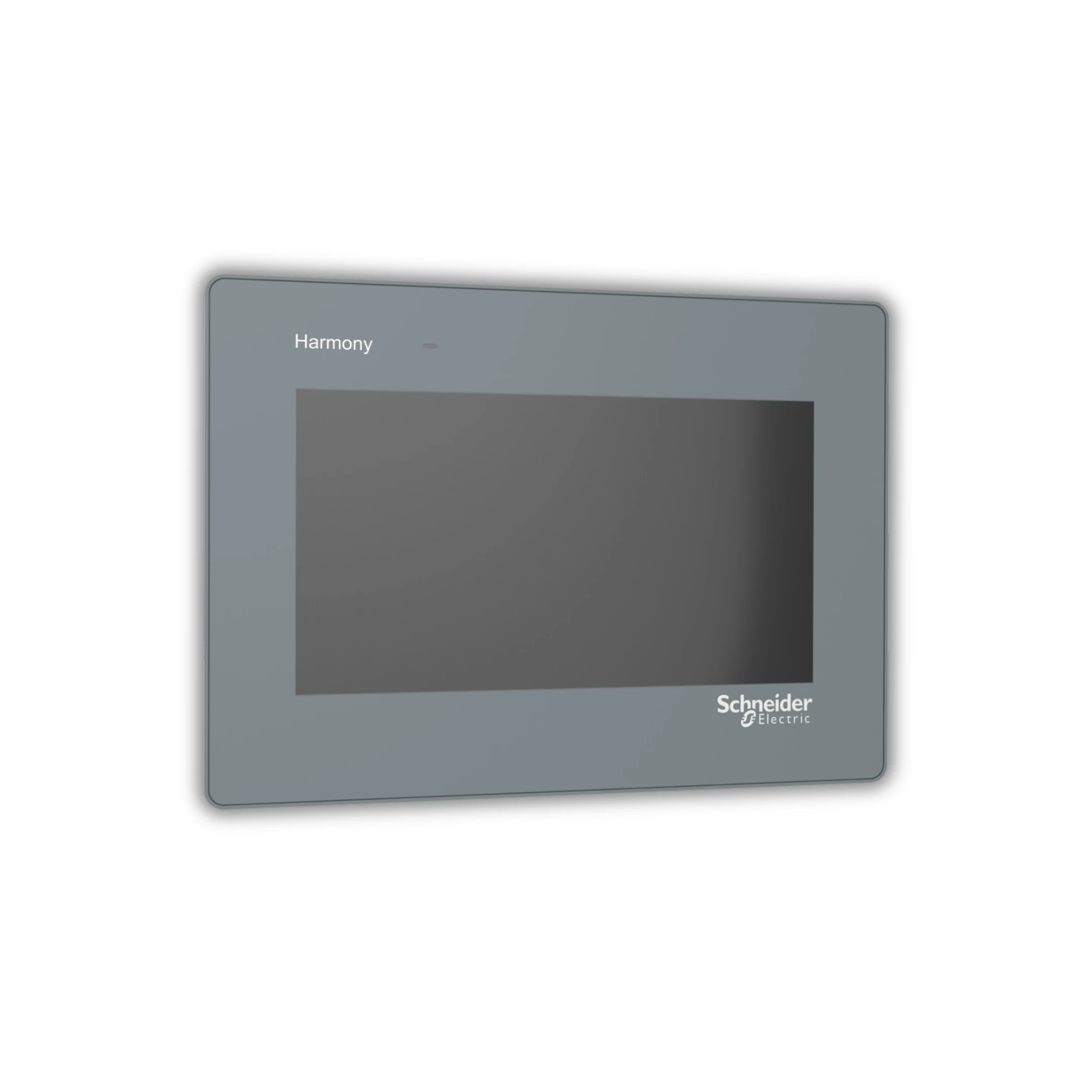

| Model | HMIET6401 |
| Series | Easy Harmony ET6 |
| Product Type | Touch Panel / HMI |
| Display Size | 7″ wide screen |
| Display Type | Colour TFT LCD |
| Display Colours | 16 million colours |
| Resolution | 800 × 480 pixels (WVGA) |
| Touch Panel | Single touch analogue resistive |
| Processor | ARM Cortex-A8 |
| Processor Frequency | 800 MHz |
| Software | Vijeo Designer Basic |
| Rated Supply Voltage | 24 V DC ±20 % |
| Power Consumption | 9 W |
| Communication Ports | COM1 (RS-232C), COM2 (RS-422/485), USB 2.0 Micro-B |
| Real-Time Clock | Built-in |
| Memory | 256 MB system/application, 128 KB backup |
| Brightness Levels | 16 levels |

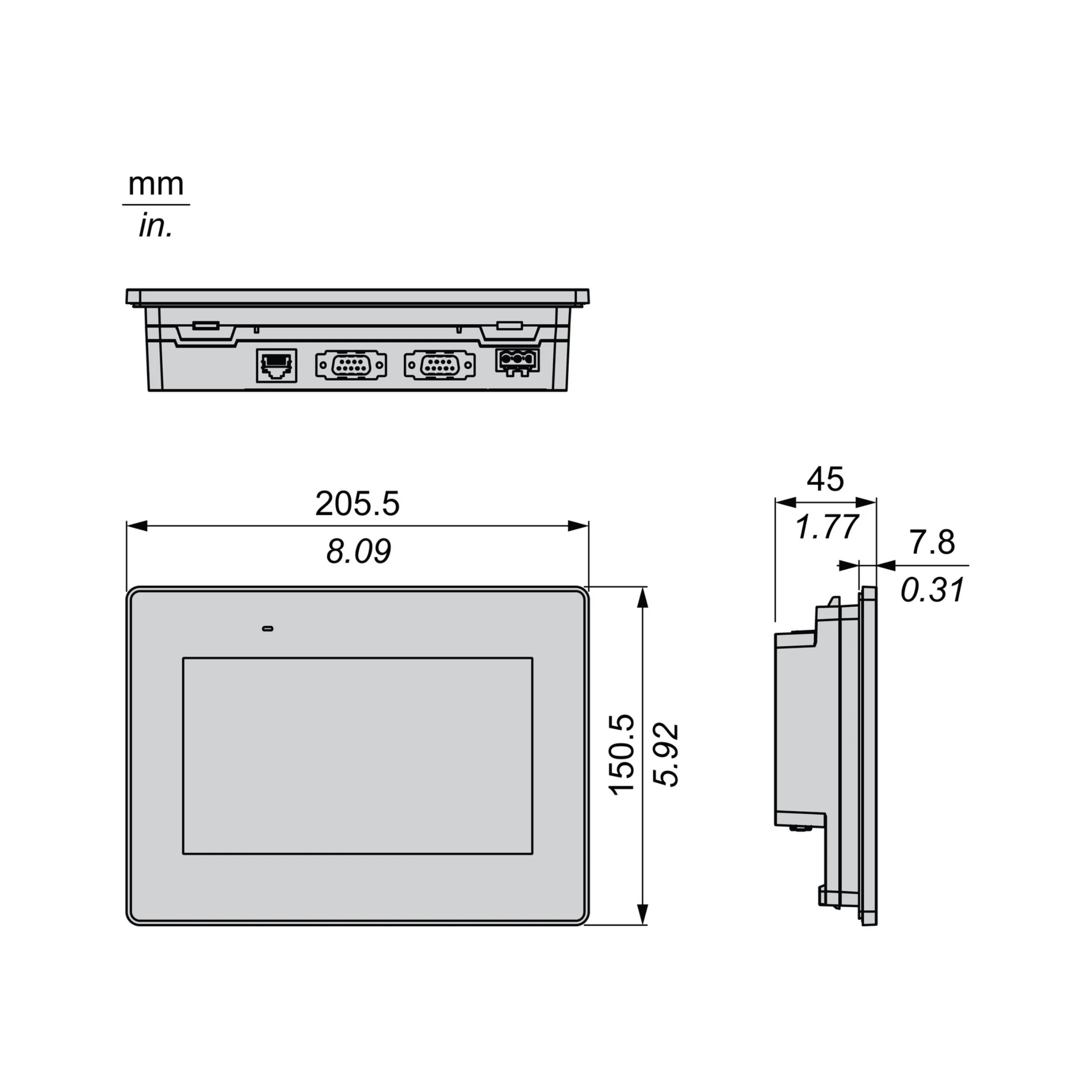

| Panel Cut-Out | 190 × 135 mm |
| Mounting | Panel mount (4 screws) |
| Protection Rating | IP65 (front), IP20 (rear) |
| Operating Temp | 0…50 °C |
| Storage Temp | −20…60 °C |
| Operating Humidity | 10…90 % non-condensing |
| Shock Resistance | 147 m/s² (11 ms) |
| Vibration Resistance | ±3.5 mm (5–9 Hz) / 9.8 m/s² (9–150 Hz) |
| Standards | IEC 61131-2, IEC 61010-2-201 |
| Certifications | CE, UL, EAC (pending), KC-Mark (pending) |
