Delta DOP-103BQ HMI | DC 24V | 4.3″ TFT | Serial + USB Connectivity

Categories:, Tags:, , , , , , , , , , , , , , , , Brand:

Description

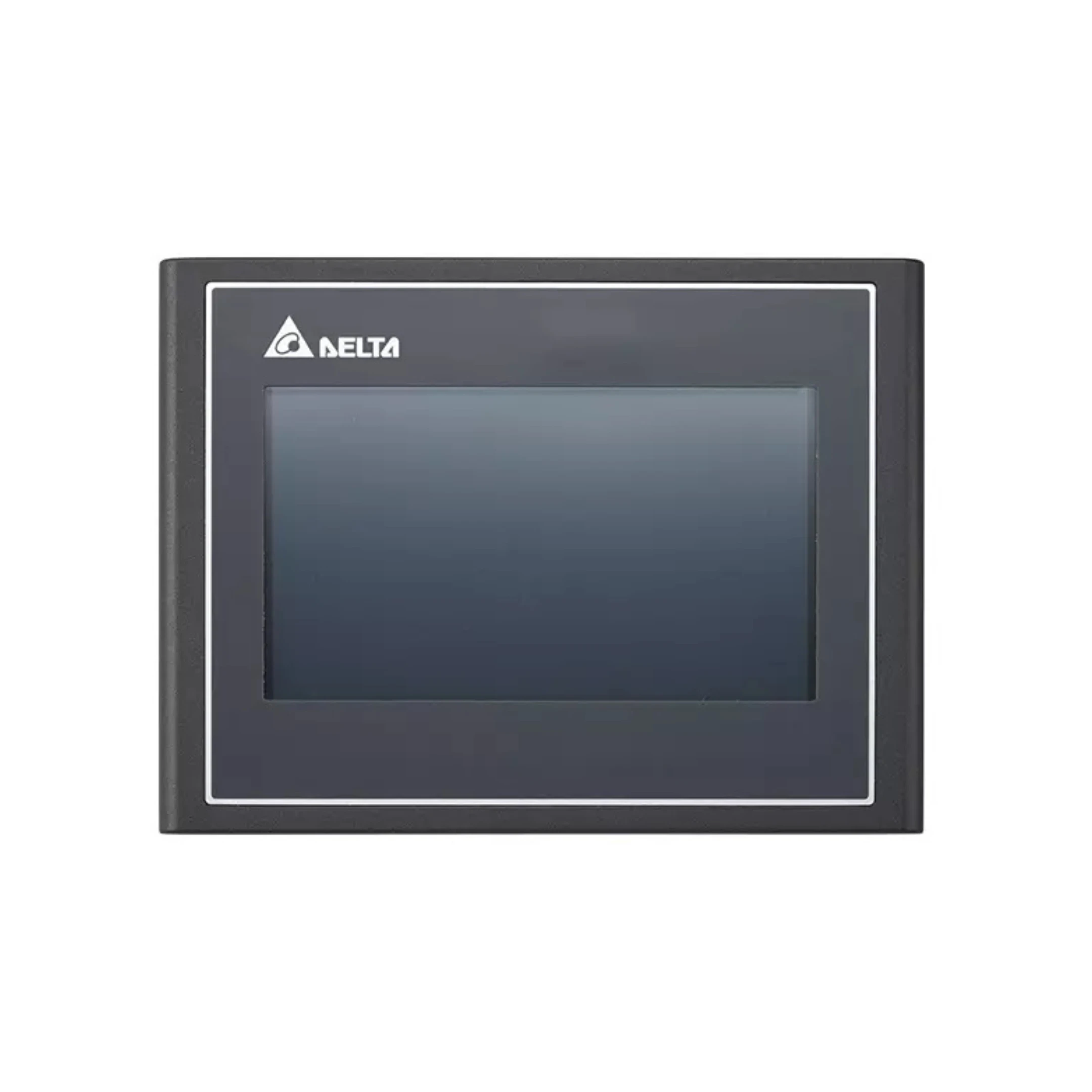

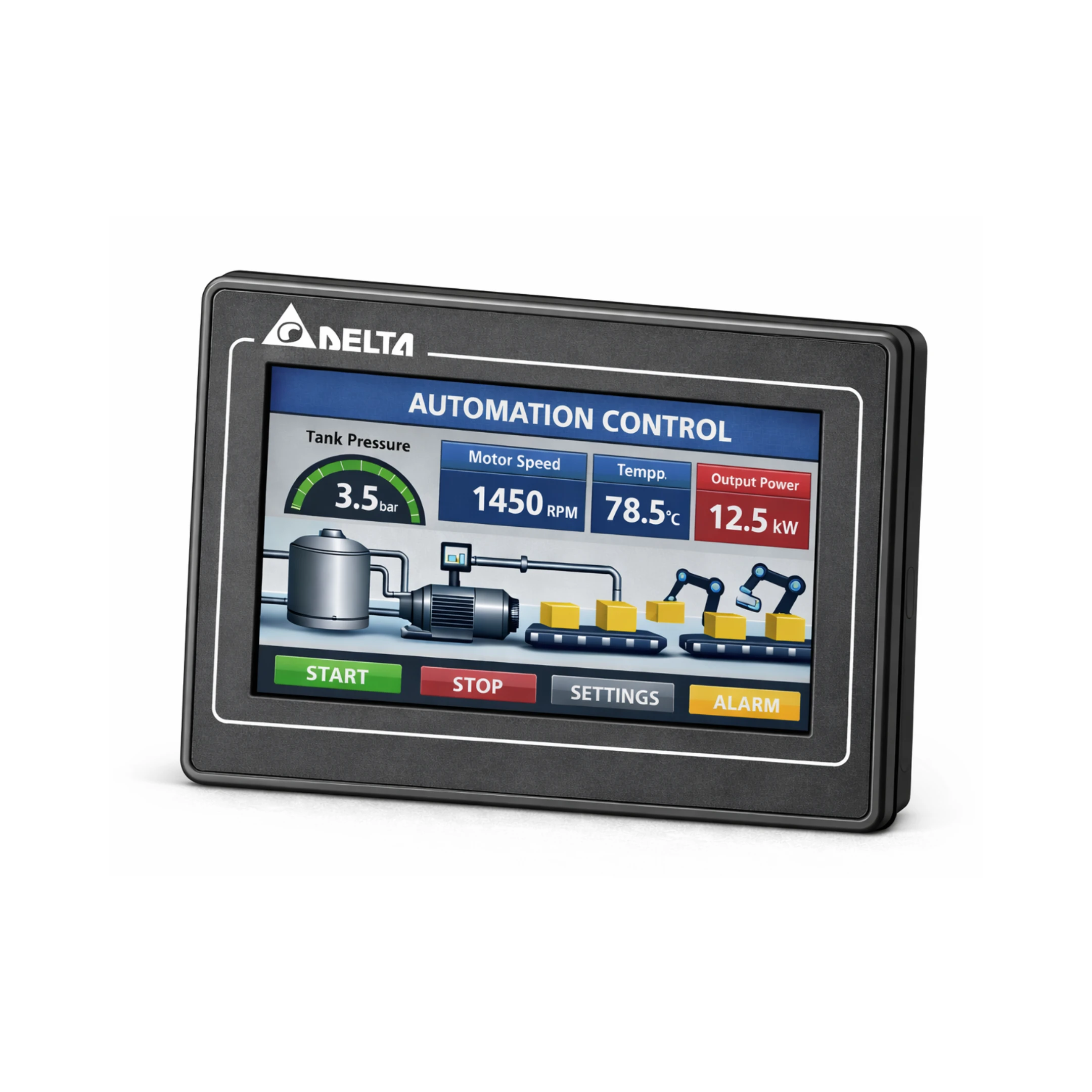

The Delta DOP-103BQ Human Machine Interface is a compact industrial touchscreen interface from the DOP-100 Series designed for operator interaction and process visualization. It features a 4.3-inch TFT display with 480×272 resolution and 65,536 colors for clear and responsive graphical feedback. Powered by a Cortex-A8 800 MHz CPU with 256 MB RAM and 256 MB ROM, the HMI delivers smooth performance for basic automation tasks. Multiple communication ports including serial (COM), USB Host, and USB Client provide flexible connectivity to PLCs and industrial equipment. Built to withstand industrial environments with IP65-rated front protection and wide operating temperature range, it suits diverse factory automation needs.

Application:

  • Machine Control & Monitoring
  • Packaging & Assembly Lines
  • Material Handling Systems
  • Factory Automation Panels
  • Process Visualization
  • OEM Equipment Interfaces
Product Specification
Parameter Specification
Model DOP-103BQ
Brand Delta

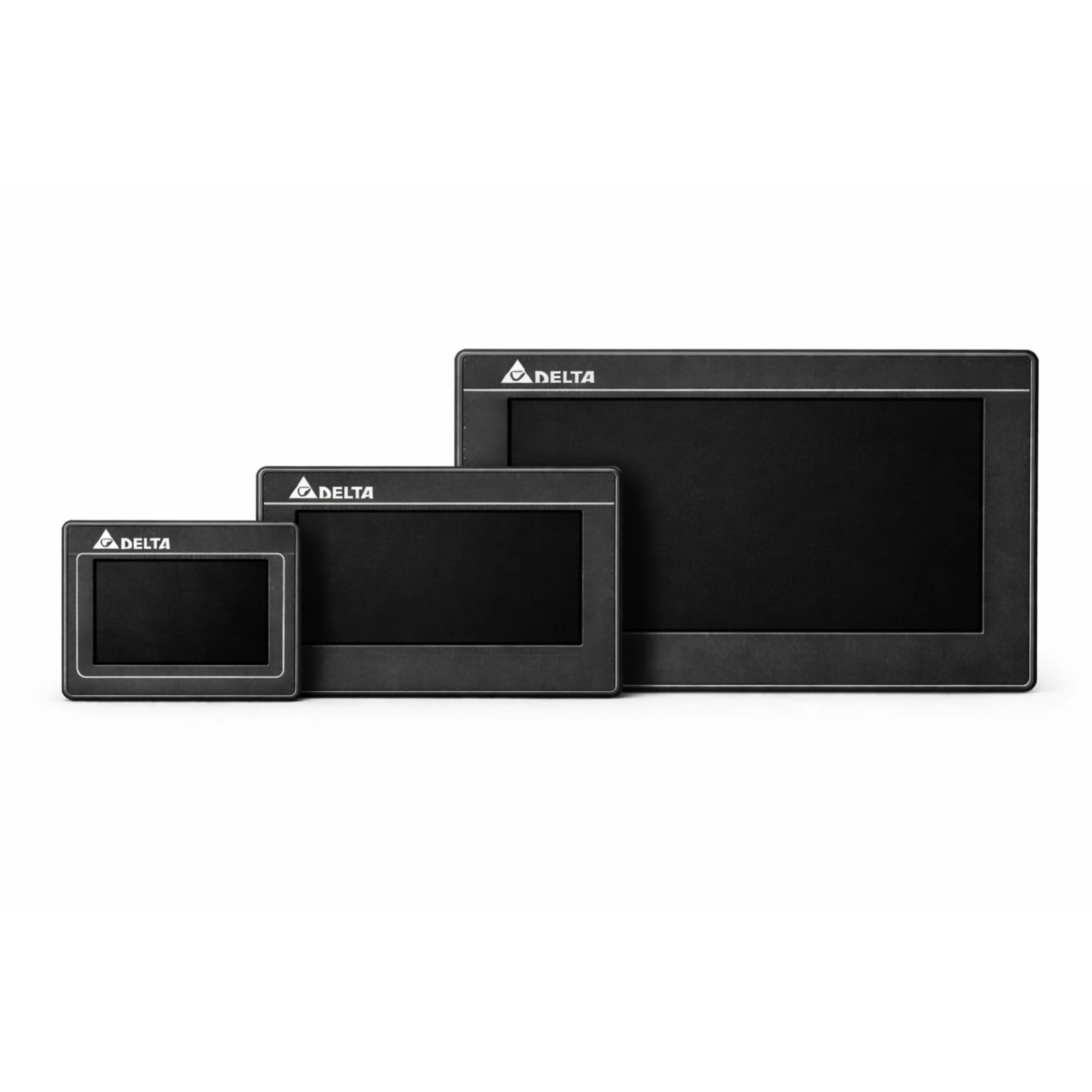

Series DOP-100 Series HMI
Type Human Machine Interface
Display Size 4.3″ TFT LCD
Resolution 480 × 272 pixels
Display Colors 65,536 Colors
CPU Cortex-A8, 800 MHz
RAM 256 MB
ROM 256 MB

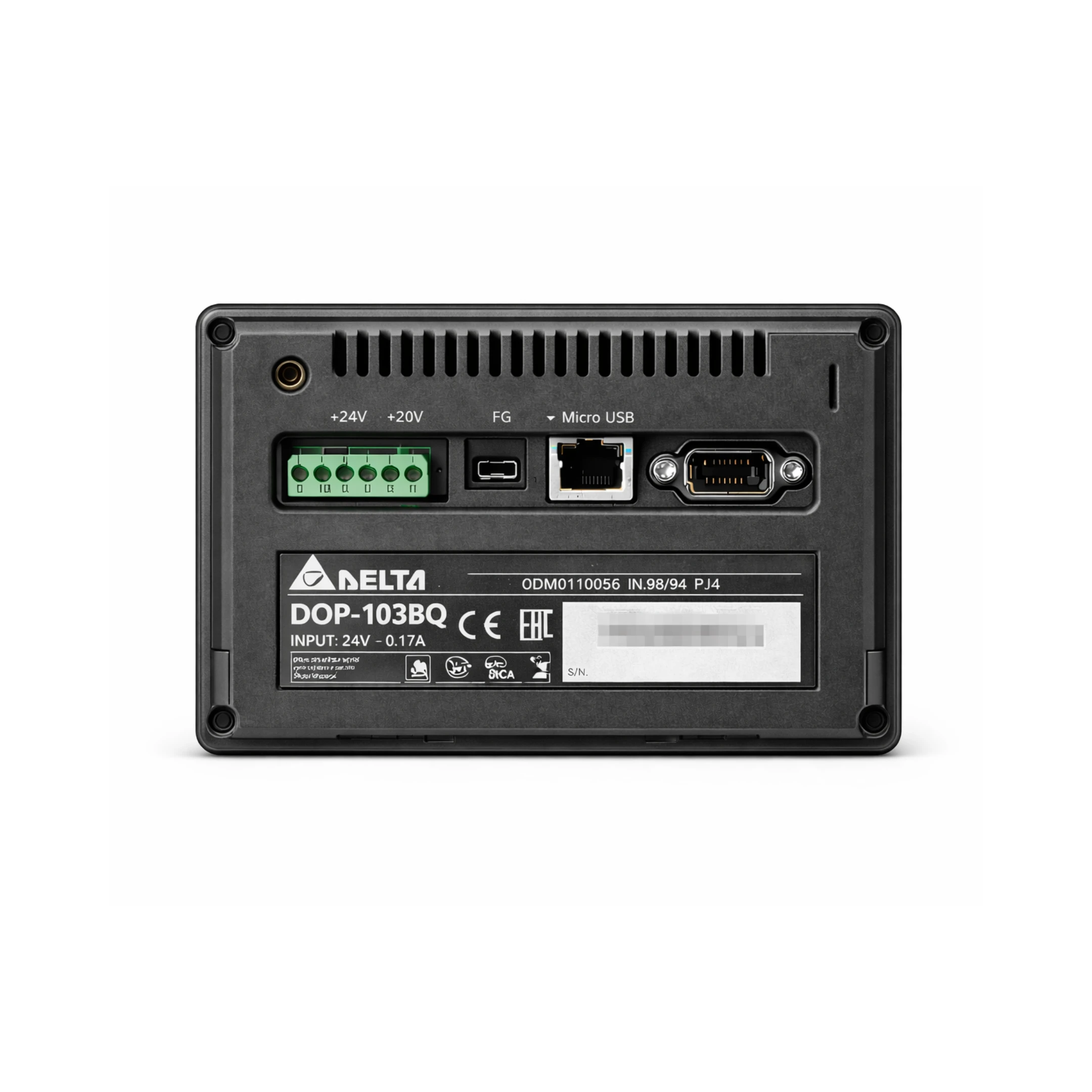

Serial Ports 2 × COM (supports RS-232/RS-422/RS-485)
USB Ports 1 × USB Host, 1 × USB Client
Touch Type Resistive Touch
Front Protection IP65 / NEMA4
Operating Temp 0 °C … 50 °C
Storage Temp –20 °C … 60 °C
Power Supply 24 V DC
Power Consumption ≤ ~5.7 W
Panel Cut-Out (W × H) 118.8 × 92.8 mm
Dimensions (W × H × D) 137 × 103 × 37.1 mm
Certifications CE, UL (industry standard)
