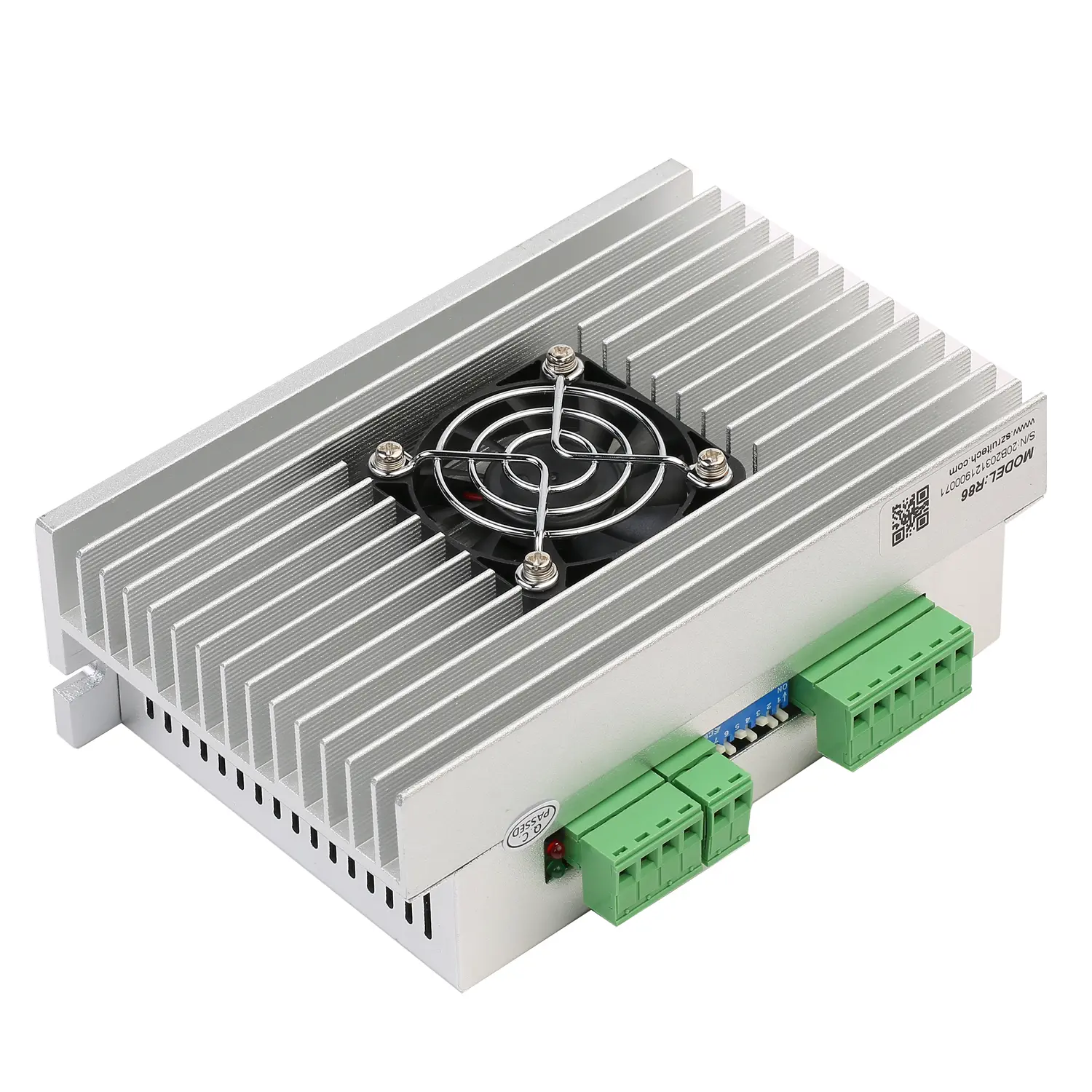

R86-IR – Digital Potentiometer Speed Control Stepper Driver

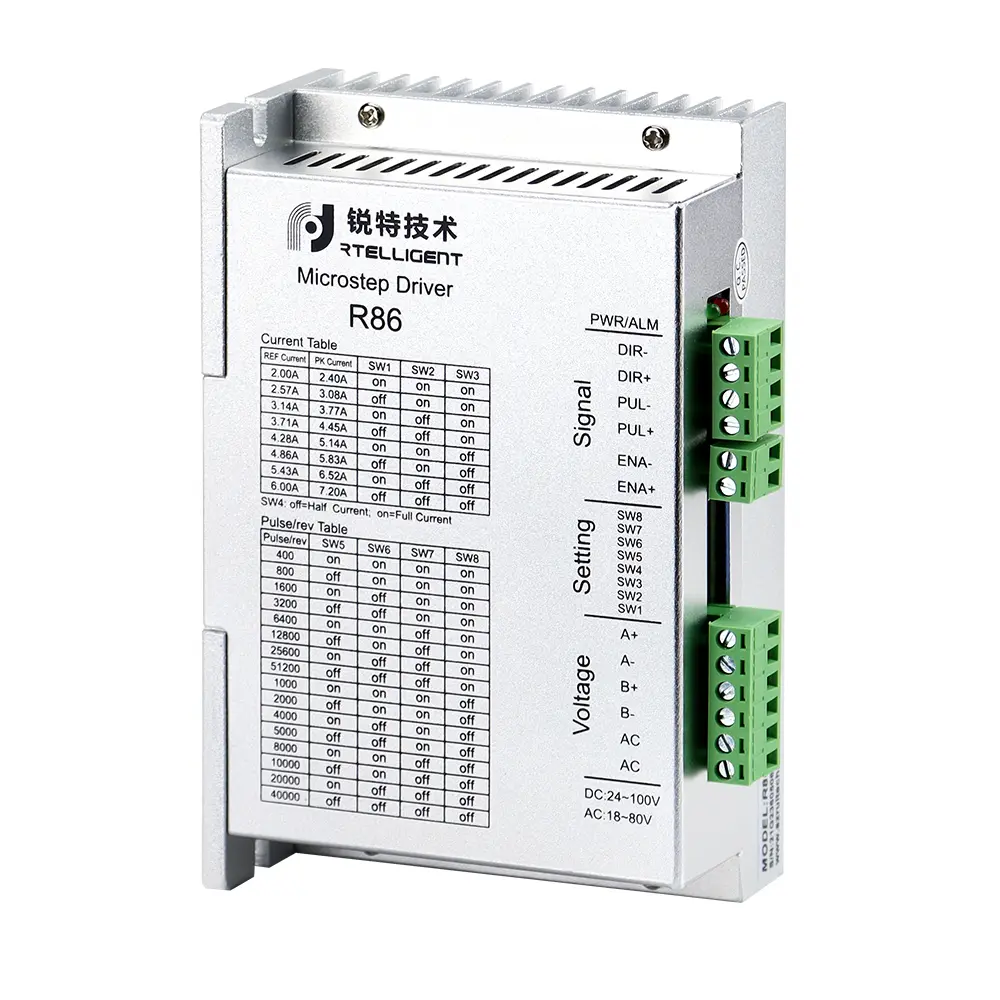

R86-IR – Digital Potentiometer Speed Control Stepper Driver - Image 2

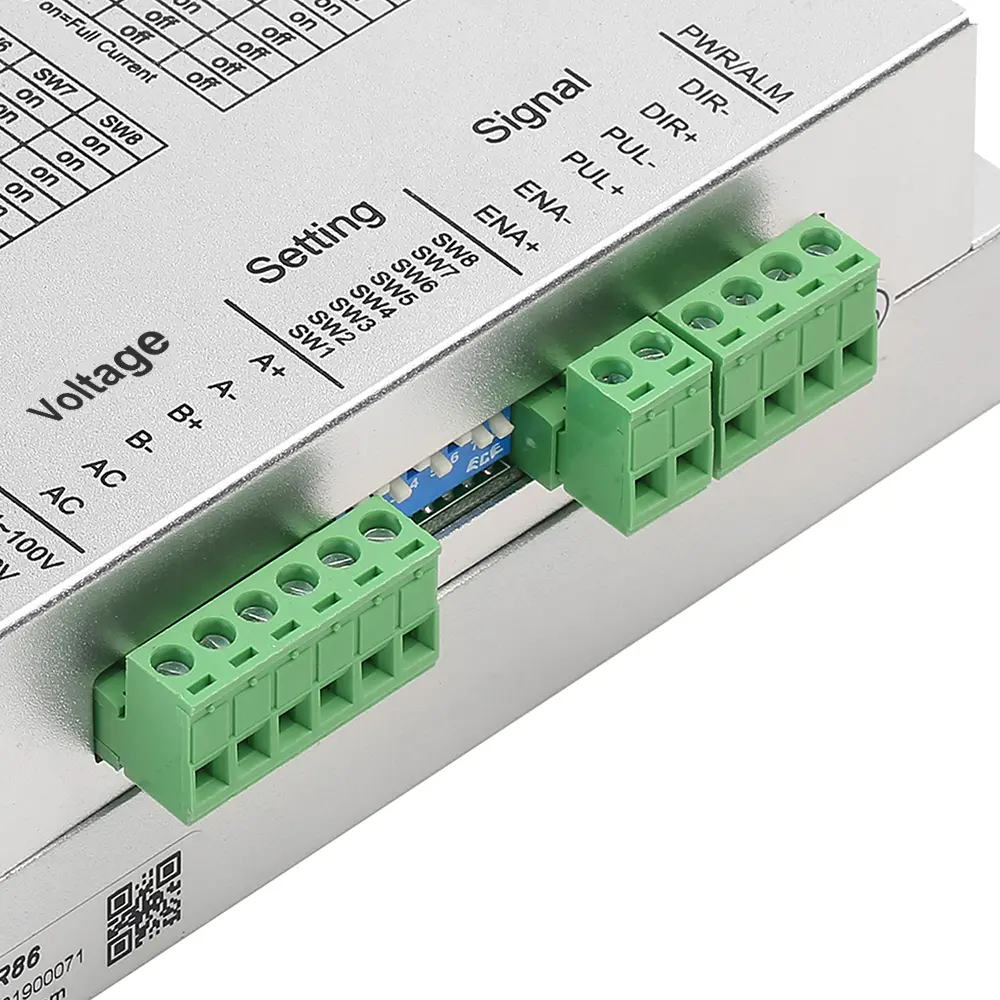

R86-IR – Digital Potentiometer Speed Control Stepper Driver - Image 3

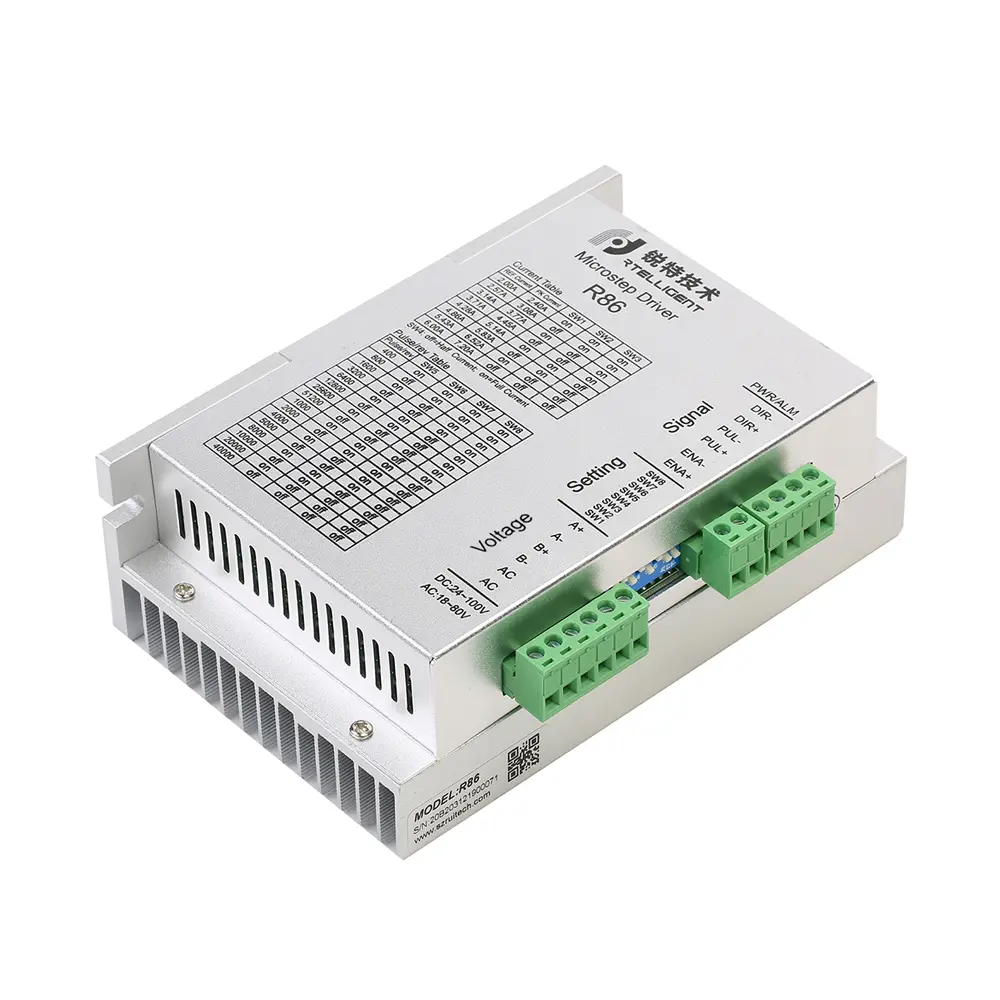

R86-IR – Digital Potentiometer Speed Control Stepper Driver - Image 4

R86-IR – Digital Potentiometer Speed Control Stepper Driver

R86-IR Stepper Driver | DC 24V-100V / AC 20V-80V | Up to 7.2A Peak | 16 Speed DIP Control

Category: Tags:, , , , , , , , , , , , , , , , , Brand:

Description

R86-IR is a high-performance digital stepper driver designed on a TI 32-bit DSP platform with an advanced PID current control algorithm for smooth and stable motor control. It supports wide input power range of DC 24V to 100V and AC 20V to 80V, making it suitable for high-power industrial stepper motor applications. The driver offers low noise, low vibration, low heating, and high-speed high-torque output with integrated micro-stepping technology. It provides 8 selectable current options up to 7.2A peak and 16 selectable speed settings with 2 acceleration options using DIP switch configuration. Built-in over-voltage, under-voltage, and over-current protection along with opto-isolated I/O ensures safe and reliable operation.

Application:

  • CNC Machine Manufacturers
  • Automation Equipment Manufacturers
  • Packaging Machinery Industry
  • Conveyor and Material Handling Systems
  • Textile and Printing Machinery
  • Special Purpose Machine Manufacturers
Product Specification
Parameter Specification
Model R86-IR
Type Digital Potentiometer Speed Control Stepper Driver
Input Voltage DC 24V to 100V / AC 20V to 80V
Output Current Up to 7.2A Peak (6.0A Average)
Current Setting 8 DIP Switch Options
Speed Setting 16 DIP Switch Speed Options
Speed Range Up to 3000 RPM (Motor Dependent)
Acceleration Selection 2 Gear Options
Current Control Algorithm PID Current Control
Resonance Suppression Automatic
Motor Parameter Adaptation Automatic Detection and Optimization
Pulse Filtering 2 MHz Digital Signal Filter
Neutral Current Automatic Current Halving
Control Signal Level 3.3V to 24V Compatible
Waterproof Grade IP54
Operating Temperature 0°C to 45°C
Storage Temperature -10°C to 70°C
Cooling Method Natural Cooling
Vibration 0.5G (4.9m/s²) Max
