Product Specification
| Parameter | Specification |
|---|---|

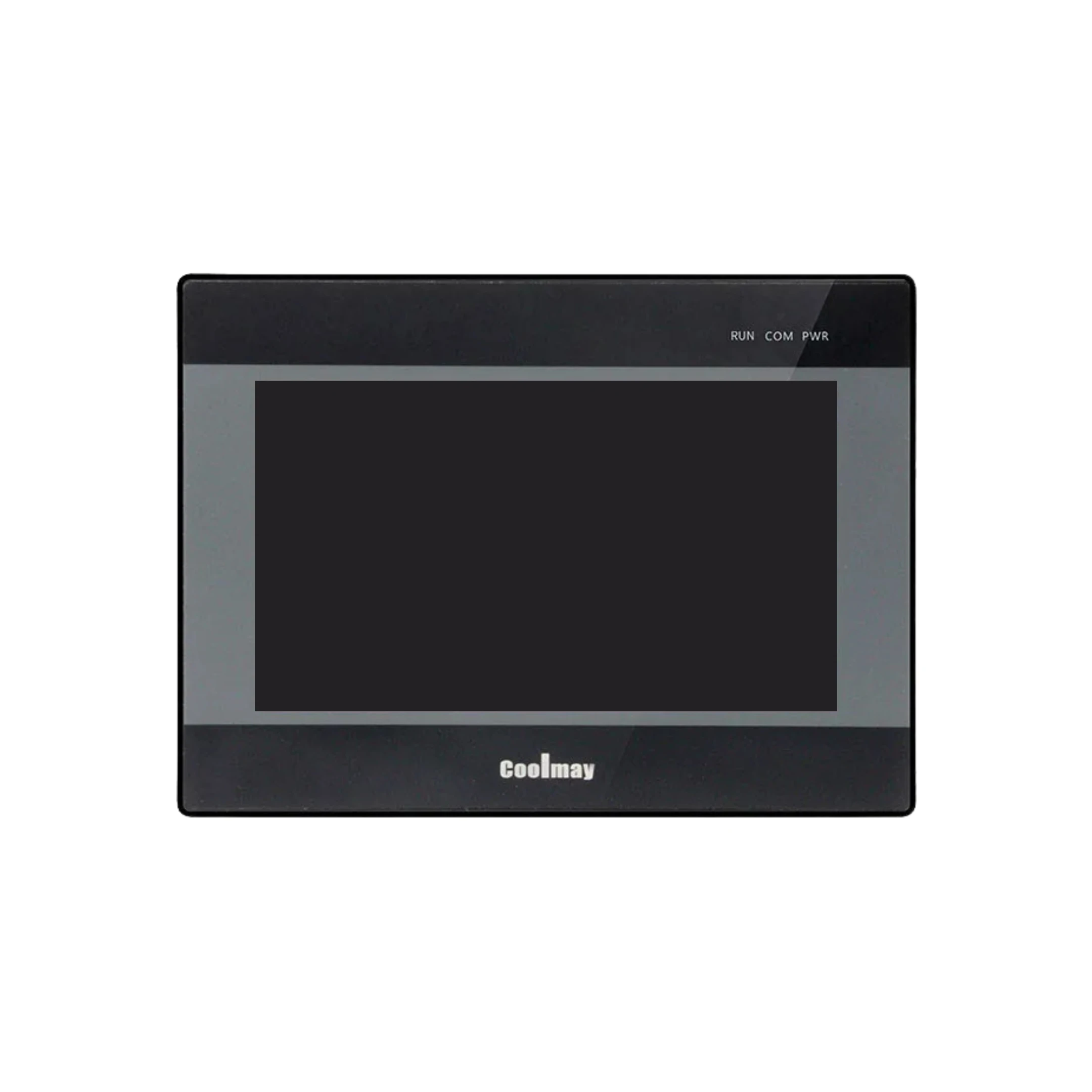

| Model | EX3S-70C-44MRT |
| Brand | Coolmay |
| Type | Integrated Touch Screen Controller |
| Power Supply | DC24V |
| Digital Inputs (DI) | 24 |
| Digital Outputs (DO) | 20 |
| Output Type | Mixed (Transistor + Relay) |
| Transistor Outputs | Y0-Y7 |
| Max Transistor Load | 0.5A per point |
| Relay Outputs | Y10-Y23 |
| Max Relay Load | 2A per point |
| Analog Inputs (AD) | 4 |
| Analog Outputs (DA) | 4 |

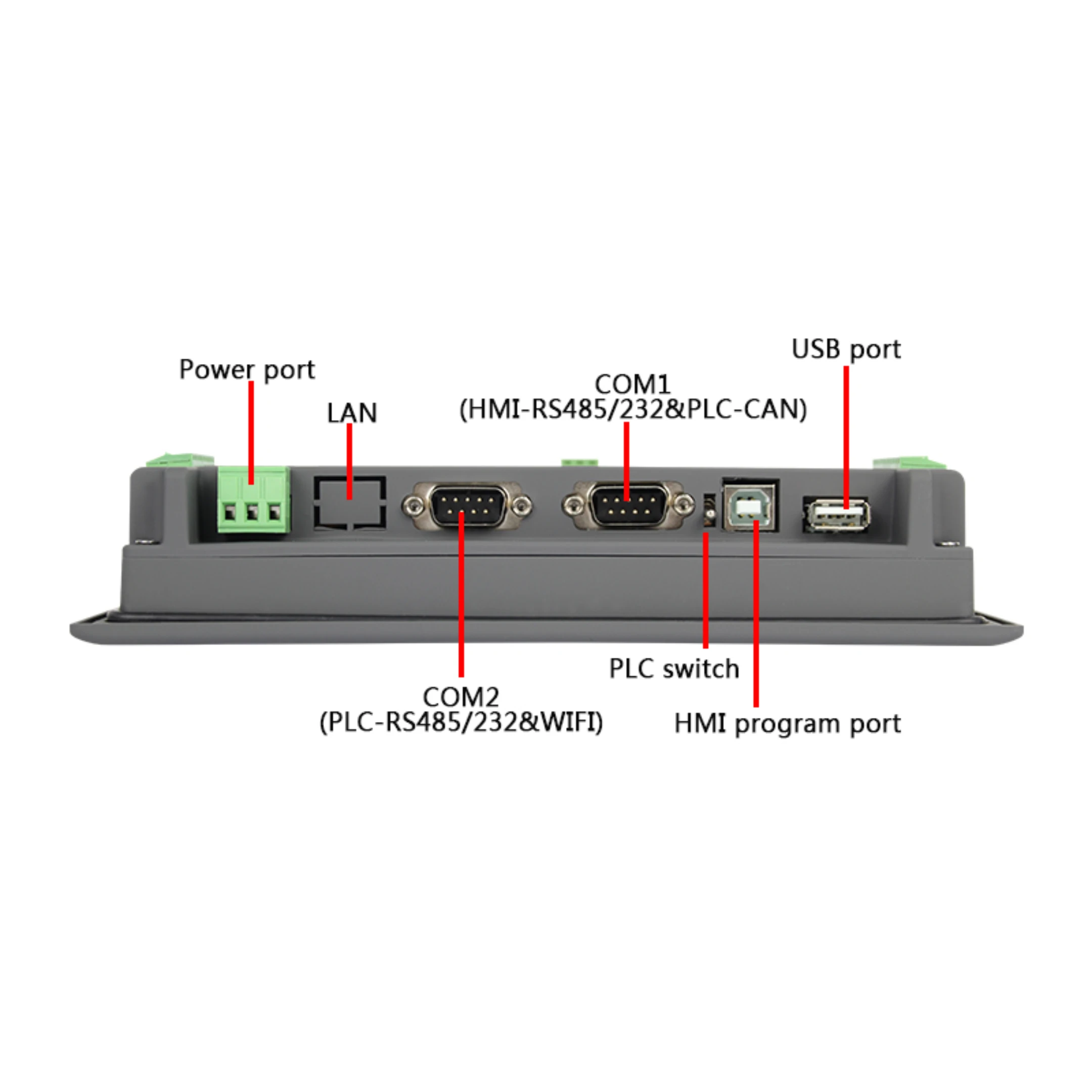

| HMI Communication | 1 × RS232 |
| PLC Communication | 1 × RS232 + 1 × RS485 |
| High-Speed Counting (Single Phase) | Conventional 4-channel, 200KHz |
| High-Speed Counting (AB Phase) | Conventional AB phase 4-channel, 200KHz |
| High-Speed Pulse Output | Conventional 4-channel Y0-Y3, 200KHz |
