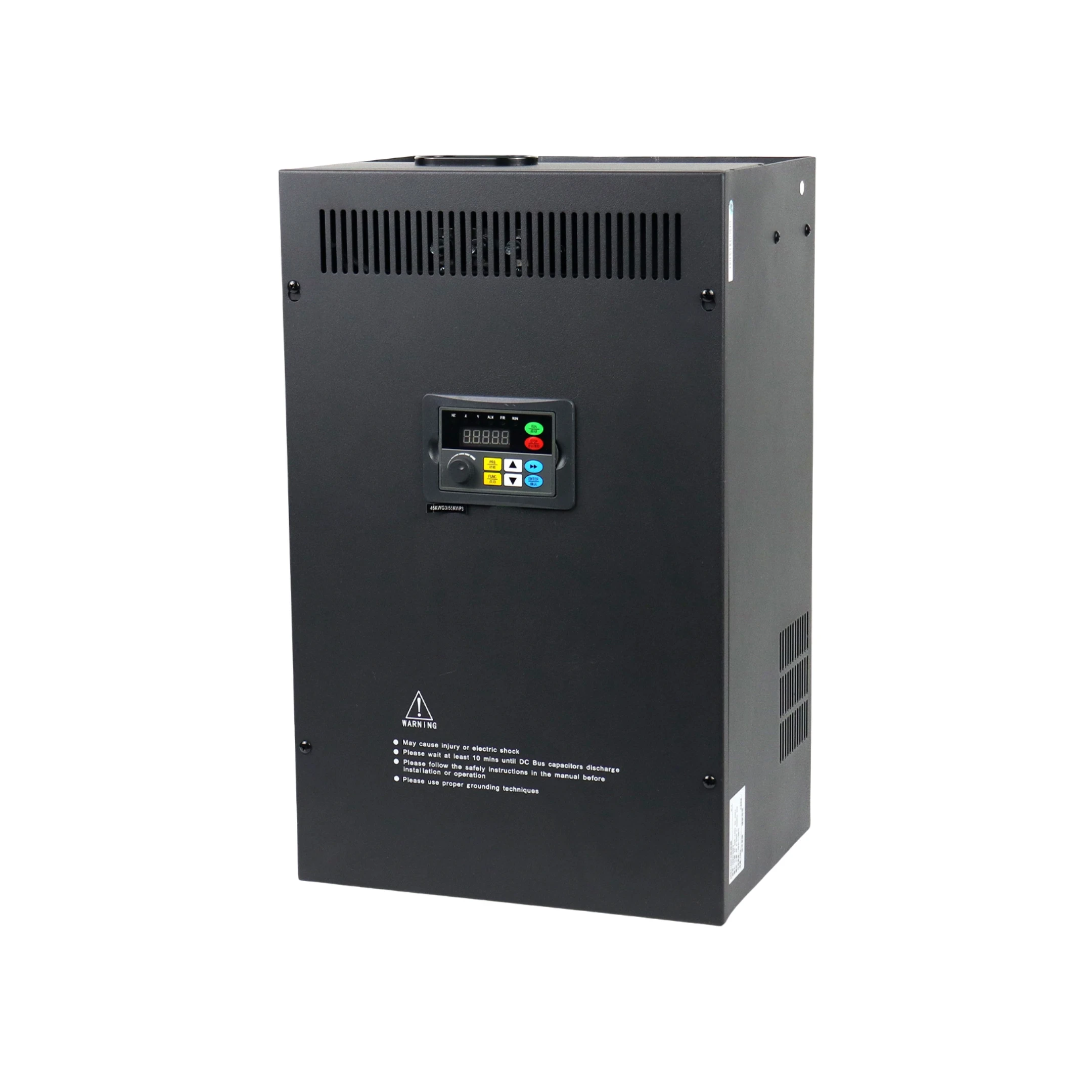

EX700-4T-45H – Heavy Duty AC Variable Frequency Drive

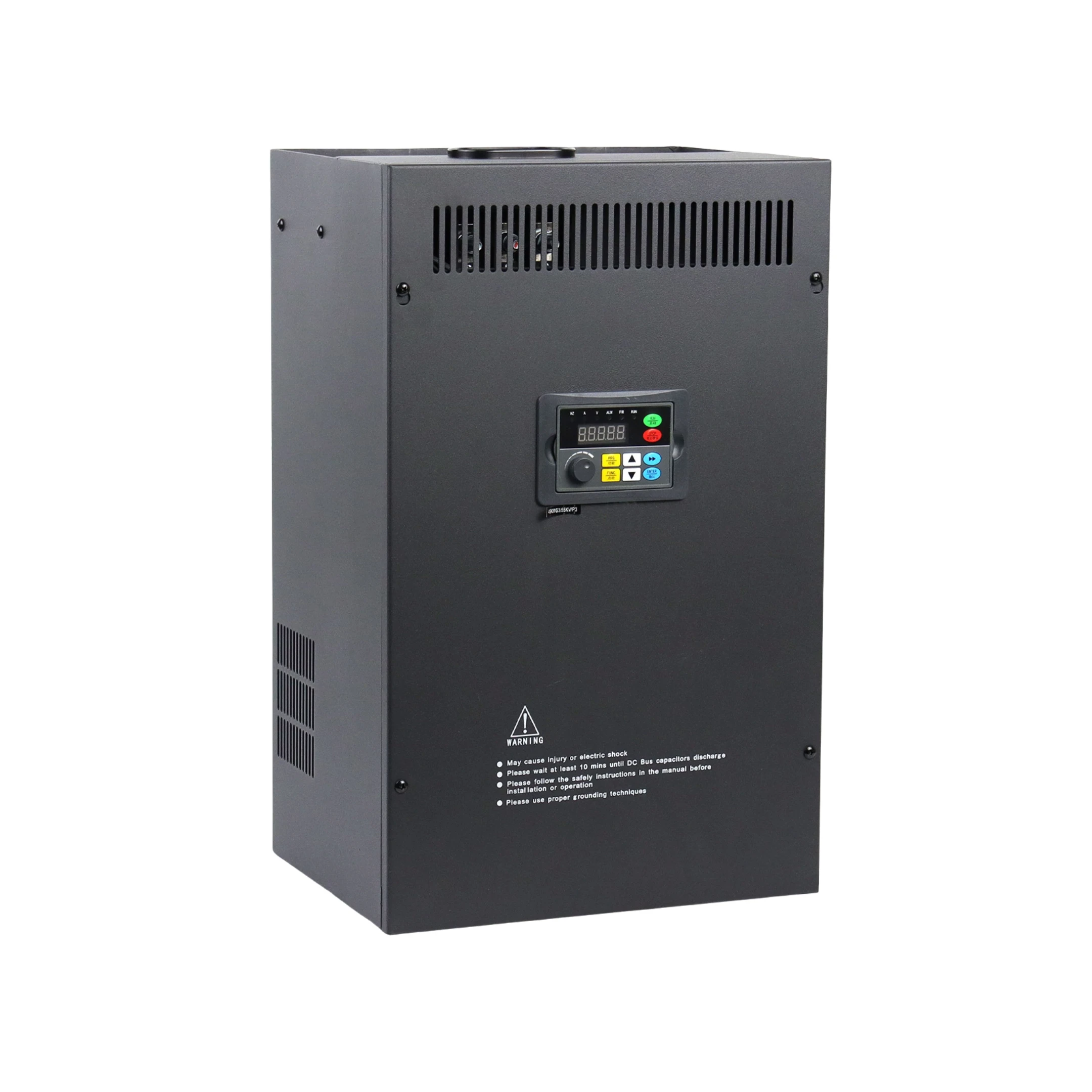

EX700-4T-45H – Heavy Duty AC Variable Frequency Drive - Image 2

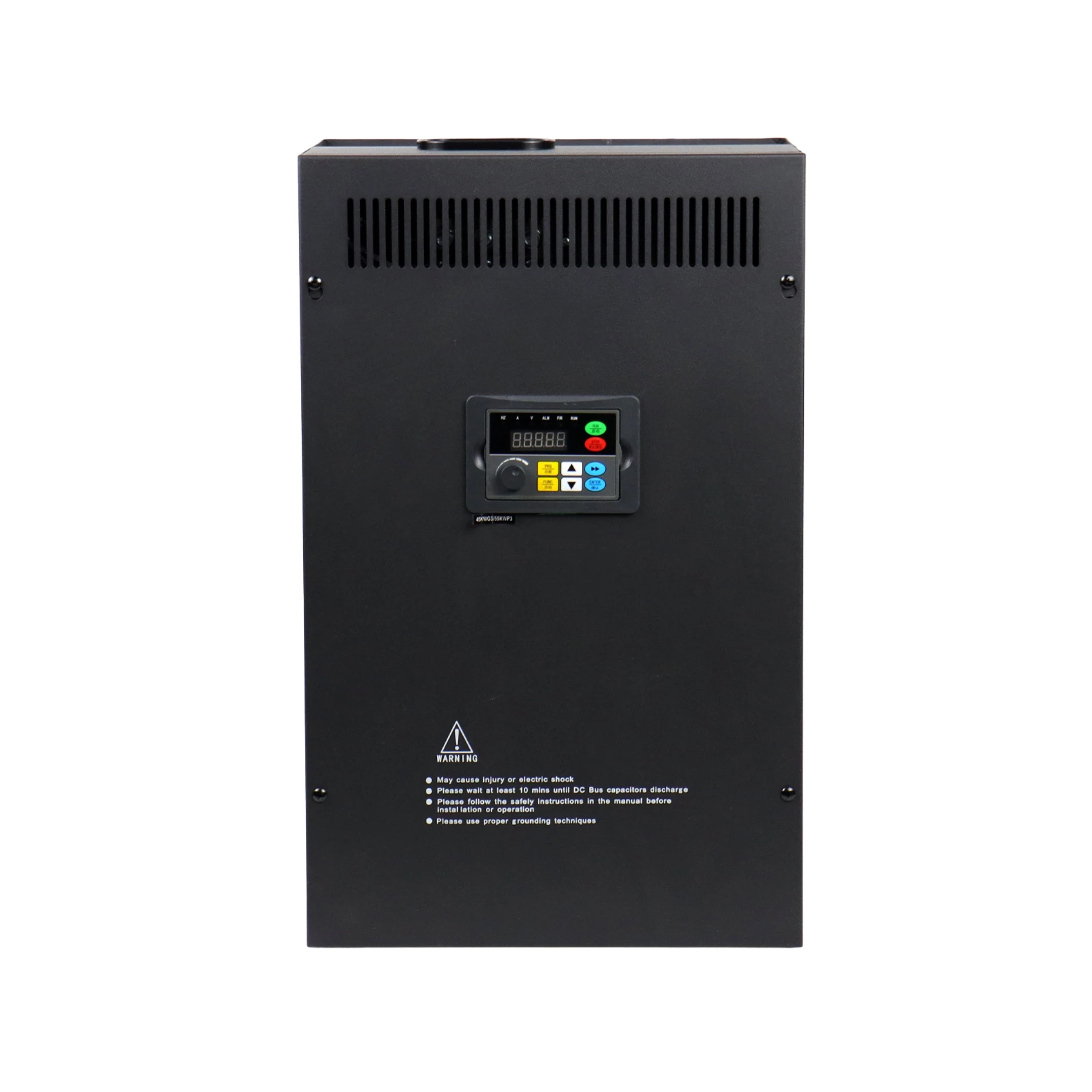

EX700-4T-45H – Heavy Duty AC Variable Frequency Drive - Image 3

EX700-4T-45H – Heavy Duty AC Variable Frequency Drive

EX700-4T-45H VFD | 3PH 340-440V | 45kW | 60HP Heavy Duty Drive

Categories:, , Tags:, , , , , , , , , , , , , , , , Brand:

Description

EX700-4T-45H is a high-capacity heavy-duty AC Variable Frequency Drive engineered for powerful and stable motor speed control in demanding industrial environments. It operates on 3-phase AC 340V to 440V input supply and delivers 3-phase AC 0 to 440V output for efficient motor performance. This model is rated at 45 kW with motor capacity of 60 HP and provides output current of 90A for heavy-load and continuous duty applications. It is ideal for large industrial machinery requiring high starting torque, stable operation, and long-term reliability. With advanced vector control technology and comprehensive protection functions, it ensures safe, energy-efficient, and high-performance motor control.

Application:

  • Packaging Machinery Industry
  • Conveyor Systems
  • Textile Machinery Industry
  • Pump and Fan Applications
  • Heavy Industrial Automation
  • Machine Manufacturers
Product Specification
Parameter Specification
Model EX700-4T-37H
Type Heavy Duty AC Variable Frequency Drive
Input Voltage 3PH AC 340V–440V
Output Voltage 3PH AC 0–440V
Input Frequency 50/60 Hz
Rated Power 37 kW
Adaptive Motor Power 50 HP
Output Current 75 A
Output Frequency Range 0.00 – 400.00 Hz
Control Method V/F Control / Vector Control
Overload Capacity Heavy Duty Performance
Communication RS485
Built-in Function PID Control
Cooling Structure Sealed Cooling Duct
Protection Functions Overcurrent, Overvoltage, Undervoltage, Overheat, Overload, Phase Loss, Short Circuit
Product Downloads
Product Catalogue
User Manual
